Selecting PCBs for RF and Microwave Applications

The selection sequence in order — application demands, four decisive parameters, material family matching, manufacturability and cost — closed out with the hardware validation that makes a selection stick.

Table of Contents

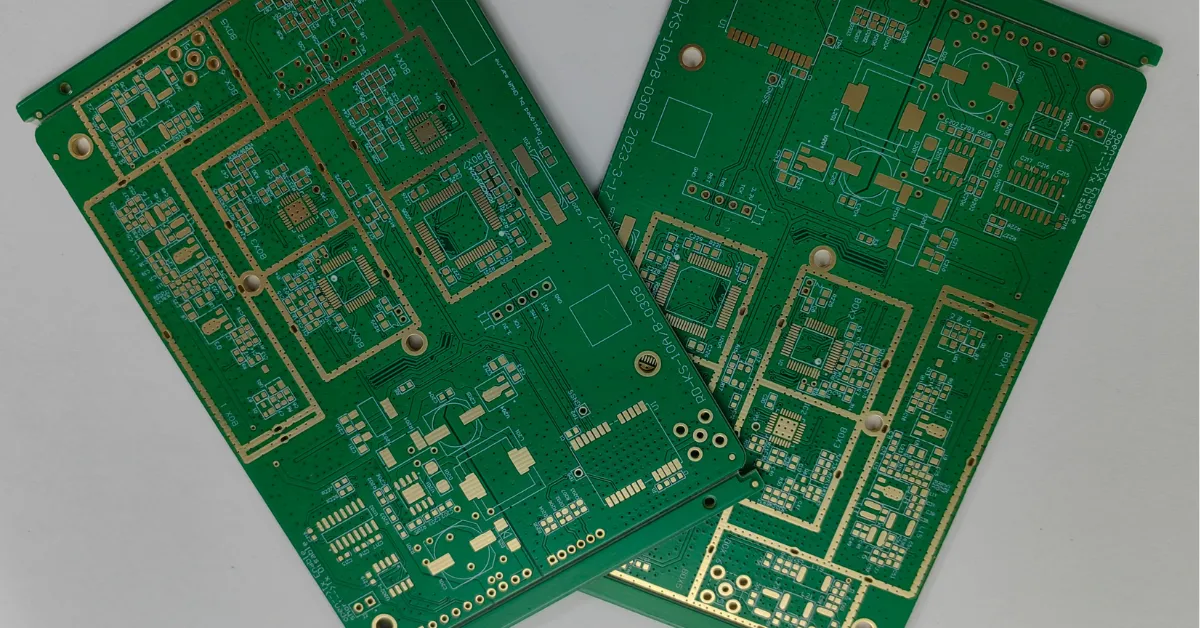

Selecting a PCB for an RF or microwave application is a sequence, not a spreadsheet: define what the application actually demands, translate those demands into four material parameters, match material families against them, then confront the result with manufacturability and cost reality. Teams that run the steps out of order — starting from a datasheet or a brand — end up either overpaying for unused headroom or discovering their loss budget was fiction. This guide runs the sequence.

Start From the Application, Not the Datasheet

The application fixes the boundary conditions before any material enters the discussion: operating frequency band, power level, environment, size constraints and volume. A 5G small-cell radio and a satellite payload both say RF, but they demand different things — the sector demands are profiled in the high-frequency PCB application sectors. Frequency is the master variable: it drives loss budget, geometry precision and material choice together, and it is why a selection made for 2.4 GHz cannot simply scale to 28 GHz.

The Four Parameters That Decide Everything

Every laminate reduces to four numbers in this decision. Dielectric constant sets trace geometry and size; dissipation factor sets how much signal survives the board; the temperature coefficient of Dk sets whether tuning survives the environment; and thermal properties set whether power devices cook their own substrate. Impedance control binds them all — the targets and tolerances come from the controlled impedance design rules. Write down the requirement for each parameter before opening a datasheet; the numbers become the filter that shortlists materials in minutes.

Matching Material Families to Use Cases

Three families cover most selections. Hydrocarbon-ceramic laminates, led by the RO4000 series overview, own the volume RF space below roughly 20 GHz for their processability. PTFE laminates such as RT/duroid 5880 take the lowest-loss and mmWave seats where the budget tolerates the processing. Glass-microfiber PTFE like Taconic’s TLY-5 millimeter-wave analysis covers phased arrays and satellite work. Within each family, grade selection follows the parameters, not brand loyalty — the worked example in the 5G RO4350B selection guide shows frequency and power deriving a grade end to end.

Manufacturability and Cost Reality

The best electrical match can still be the wrong choice if it triples the fabrication cost. PTFE demands plasma desmear and special lamination; hydrocarbon lines run on near-standard processes, which is precisely their market advantage. Check material availability and lead time at selection time, not at RFQ time, and note that cost differences between grades are often smaller than the processing differences they trigger.

Validate Before You Commit

Close the selection with hardware evidence: a test coupon in the candidate material, impedance measured per the high-frequency PCB testing workflow, and — for narrowband or mmWave work — a prototype stage of the actual circuit. A selection confirmed by measurement survives production; one confirmed by datasheet survives until the first lot.

Frequently Asked Questions

Frequently Asked Questions

Which parameter should drive material selection first?

Operating frequency. It determines the loss budget, the required geometry precision and which material families are even candidates — the other parameters refine within that constraint.

Is the most expensive laminate always the right choice?

No. Selection matches the material to the loss budget and environment; headroom beyond the requirement is paid for in material and processing cost with no return.

How do manufacturability differences affect the decision?

Significantly. PTFE demands plasma desmear and tuned lamination; hydrocarbon laminates run near-standard processes. Two electrically similar grades can differ materially in fabrication cost.

What validation should precede a production commitment?

A measured test coupon in the candidate material — impedance and loss on your stackup — plus a prototype stage for narrowband or mmWave circuits. Datasheet numbers are a starting filter, not a qualification.
