Controlled impedance is the discipline that keeps signal integrity intact in high-frequency PCB work: transmission lines are engineered so their characteristic impedance — typically 50 Ω or 75 Ω — stays within a specified band, because short wavelengths make even small discontinuities visible as reflection, distortion and lost power. Here is the design sequence that produces it.
Start by naming the target impedance and tolerance, because the application sets them: high-speed digital typically wants 50 Ω single-ended with 90 or 100 Ω differential pairs; RF work lives at 50 Ω; video systems expect 75 Ω. Everything downstream is calibrated against this decision.
Dielectric constant and dissipation factor shape the impedance directly, so material choice is an impedance decision. Common picks include Rogers RO4003C, RO4350B and PTFE-family laminates; the non-negotiable is that Dk stays stable across the operating frequency range. The laminate selection guide covers the trade-offs by brand.
Impedance falls out of geometry and the distance to the reference plane. Trace width moves impedance inversely — narrower raises it, wider lowers it. Dielectric thickness between trace and reference plane moves it the same direction: more separation, higher impedance. Differential-pair spacing sets the differential impedance, and a continuous, solid ground or power plane underneath is what keeps the whole system stable.
Electromagnetic tools — Ansys HFSS, Keysight ADS, Polar SI9000 — fine-tune trace width and spacing, then validate the result against the target value and tolerance before any copper is etched. Simulation here is cheap; a respin is not.
Four habits keep the designed impedance intact through layout. Keep trace width consistent along the route — any width step is a discontinuity. Minimise vias, because each one adds parasitic capacitance and inductance that bends the impedance locally. Replace 90° corners with 45° or curved bends to cut reflection. And match lengths plus constant spacing on differential pairs so the pair behaves as designed end to end.

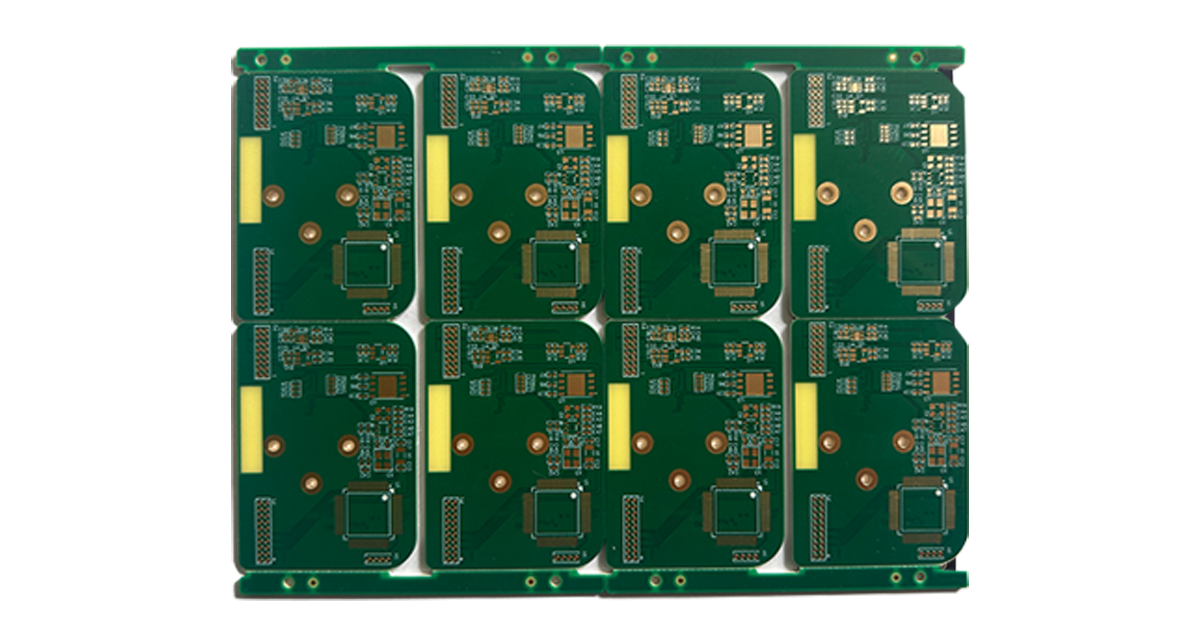

The design survives only if manufacturing holds its side. Etching must hit the specified line width and spacing with high accuracy; dielectric thickness must match the stack-up specification rather than drifting panel to panel; and surface treatment — typically ENIG or silver on high-frequency work — needs to keep signal loss and surface roughness in bounds. These are exactly the controls described in the impedance control production steps.
Two instruments close the loop. TDR (time domain reflectometry) measures impedance consistency by reading the reflections along the trace, and a vector network analyzer verifies transmission performance — insertion loss and return loss — against the design’s expectations. Boards that pass both are delivering the impedance the layout promised.
Controlled impedance is a chain with no weak links allowed: requirement, material, geometry, simulation, routing, fabrication and test each have to hold. Run the chain completely and 5G, radar, satellite and high-speed digital designs get the stable signal transmission they were modelled for — treat any link as optional and the first TDR plot will find the gap.
Frequently Asked Questions
50 ohms single-ended dominates RF and high-speed digital work, with 90 or 100 ohms for differential pairs and 75 ohms in video systems. The tolerance band matters as much as the target — agree it with your fabricator before layout freezes.
Trace width and dielectric height to the reference plane are the two big levers, followed by copper thickness and the material's Dk. Differential-pair spacing adds a fourth lever for coupled lines.
Calculators handle simple geometries; real layouts have transitions, vias and coupled neighbours that calculators ignore. Field solvers catch those second-order effects before they become first-order respins.
TDR testing reads impedance along the trace from reflected signals, and network analyzer sweeps confirm insertion and return loss. Both should be part of the fabricator's standard high-frequency outgoing inspection.
