Eight test categories from TDR impedance to salt-spray reliability — what each measurement catches and why no single test proves a high-frequency board.

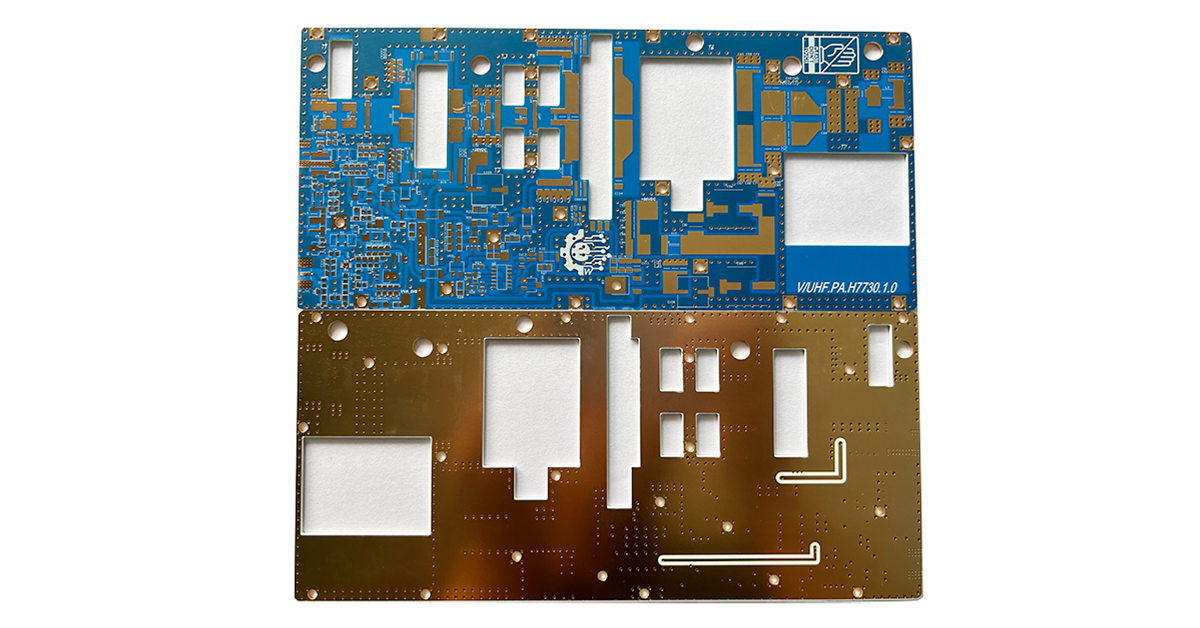

A high-frequency board that looks perfect can still fail in the field, which is why testing is where high-frequency PCB quality is actually proven. High-frequency signals punish inconsistency in impedance, signal integrity, thermal behaviour and mechanical strength alike, so the test suite has to be rigorous on all fronts. Here is what a complete program covers.
Impedance consistency is the core metric, because mismatched impedance turns directly into reflection, loss and interference. Three measurements cover it: a TDR or impedance analyzer checks characteristic impedance against design values — commonly 50 Ω or 75 Ω within tolerance; uniformity testing compares traces across the panel so one bad net cannot hide among good ones; and differential testing verifies that paired traces meet their differential targets. The production-side controls behind these numbers are detailed in the impedance control steps.
Four phenomena get measured, not assumed. Reflection testing locates impedance discontinuities that bounce energy back toward the source. Crosstalk detection quantifies how much adjacent traces couple into each other. Jitter analysis checks timing stability, since accumulated time deviation drives error rates up. And noise detection — often with a spectrum analyzer — maps where noise comes from, with power and ground planes as the usual suspects.
With RF signals applied, four tests characterise the board. Gain testing confirms signal gain meets specification. Frequency response sweeping shows gain and bandwidth stay stable across the design range. Return loss measurement quantifies how much energy the transmission chain loses, a direct read on efficiency. And harmonic distortion testing catches non-linear behaviour at different power levels before it pollutes adjacent channels.
Heat and force both break boards in ways electrical tests never see. Thermal shock cycling hunts delamination and cracking under temperature swings; high-temperature aging verifies stability under sustained heat; and CTE testing — especially the Z-axis figure explained in the CTE analysis — predicts whether interlayer connections survive repeated thermal cycles. On the mechanical side, bending tests confirm the board survives installation, peel strength testing keeps copper bonded under thermal and mechanical stress, and impact testing certifies the structure for transport and service.
Three smaller categories complete the suite. Surface treatment testing covers flatness for soldering reliability, thickness uniformity for finishes like ENIG, and oxidation checks that protect signal transmission. Decoupling and filter testing verifies capacitors actually suppress noise — capacitance and frequency response, power-line filters, and attenuation outside the design band where filters are fitted. Reliability testing then forecasts field life: salt spray for corrosion resistance in humid or saline environments, humidity testing for stability, and electrical connection reliability across through-holes and solder joints over time.
For teams building a test plan, the suite compresses into one view:
| Category | Representative methods | What it catches |
|---|---|---|
| Impedance | TDR, impedance analyzer | Mismatch, non-uniform traces, differential deviation |
| Signal integrity | Reflection, crosstalk, jitter, spectrum analysis | Discontinuities, coupling, timing error, noise |
| RF performance | Gain, frequency response, return loss, harmonics | Efficiency loss, band instability, distortion |
| Thermal | Thermal shock, aging, CTE | Delamination, cracking, via failures |
| Mechanical | Bend, peel strength, impact | Install cracks, copper lift, transport damage |
| Surface treatment | Flatness, thickness, oxidation | Solder defects, rough or degraded finish |
| Decoupling/filtering | Capacitor response, filter attenuation | Ineffective noise suppression |
| Reliability | Salt spray, humidity, connection endurance | Field failures in harsh environments |
No single test proves a high-frequency board; the suite proves it, because each category catches failures the others cannot see. How each instrument slots into the production flow is laid out in the inspection types overview — teams that run the full map before shipment are the ones whose boards behave in the field the way they did on the bench.
Frequently Asked Questions
Impedance testing, because every other behaviour depends on it. A board with inconsistent impedance will show reflection, loss and noise regardless of how well everything else was built — but the full suite is still needed to catch what impedance testing cannot.
It reads impedance along the trace from reflected signals, so it locates discontinuities and shows uniformity across the whole net rather than averaging over it. That locality is exactly what high-frequency designs need to see.
Via failures. The plated through-hole barrel is copper inside a substrate that expands vertically with heat; a high Z-axis CTE works the barrel loose over repeated thermal cycles until the connection opens.
Match them to the service environment. Automotive, marine and outdoor equipment genuinely need salt spray and humidity testing; an indoor consumer product may pass with a lighter reliability screen. Skipping tests the environment will run anyway just moves the failure to the field.
