How RO4350B’s ceramic-filled hydrocarbon system maps onto massive MIMO arrays, millimeter-wave front ends and automotive radar — with the parameter table and supplier criteria to select it correctly.
As 5G commercialization accelerates, material selection has become a decisive input in radio equipment design rather than an afterthought. Rogers RO4350B — profiled in depth in our RO4350B high-frequency PCB material guide — has become the default answer for 5G base stations and millimeter-wave devices. This guide maps its characteristics onto concrete 5G applications and the manufacturing decisions that follow.
RO4350B uses a ceramic-filled hydrocarbon system reinforced with glass fiber, delivering a dielectric constant held to 3.48 ±0.05. Its Z-axis CTE of 31 ppm/°C sits far closer to copper’s 17 ppm/°C than traditional PTFE constructions manage, which directly improves via reliability in multilayer stacks — the failure mode that plagues dissimilar-material builds is analyzed in our RO3003 and FR-4 hybrid stack-up study.
At 77 GHz millimeter-wave test frequencies the material holds its dissipation factor below 0.0037 — roughly 85% lower than standard FR-4. That margin is what makes 28 GHz and 39 GHz 5G bands practical on a laminate that still processes like FR-4.
In 5G AAU (active antenna unit) designs, RO4350B supports 64T64R arrays, and its ±2% Dk tolerance keeps phase consistent across beamforming elements. Test data from a leading equipment manufacturer shows antenna boards on RO4350B improving radiation efficiency by 12% over competing materials — phase discipline is exactly what the 5G antenna impedance-consistency control techniques are designed to protect.

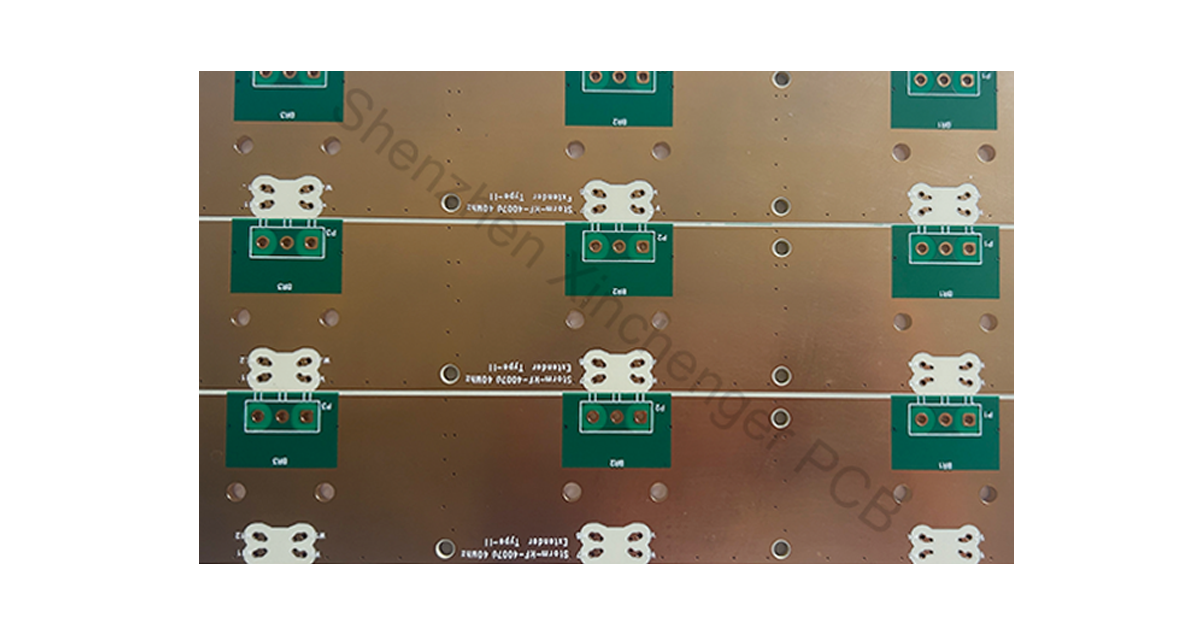

For the n257/n258/n260 millimeter-wave bands, a 0.2 mm board build achieves insertion loss below 0.3 dB/cm. The surface finish is compatible with hybrid ENIG + OSP processing, satisfying both high-frequency transmission and SMT soldering in one pass.
Choose manufacturers with ten or more years of high-frequency production experience, and hold them to ±5% impedance accuracy, laser drilling precision of ±25 µm and layer-to-layer alignment deviation under 50 µm. The imaging equipment behind those numbers is compared in our high-precision lithography and exposure machine overview.
With thermal conductivity of 0.69 W/m·K, RO4350B needs deliberate heat paths: 2 oz copper in power-component areas, aluminum or copper heat sinks where dissipation concentrates, and dielectric layers kept under 3 mm to avoid thermal bottlenecks.
| Parameter | RO4350B | Standard FR-4 | Improvement |
|---|---|---|---|
| Dk @ 10 GHz | 3.48 | 4.3 | –19% |
| Df @ 10 GHz | 0.0037 | 0.025 | –85% |
| TCDk (ppm/°C) | +50 | +200 | +75% |
| Peel strength (N/mm) | 1.4 | 0.8 | +75% |
77 GHz forward radar modules are increasingly specified on RO4350B in place of ceramic substrates, cutting module cost by around 40% while holding detection accuracy — a trade-off chain explored in our Rogers 4350B vs. FR-4 comparison.
In LEO satellite user terminals, the laminate’s low density (1.8 g/cm³) helps cut device weight by roughly 30%, a direct win for launch economics and terminal portability.
For 5G equipment developers, shortlist suppliers that can show all four of the following:
As 5G-Advanced evolves, high-frequency laminates will push toward lower loss (Df below 0.002) and higher thermal conductivity (above 1 W/m·K). RO4350B remains the most mature solution today and is expected to hold its market position for at least the next three years. Designs pushing beyond 40 GHz into pure-PTFE territory should weigh it against the F4B vs. RO4350B expert comparison before committing a stack-up.
Frequently Asked Questions
Its ±2% Dk tolerance keeps phase consistent across 64T64R beamforming elements, and manufacturer test data shows about 12% higher radiation efficiency than competing materials on antenna boards.
Dissipation factor is 0.0037 versus 0.025 for FR-4 — roughly 85% lower loss — and its temperature coefficient of Dk is +50 ppm/°C against FR-4's +200, keeping impedance stable as boards heat.
Yes. The glass-reinforced hydrocarbon system drills, desmears and laminates with conventional FR-4 parameters — no plasma treatment or sodium naphthalene etching of the kind PTFE laminates require.
A 0.2 mm build reaches insertion loss below 0.3 dB/cm in the n257/n258/n260 bands, and the surface accepts hybrid ENIG + OSP finishing for high-frequency transmission plus SMT assembly.
Share your frequency band, layer count and target loss budget and we will confirm the stack-up, finish and impedance plan before you commit.
