The six-stage collaboration lifecycle — selection, early engagement, prototype, pre-production, volume, feedback — with the deliverables and failure traps specific to each stage.

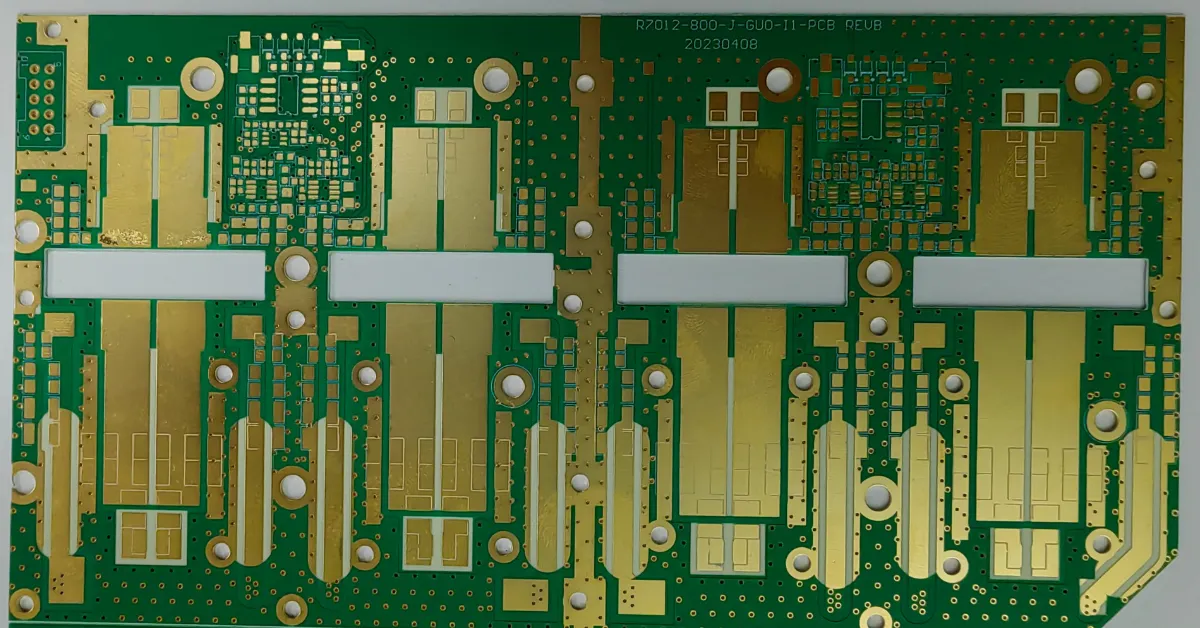

A high-frequency PCB program succeeds or fails on the quality of the collaboration between design team and fabricator, and that collaboration has a natural lifecycle: selection, early engagement, prototyping, pre-production, volume, and feedback. Each stage has its own deliverables and its own failure traps. This guide walks the six stages in order, with the documents and decisions that belong to each.
Selection weighs RF-specific capability — laminate handling, controlled impedance, sector certifications — using the evidence-first method described in the RF fabricator evaluation guide. Early engagement then brings the chosen fabricator into the stackup conversation while the design can still absorb it: material substitutions, lamination constraints and impedance process windows are all cheapest to fix here. This is also the stage to agree who optimizes what — a fabricator with design experience, as in the Rogers design optimization guide, can review the layout for RF manufacturability before the first panel is imaged.
Prototypes exist to be measured, not admired. The validation package should include per-panel impedance coupons, VNA sweeps of the actual transmission lines, and inspection against the acceptance criteria agreed in stage two — sequenced per the high-frequency PCB testing workflow. Fix the gaps found here in design, not in fabrication exceptions; a waiver granted at prototype becomes the standard at volume unless someone pays attention.
Pre-production freezes the build: final DFM pass, surface finish confirmed against the operating environment, and the process line identified by name. Volume then runs on process control rather than heroics — automation investments like those in the staged automation roadmap are what keep panel 10,000 inside the tolerances panel one hit. Hold the fabricator to the test regime on every lot, not just the first: the eight-stage testing process is the reference cadence for production lots.
After each program, close the loop: field failures and yield data flow back to the fabricator, process improvements flow forward to the next design. The most valuable artifact is the supplier’s own quality evidence trend — tracked like the three-indicator quality checklist across lots — because drift shows up in trend lines long before it shows up in returns. Programs that skip stage six start every new project from zero trust.
Across all six stages, three documents carry the alignment: the controlled stackup with impedance targets and tolerances, the test and acceptance specification, and the change-control agreement for either side’s modifications. Everything else — emails, calls, meeting notes — is commentary. Teams that maintain the three documents rarely need the penalty clauses; teams that rely on goodwill accumulate the disputes the documents would have prevented.
Frequently Asked Questions
Stage two, early design engagement. Skipping it means stackup decisions made without process input, which surface later as quotation surprises or unbuildable tolerances.
Per-panel impedance coupons, VNA measurements of the actual traces, and inspection against pre-agreed acceptance criteria — not just visual and continuity checks.
Freeze the build in pre-production, name the production line explicitly, and hold every lot to the same test cadence as the prototype, not a reduced one.
A controlled stackup with impedance targets, a test and acceptance specification, and a change-control agreement. Everything else is commentary.
