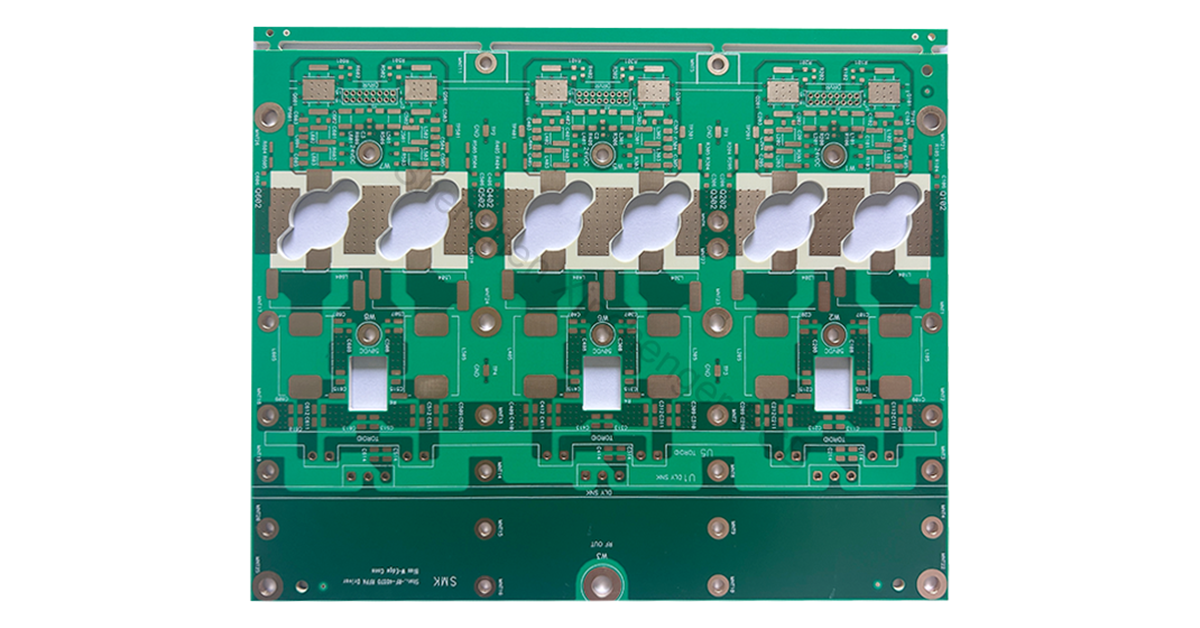

In 5G base stations, aerospace avionics and automotive radar, a high-frequency PCB rarely fails loudly — it drifts. Impedance creeps out of tolerance, insertion loss climbs, a via barrel cracks after a thousand thermal cycles. Catching those drifts is the job of a testing chain that runs from incoming laminate to final pack-out. This article walks that chain in order and shows what each of the eight test stages must prove before a high-frequency PCB moves to the next one.
Nothing downstream can fix a bad batch of laminate, so the first checks happen before a panel ever enters production:
Two process steps get dedicated gates. Pattern transfer is verified by automated optical inspection with 100% board coverage and a ±10 µm line-width and spacing tolerance, followed by cross-section analysis confirming 85–90° trace sidewalls — the geometry that keeps RF losses predictable. Lamination quality is judged against the criteria below:
| Check | Standard | Method |
|---|---|---|
| Bonding integrity | IPC-6018 | Microsectioning |
| Thermal stress | 288°C solder float, no delamination | Solder bath |
| Thickness uniformity | ±5% | Laser micrometer |
Finished panels face the electrical gauntlet in three layers. TDR impedance testing holds a ±5% tolerance, sampled at the operational frequencies of 10, 28 and 77 GHz rather than only at DC. Vector network analyzer tests sweep insertion loss from DC to 110 GHz, require return loss above 18 dB, and verify phase matching within ±3° — the parameter that matters most once a board feeds a phased-array antenna. Environmental stress screening then accelerates a decade of field life: 1,000 cycles from –55°C to +125°C, 96 hours of pressure-cooker testing at 121°C and 100% RH, and 1,000 hours of HAST at 85°C/85% RH.
Beyond the electrical gates, three verifications close the remaining risk areas:
The last gate is purely electrical: 100% netlist continuity verification, insulation resistance above 10⁸ Ω, and hi-pot at 500 V DC for 60 seconds. Only panels that clear it get packed — and each one carries a digital test record, so traceability survives beyond the shipping box.
What separates a qualified high-frequency factory from an ordinary one is how the whole chain is run: NIST-traceable calibration with annual equipment certification, testing that deliberately exceeds IPC minimums, and documented evidence for all eight test categories. For OEMs auditing a supplier, that last point is the practical test — ask for the records, not the certificates. And because testing is only one pillar, pair it with the failure-mode deep dives in our HALT, thermal shock and CAF reliability analysis and with the factory-level certifications that back a high-frequency PCB manufacturer.
Frequently Asked Questions
Resonant-cavity measurement holds Dk within ±3% of nominal with Df accuracy of ±0.0005 across the 1–40 GHz range that RF designs actually occupy.
Near-vertical etched sidewalls keep the trace cross-section uniform along its length, which preserves the designed impedance and minimizes RF loss; tapered or undercut walls create local impedance discontinuities.
1,000 cycles from –55°C to +125°C, 96 hours of PCT at 121°C and 100% RH, and 1,000 hours of HAST at 85°C/85% RH — together simulating a decade of field aging.
Documented evidence for all eight test categories — material certs, AOI and cross-section reports, TDR/VNA data, environmental records, microstructure, compliance screening and per-board digital test records.
Send your application and frequency band and we will return the full test plan — stage by stage with acceptance criteria — that your boards would go through.
