A staged automation roadmap for HF PCB factories ordered by ROI — quantify first, automate inspection, then critical processes, then the MES data layer — with the 50M-RMB reference case and the dark-factory horizon.
Automation upgrades in high-frequency PCB factories fail in two predictable ways: buying equipment without a sequence, and automating steps whose problems are upstream. This article lays out a staged transformation roadmap ordered by return on investment — measure first, automate the measurement, then the critical processes, then the data layer that ties it together. The equipment itself is cataloged in our high-end microwave PCB equipment list; here the question is how to phase it in.

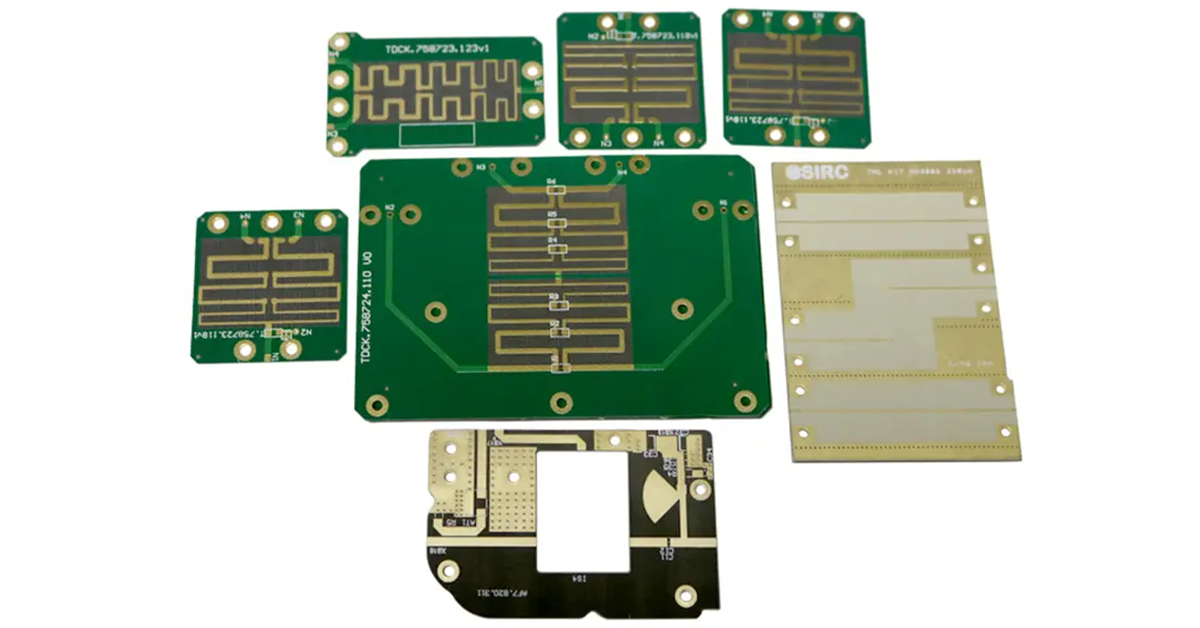

The 5G-era requirements are unforgiving — Df low enough for 24 GHz+, impedance within ±5%, line/space at or below 50 µm, and lead times shrinking all the while — but the transformation should start with data, not machinery. Map where defects and delays actually concentrate: for most HF lines, drilling damage, pattern misalignment and manual inspection bottlenecks top the list. The factory that skips this step automates the wrong bottleneck and wonders why yield did not move.
Inspection is the highest-ROI first move for a reason: it pays immediately and it generates the baseline data every later stage needs. AI-powered visual inspection catches nicks, burrs and pattern defects that manual review misses, cuts inspection labor cost, and — crucially — builds the defect database that later process automation will be tuned against. Paired with laser direct imaging, which eliminates photolithography misalignment at the source (the equipment class is detailed in our LDI exposure equipment guide), the pattern-transfer loop closes with data flowing both directions.
With the baseline established, process automation targets the two steps that dominate HF board quality. Laser drilling with robotic handling replaces slow, burr-prone mechanical drilling — microvia accuracy below 25 µm, 24/7 operation, and case data showing 30%+ yield improvement and 40% shorter HDI production time at one early adopter. Smart plating follows: automated copper lines with real-time monitoring of current density and chemical concentration, plus robotic immersion gold and silver handling that removes the contamination risk of manual transfer. The plating-side controls tie directly into the surface-finish decisions covered in our surface treatment process guide.
The last stage turns a collection of machines into a system. Flying probe testers plus VNAs validate insertion and return loss quickly; a manufacturing execution system (MES) tracks every panel’s process data and makes yield optimization a query instead of an investigation. Full traceability also becomes the sales asset it deserves to be — the test-chain documentation that OEM audits demand, as outlined in our eight-stage testing process guide, falls out of the MES naturally rather than being assembled by hand. And precision improvements compound here: the line-width discipline that LDI enables is quantified in our line width tolerance analysis.
A leading Chinese HF PCB manufacturer invested roughly 50 million RMB across these stages — AGV logistics to end panel scratches, MES for real-time monitoring and traceability, plasma cleaning integrated into the plating stage — and reached above 98% yield, 60% higher capacity and 35% lower labor cost, with strategic-account qualification as the follow-on effect. The horizon extends the same logic: dark-factory concepts with IoT and digital-twin maintenance, flexible lines for high-mix low-volume RF work, and process sets already being readied for 6G-class frequencies. Automation at this level is not an equipment purchase — it is a sequencing problem, and the factories that sequence it well compound their advantage every year.
Frequently Asked Questions
Inspection: AI-powered visual inspection pays back immediately through labor savings and generates the defect baseline data that every later automation stage needs to be tuned against.
Two predictable ways: buying equipment without ordering it by ROI, and automating steps whose root problems sit upstream — both trace back to skipping the quantification stage.
Above 98% yield, 60% higher capacity and 35% lower labor cost via AGV logistics, MES-driven traceability and integrated plasma cleaning — plus qualification as a strategic supplier.
It turns yield optimization into a query: every panel's drilling, imaging and plating parameters are stored against outcomes, so process drift is caught and corrected statistically instead of by investigation.
