A designer’s walkthrough of Rogers PCB optimization — series selection, warp-proof stackups, EM simulation with real-world effects, conductor and dielectric loss control, via and grounding discipline, thermal planning and DFM collaboration.

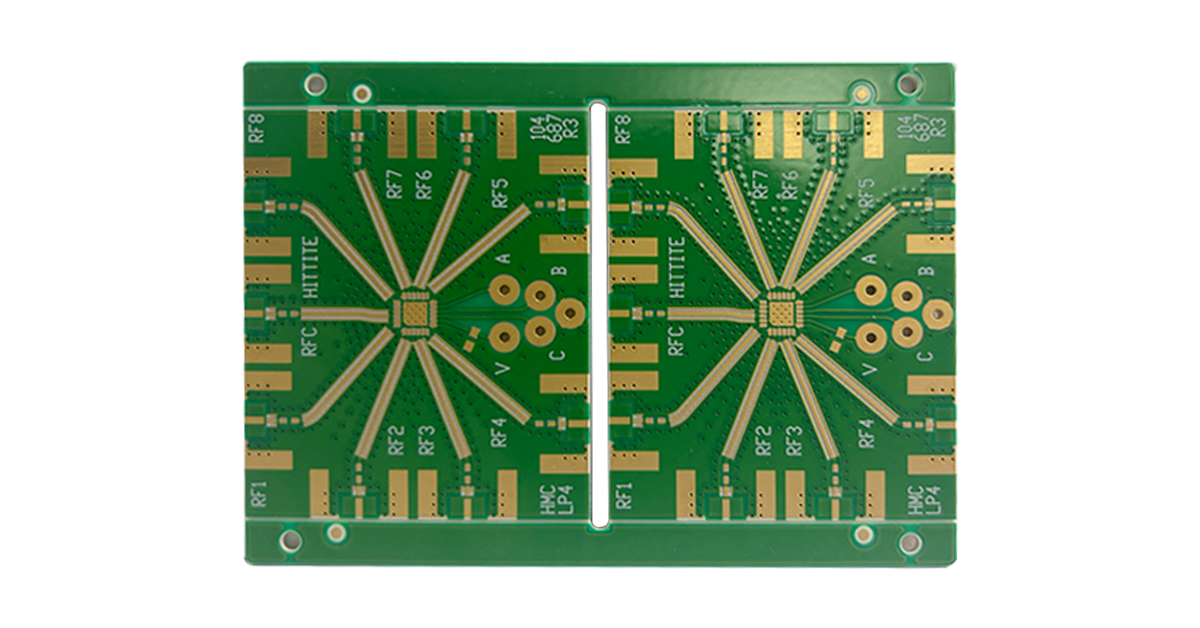

Rogers laminates give an RF design its ceiling — but poor design keeps the board well under it. Signal loss, impedance mismatch and thermal surprises are almost always design-decision problems, not material problems. This guide walks the full chain from the designer’s chair: choosing the laminate, shaping the stackup, simulating before layout, taming losses, and setting up the manufacturing collaboration that turns a good design into a good board. For the factory-side view of the same journey, our Rogers PCB manufacturing process guide picks up where this one ends.
The three flagship series serve different masters, and choosing wrong at this step costs more than everything downstream. For 28 GHz and above, RT/duroid 5880 — Dk 2.2 ±0.02 — still delivers the lowest loss of the family; the parameter set is detailed in our RT/duroid 5880 datasheet breakdown, and the ceramic-filled RO4000 series covers the volume mid-range where processing cost matters:
| Series | Dk range | Best for | Thermal conductivity |
|---|---|---|---|
| RO4000® | 3.3–6.15 | Cost-sensitive RF | 0.6–0.8 W/m/K |
| RT/duroid® | 2.2–10.2 | mmWave and space | 0.2–0.6 W/m/K |
| RO3000® | 3.0–3.5 | High-speed digital | 0.5 W/m/K |
A 6-layer reference build puts RF signals on L1 in 0.1 mm of RO4350B, a 0.075 mm prepreg ground on L2, and DC/power deeper in the stack — the pattern generalizes to three rules: symmetrical construction to prevent warpage, dielectric variation under 4 mil between layers, and adjacent ground planes for any stripline layer. Geometry is only half the story, though; the coefficients of expansion decide whether the stack survives reflow and thermal cycling, which our Rogers CTE analysis quantifies layer by layer.
Hand-calculators assume an isotropic, featureless world; real boards are neither. Full 3D EM simulation — HFSS or CST — should capture three effects the formulas miss: surface roughness on the conductor, glass weave skew in anisotropic substrates, and soldermask loading on microstrip lines. Hold ±5% tolerance on critical 50 Ω lines, and apply tapered transitions wherever impedance changes rather than stepping abruptly. The routing-level rules that follow from the simulation are collected in our high-frequency wiring recommendations.
Total insertion loss is conductor loss plus dielectric loss, and each has its own lever. On the conductor side, specify reverse-treated copper — Rz below 1.2 µm against roughly 3 µm for standard foil — and widen traces where possible, targeting w ≥ 3h for microstrip. On the dielectric side, select Df below 0.002 and keep high-speed paths clear of resin-rich areas, where local Dk variation scatters phase. Chasing both at once beats chasing either alone, because the mechanisms compound at mmWave.
Discontinuities, not traces, dominate loss above 20 GHz. Back-drill unused via stubs longer than 10 mil; where via-in-pad is unavoidable, require the filled-and-capped process; and size antipads at 8 mil minimum clearance for 0.2 mm vias. Fence ground edges with vias spaced λ/20 apart — about 1 mm at 6 GHz. Ground the board in mixed mode: multipoint for RF sections, single-point for low-frequency analog, and laser-cut shield cavities with conductive gaskets where isolation specs demand it.
Power amplifiers will not negotiate. Arrays of 0.2 mm vias at 1 mm pitch under hot components move heat into the stack; aluminum backing adds 3–5 W/m/K and copper-invar-copper raises that to 6–8 W/m/K when passive vias are not enough. Run thermal simulation before production to find hot spots while moving them is still a design change instead of a respin — and note that CTE matching (Step 2) is part of the thermal plan, not a separate topic.
The last optimization is organizational. Validate Dk for the specific material lot the factory will actually use; let the fab optimize drilling parameters for PTFE; and route fine features through laser ablation where etch resolution runs out. A 28 GHz phased array built under this collaboration measured 0.15 dB/inch insertion loss, ±3° phase matching across channels and 98% first-pass yield — the difference between a datasheet design and a deliverable one. The controlled-impedance groundwork behind numbers like these is laid out in our controlled-impedance design guide.
Frequently Asked Questions
RT/duroid 5880 (Dk 2.2±0.02, Df 0.0009) for lowest loss at mmWave; the ceramic-filled RO4000 series is the cost-effective choice below roughly 20 GHz where volume pricing matters.
Symmetrical copper and dielectric construction, dielectric thickness variation under 4 mil between layers, and adjacent ground planes for every stripline layer.
It captures the three effects formulas ignore — conductor surface roughness, glass weave skew in anisotropic substrates, and soldermask loading — which together shift impedance by several percent at mmWave.
Cut conductor loss with reverse-treated foil (Rz <1.2 µm) and wider traces (w ≥ 3h), and cut dielectric loss with Df <0.002 material while keeping high-speed paths out of resin-rich areas.
