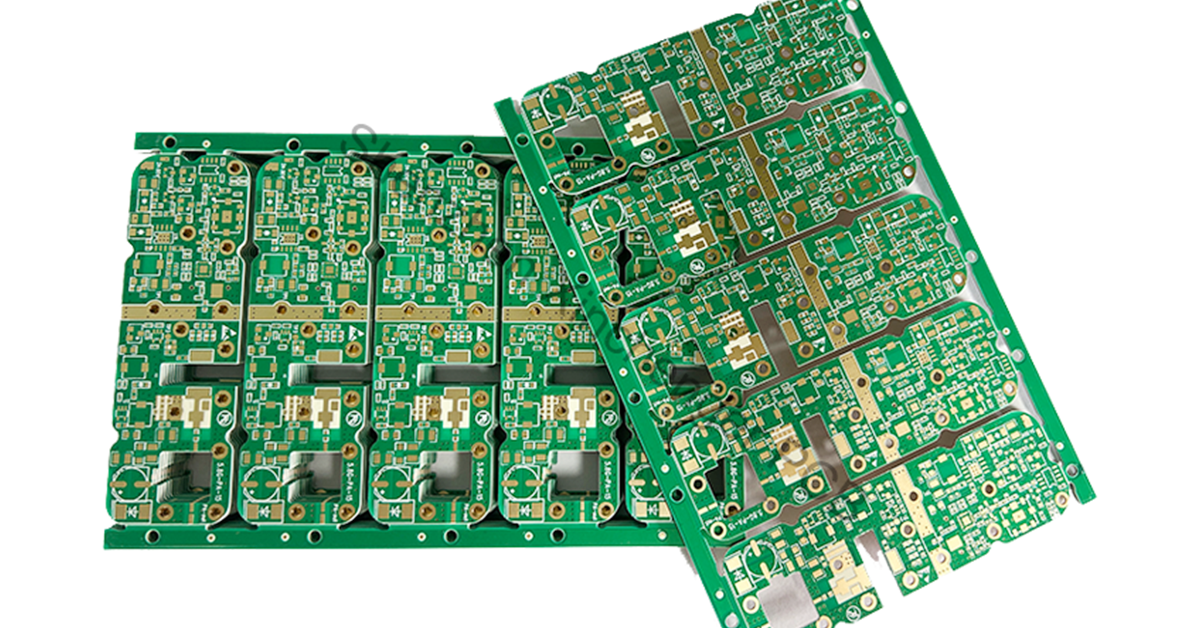

Seven control points from material selection and line-width precision to lamination, drilling, surface treatment, thermal management and signal integrity testing.
The substrate material significantly influences high-frequency PCB performance. Common choices include PTFE (polytetrafluoroethylene), ceramic-filled compounds, and composite materials — all offering low dielectric constants and low loss factors but demanding special handling for thermal expansion, moisture absorption, and high-temperature resistance.
Dielectric constant and loss tangent. Materials must keep Dk consistent at the operating frequency for stable signal transmission — a selection framework we detail in high-frequency and RF circuit board materials.
Mechanical properties. Strength and rigidity must be sufficient, especially for multilayer builds where material stability is crucial.
High-frequency circuits suffer significant electromagnetic interference at higher signal frequencies, so line width and spacing must be strictly controlled to reduce interference — signals are highly sensitive to impedance, which must stay within tolerance during processing.
Etching process. High-precision etching ensures the accuracy and completeness of signal lines; advanced technology minimizes line width errors.
Trace spacing. Adequate spacing prevents crosstalk — a baseline requirement of high-frequency design.
Multilayer structures reduce noise and improve signal integrity, but demand higher lamination and alignment precision.
Lamination. Optimized pressure and temperature prevent uneven expansion of different materials — see our guide to FR-4 + RO4250B lamination processing for a worked example of mixed-material lamination control.
Alignment technology. Accurate alignment is the foundation of signal integrity in multilayer boards; automated alignment systems and precision positioning tools should be used.
Fine microvias for interconnections require laser drilling technology.
Drilling process. Laser drilling minimizes the heat-affected zone on high-frequency materials, preventing substrate deformation or damage to conductive layers.
Plating process. Combining chemical and electroplating ensures uniform, conductive via walls that meet high-frequency transmission requirements.
Surface treatment enhances durability and conductivity — critical because high-frequency signal transmission is demanding about conductor surface quality.
ENIG (Electroless Nickel Immersion Gold). Low contact resistance and a smooth surface finish — compare the options in our ENIG vs silver vs tin surface finish guide.
OSP (Organic Solderability Preservative). An eco-friendly option that maintains good soldering performance and reliability.
High-power operation generates significant heat, making thermal management essential.
Thermally conductive materials. Metal backplanes or thermally conductive fillers with high thermal conductivity draw heat away from hot spots.
Copper foil thickness. Increasing foil thickness or using thermally conductive copper foils improves heat dissipation efficiency.
Comprehensive signal integrity testing ensures boards stay stable in practical applications.
Vector network analysis. Measures transmission characteristics such as S-parameters and reflection coefficients — one of the instruments in our overview of finished-product testing and environmental simulation equipment.
Time-domain reflectometry (TDR). Checks impedance matching and locates discontinuities along signal traces, closing the loop with impedance control from design through fabrication.
Common questions about high-frequency PCB processing.
PTFE and ceramic-filled laminates have different thermal expansion, moisture absorption, and temperature behavior than FR-4. Ignoring these properties during processing causes warp, delamination, and impedance drift.
Etch precision should target the design tolerance of the impedance window — typically a few percent of trace width. Excess error shifts impedance and degrades signal integrity.
ENIG is the usual choice for its low contact resistance and flat surface; OSP is an eco-friendly alternative when cost and lead-free requirements dominate.
Vector network analyzers measure S-parameters and reflection, while TDR locates impedance discontinuities — together they confirm the board matches its design targets.
