Why high-power RF service specifies the ENIG-4350B pairing — thermal and reflow demands the finish must survive, the substrate’s heat and low-loss contribution, and the four factory controls that make it repeatable.

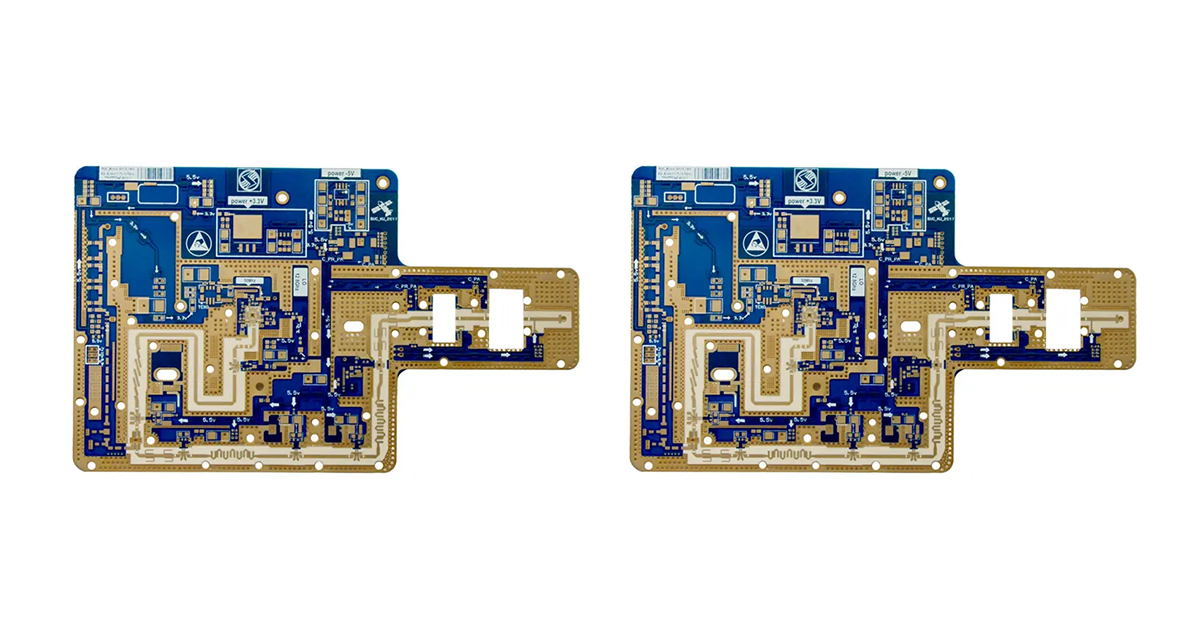

Rogers 4350B is the industry-standard ceramic-filled hydrocarbon laminate — Dk 3.48±0.05 at 10 GHz — but its pairing with immersion gold is not automatic; it is a decision that matters most in high-power RF service. This guide explains why base station power amplifiers, microwave relays and aerospace transmitters specify the ENIG-4350B combination, what the finish does thermally and mechanically that cheaper finishes cannot, and what a factory must control to deliver it. The material’s broader 5G role is covered in our RO4350B for 5G communications guide.
High-power RF service stresses the surface in three ways at once: sustained heat that oxidizes lesser finishes, repeated reflow cycles from assembly and rework, and current densities at pads and vias that punish contact resistance drift. ENIG answers all three — the nickel-gold barrier withstands more than three lead-free reflows without pad oxidation, gold’s stable contact resistance keeps high-current joints predictable over years, and the finish’s flatness preserves the geometry that impedance depends on. HASL cannot meet any of these at high power, and the finish comparison in our ENIG versus silver versus tin guide quantifies the gap.
The substrate does the heat work underneath. Ceramic-filled 4350B provides 0.71 W/m/K thermal conductivity — roughly 300% above standard FR-4 — which is what keeps power amplifier junction temperatures survivable on a passively cooled board. The CTE-matched ENIG/4350B structure eliminates the multilayer delamination risks that appear when finish and laminate expand differently, and salt spray endurance of 168 hours extends the reliability to the outdoor and vehicle-mounted environments — automotive radar, satellite terminals — where 4350B boards serve. The duty-cycle logic behind these environments is laid out in our 5G base station and satellite analysis.
The electrical case completes the picture. 4350B’s dissipation factor of 0.0037 at 10 GHz combined with ENIG’s surface optimization cuts 77 GHz transmission loss by roughly 15%, and gold-layer smoothness below 0.2 μm Ra minimizes signal scattering — the finish quality that phased array radar TR modules depend on channel after channel. The impedance story holds across the temperature range: Dk stability maintained from –50°C to +150°C supports ±5% impedance control precision through thermal excursions, not just at bench temperature.
The assembly benefits are concrete: gold at 0.05–0.1 μm delivers ultra-flat pads with under 0.3% warpage for 01005-class micro-component mounting, an eight-hour soldering window that prevents nickel oxidation during production pauses, and solder joints roughly 40% stronger — a failure-rate margin that matters most in modules where repair means replacing a whole antenna array. Delivering that consistently requires four factory controls: PTFE-class material expertise including laser drilling at ±0.05 mm tolerance with plasma desmear, ENIG thickness management at 3–5 μm nickel and 0.05–0.1 μm gold, dynamic impedance compensation during line tuning, and military-grade QC with 100% flying probe plus VNA verification. Factories holding all four — the profile our RO4350B material deep dive describes from the material side — turn the ENIG-4350B combination from a datasheet pairing into a repeatable product.
Frequently Asked Questions
Sustained heat, repeated reflows and high current densities oxidize or degrade lesser finishes; ENIG's nickel-gold barrier survives 3+ lead-free reflows, keeps contact resistance stable and preserves impedance geometry.
Ceramic-filled construction provides 0.71 W/m/K thermal conductivity — about 300% above FR-4 — keeping power amplifier temperatures survivable passively, with CTE-matched ENIG preventing delamination.
Df 0.0037 at 10 GHz plus gold smoothness below 0.2 μm Ra cuts 77 GHz transmission loss roughly 15%, with Dk stability from –50°C to +150°C supporting ±5% impedance control through thermal excursions.
PTFE-class expertise (laser drilling ±0.05 mm, plasma desmear), ENIG thickness management at 3–5 μm Ni and 0.05–0.1 μm Au, dynamic impedance compensation, and 100% flying probe plus VNA verification.
