Working backwards from the field: what 5G base station and satellite duty cycles — heat, weather, vacuum, radiation, launch — force high-frequency PCBs to deliver, and the manufacturing requirements that follow.
High-frequency PCBs in 5G base stations and satellite payloads have moved from interconnect to mission-critical component — the board is now part of the antenna, the filter and the power chain. The useful way to specify one is to work backwards from the field: what the base station on a tower endures, what a satellite endures in orbit, and what each condition forces the PCB to deliver. That is the structure of this guide, and it explains why the application landscape for high-frequency PCBs now drives material and process choices rather than following them.

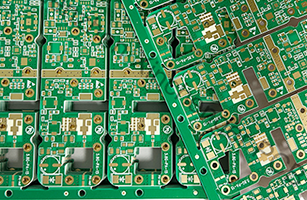

An active antenna unit on a tower faces three hard conditions simultaneously. Continuous transmission in a sealed outdoor enclosure drives sustained junction temperatures; the specified environment runs from –40°C to +70°C with solar loading on top; and the contract expects a decade of service without a truck roll. Electrically, that translates into strict passive intermodulation control and stable Dk across the temperature range — which is why ceramic-filled RO4350B has become the sub-6 GHz workhorse: processable like FR-4, stable enough for the duty cycle.
A LEO payload trades heat for a harsher set of stresses. Vacuum means no convective cooling — heat leaves only by conduction, so z-axis thermal design dominates. Radiation constrains material chemistry over a 15-year mission. Launch adds intense broadband vibration, and –55°C to +125°C cycling repeats thousands of times per year in orbit. Materials answer with tight z-axis CTE — Taconic TLY-5’s 16 ppm/°C is the reference point — and radiation-resistant formulations; the build implications are worked through in our 64-channel phased array case study.
Once the duty cycle is on the table, the material choice mostly writes itself:
| Application | Recommended material | Key properties |
|---|---|---|
| mmWave 28 GHz+ | Rogers RT/duroid 5880 | Dk 2.2 ±0.02, Df 0.0009 |
| Sub-6 GHz 5G | RO4350B | Dk 3.48, Df 0.0037 |
| LEO satellites | Taconic TLY-5 | Z-axis CTE 16 ppm/°C |
Those two duty cycles, run through the production line, produce a specific set of process demands. Line width and spacing at or below 100 µm with LDI pattern accuracy of ±5 µm; impedance tolerance of ≤5% on 50 Ω and 100 Ω structures; etch factor ≥3:1 on 35 µm copper so the trace cross-section stays square. Layer-to-layer registration at ≤25 µm with dielectric thickness held to ±3% — vacuum lamination keeps void content under 1%. ENIG finish with surface roughness below 0.5 µm matters more at 28 GHz than any plating spec on a conventional board, because skin depth has collapsed to where foil texture is the loss budget. And thermal management — 0.2 mm via arrays at 1 mm pitch, or metal-core builds at 5–8 W/mK — is what lets the power amplifier survive its own duty cycle. The consistency discipline behind these tolerances is detailed in our 5G antenna impedance consistency guide.
Both markets punish suppliers who learned on standard FR-4. The qualification checklist that matters: demonstrated PTFE processing (laser ablation and plasma treatment, not just lamination), VNA measurement capability to 110 GHz, signal-integrity simulation on staff, and IPC-6018DA certification for the high-frequency class. Lot traceability is non-negotiable where aerospace applications are involved — every panel must trace back to a material cert. A representative benchmark: a 64-element satellite phased array built under this regime held 0.08 mm line/space tolerance, ±2° phase matching across channels and 1,000-cycle thermal shock survival, processed with mSAP and full AOI coverage. The surface-finish trade-offs behind such builds — ENIG versus OSP versus immersion silver — are compared in our surface finish guide.
Frequently Asked Questions
Sealed outdoor enclosures with –40°C to +70°C exposure, ten-year service expectations, strict passive intermodulation control and thermally stable Dk — all under continuous transmission duty.
Vacuum removes convective cooling, so heat conducts through the stack; repeated –55°C to +125°C cycling then works the z-axis expansion mismatch until via barrels fatigue — TLY-5's 16 ppm/°C is the benchmark.
RT/duroid 5880 for mmWave (Dk 2.2, Df 0.0009), RO4350B for sub-6 GHz (Dk 3.48, processable like FR-4), and Taconic TLY-5 for LEO satellite z-axis stability.
PTFE processing experience (laser ablation, plasma treatment), VNA testing to 110 GHz, signal integrity simulation capability, IPC-6018DA certification and lot-level traceability.
