ENIG Plating for High-Frequency PCBs: Process Optimization to Prevent Black Pad and Plating Defects

The ENIG stage-by-stage controls — micro-etch depth, nickel bath phosphorus balance, immersion timing and racking discipline — that eliminate Black Pad and hold plating uniformity on high-frequency boards.

Table of Contents

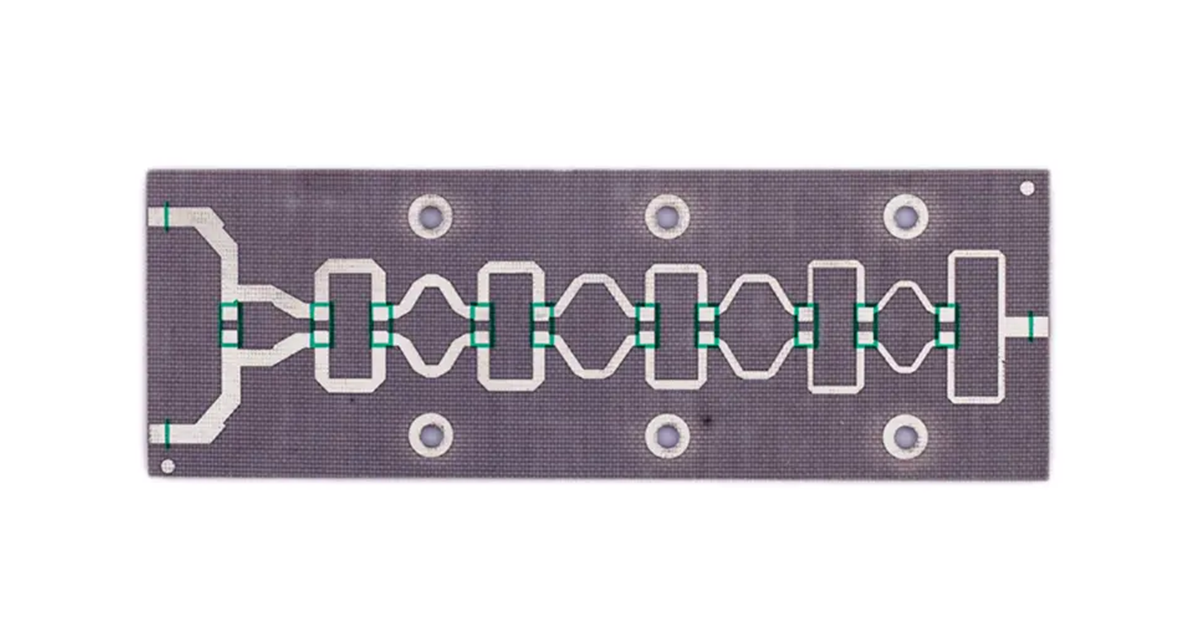

In high-frequency PCB manufacturing, electroless nickel immersion gold (ENIG) decides both signal transmission stability and soldering reliability — and it is also where Black Pad and uneven plating quietly erode yield. The finish sits inside a wider tradeoff space compared in our ENIG vs. silver vs. tin surface-finish analysis; this article goes deep on the ENIG process itself and the controls that keep it defect-free.

Core ENIG Process Flow

Three stages set the outcome, each with its own failure mode:

  • Pre-treatment cleaning. Laminate surfaces must shed every oxide and organic contaminant through micro-etching and acid cleaning — anything left behind becomes adhesion failure or a Black Pad seed. Key control: hold micro-etch depth to 0.5–1.5 µm so copper is not over-etched in the name of cleanliness.
  • Electroless nickel deposition. A 3–5 µm nickel layer builds on copper by reduction reaction and forms the foundation for gold plating. Uniformity is performance: unstable bath temperature or pH produces porous nickel — the direct trigger for Black Pad.
  • Immersion gold reaction. Gold deposits on nickel by displacement at 0.05–0.1 µm, protecting the nickel and enabling solderability. Too thin and the layer oxidizes; too thick and cost rises while solder joints risk embrittlement.

Black Pad: Root Causes and Countermeasures

Black Pad shows up as dark, brittle solder pads, and both root causes are bath-management failures:

  • Aged nickel bath with abnormal phosphorus content. The optimal range is 7–9%; drifting outside it produces the corroded nickel surface that solder refuses to wet. Countermeasure: test bath composition on a fixed schedule and replenish stabilizers promptly.
  • Excessive immersion time or contaminated gold bath. Either lets nickel over-etch beneath the gold. Countermeasure: control immersion to 1–3 minutes and avoid high-temperature operation that accelerates attack.

Optimizing Plating Uniformity

Thickness uniformity across a panel is a mechanical problem as much as a chemical one: maintain consistent metal-ion concentration with regular filtration to strip impurities, rack panels vertically so solution flows uniformly over every surface instead of stacking panels where chemistry stagnates, and pin the operating window — temperature fluctuation within ±2°C and pH stabilized at 4.5–5.0 — to keep thickness variation from drifting lot to lot. Where the finish sits in the overall production sequence is mapped in our surface-treatment steps and considerations guide.

Process Validation and Testing

Three checks close the loop: cross-section analysis to verify the Ni/Au thickness ratio and layer adhesion, a wetting-balance solderability test to confirm the surface still wets like it should, and impedance testing to quantify how the gold layer affects signal loss on high-frequency boards. Test planning for the full board is organized in our high-frequency PCB testing checklist.

Conclusion

ENIG for high-frequency PCBs is a multidimensional coordination problem — materials, equipment and parameters all moving together. Rigorous pre-treatment, stable bath management and precise parameter control cut Black Pad and non-uniformity risk dramatically, and real-time monitoring tied to production data turns a one-time fix into continuous optimization.

Frequently Asked Questions

Frequently Asked Questions

What is Black Pad and why does it occur?

Black Pad is a dark, brittle solder-pad failure caused by corroded nickel beneath the gold — typically from an aged nickel bath with phosphorus outside the 7–9% window, or over-long immersion gold contact that etches the nickel.

What nickel and gold thicknesses does ENIG require on high-frequency boards?

A 3–5 µm electroless nickel layer with a 0.05–0.1 µm immersion gold cap — thin enough to avoid brittle solder joints, thick enough to protect the nickel from oxidation.

How do you keep ENIG thickness uniform across a panel?

Vertical racking for uniform solution flow, regular filtration and stable metal-ion concentration, and a tight operating window of ±2°C temperature and pH 4.5–5.0.

Does ENIG affect high-frequency signal loss?

It can, which is why impedance testing is part of process validation — cross-sections confirm the Ni/Au ratio and wetting-balance tests confirm solderability, while impedance data quantifies any added loss.
