Discover Rogers RO4360G2 Gold-Plated PCB: High-Frequency Performance Redefined

RO4360G2 read as a miniaturization tool — what Dk 6.15 buys in antenna size, the control it demands in return, what ENIG adds for bonding and reliability, and where it fits against lower-Dk siblings.

Table of Contents

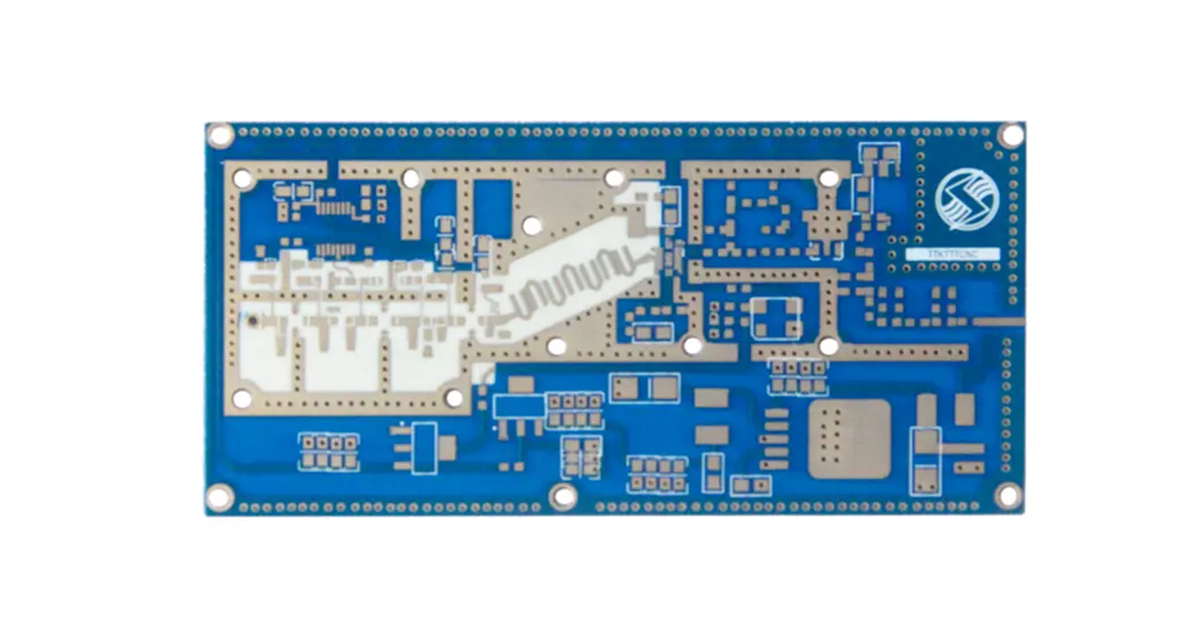

Among Rogers laminates, RO4360G2 plays a specific and useful role: with a dielectric constant of 6.15±0.15 at 10 GHz, it packs electrically large structures into physically small ones — which is exactly what compact antenna arrays and miniaturized radar front-ends need. This guide covers what the material delivers, what ENIG finishing adds to it, and where it is the right call versus its lower-Dk siblings.

What High Dk Buys You — and What It Asks

The headline number is Dk 6.15±0.15, and its value is physical: antenna elements and resonant structures scale down roughly with the square root of Dk, so a RO4360G2 antenna is meaningfully smaller than the same design on a 2.2–3.5 Dk laminate. The trade is control — high-Dk substrates amplify every geometry error into a larger electrical error, so the tolerance discipline matters more, not less. RO4360G2 answers with a glass-reinforced hydrocarbon-ceramic system built for exactly that balancing act: stable through –50°C to +150°C, and processable with the standard RO4000-class workflow rather than exotic PTFE handling.

The Loss and Impedance Picture

Dissipation factor sits at 0.0038 at 10 GHz — not the ultra-low-loss tier that RT/duroid 5880 occupies for the highest mmWave bands (the contrast is drawn in our RT/duroid 5880 parameter guide), but comfortably sufficient for the 10–30 GHz range where compact antennas actually operate. Controlled impedance is where the material earns its keep in mixed builds: tight Dk tolerance supports consistent line geometry across the panel, and hybrid stackups pairing RO4360G2 antenna layers with lower-Dk signal layers are a common pattern — the construction logic is the same as in our RO5880 and FR-4 hybrid stackup analysis.

What ENIG Adds to RO4360G2

Immersion gold finishing does three jobs the bare copper surface cannot. A 2–5 μ-inch gold layer over nickel gives oxidation resistance that keeps contact resistance stable for wire bonding and fine-pitch assembly. Its flatness supports the small feature sizes that miniaturized antennas demand. And because the nickel-gold barrier is corrosion-stable, the finish survives the humid, thermally cycling environments — automotive radar bays, outdoor base stations — where the boards actually serve. The finish families and their trade-offs are compared in our ENIG versus silver versus tin guide; the core point for RO4360G2 is that ENIG’s flat, bondable surface is what turns the laminate’s precision into assembled precision.

Where RO4360G2 Fits — and Where It Doesn't

Choose it when board area is the binding constraint: phased array elements, compact automotive radar front ends, and miniaturized 5G modules are its home ground, with MIL-PRF-31032-compliant fabrication covering the defense and satellite variants. Look elsewhere when absolute minimum loss at high mmWave is the goal — that is PTFE territory — or when cost-per-area dominates and the design has room to grow on a lower-Dk laminate. Within the RO4000 family the selection logic is summarized in our series overview: Dk 6.15 for size, Dk 3.3–3.5 for general RF, and the RT/duroid line for the loss-critical edge.

Frequently Asked Questions

Frequently Asked Questions

What is RO4360G2's main advantage over lower-Dk laminates?

Miniaturization: Dk 6.15±0.15 shrinks antenna elements and resonant structures substantially versus 2.2–3.5 Dk materials — at the cost of tighter tolerance discipline, since high Dk amplifies geometry errors electrically.

What does ENIG finishing add to RO4360G2 boards?

A 2–5 μ-inch gold layer over nickel for stable contact resistance and wire bonding, flat pads for fine-pitch assembly, and a corrosion-stable barrier for humid, thermally cycling environments.

Is RO4360G2 suitable for millimeter-wave use?

For the 10–30 GHz compact-antenna range, yes — Df 0.0038 is sufficient; for the highest mmWave bands where loss dominates, RT/duroid-class ultra-low-loss PTFE laminates remain the right call.

Where does RO4360G2 fit in the Rogers portfolio?

Dk 6.15 for size-constrained antennas and radar front ends, the RO4000 3.3–6.15 range for general cost-sensitive RF, and RT/duroid for loss-critical mmWave edge designs.
