The four failure modes of RT5880–FR4 hybrid builds — Dk mismatch, weak bonding, CTE warpage and plating adhesion — with the bonding films, lamination windows and validation tests that hold the stack together.

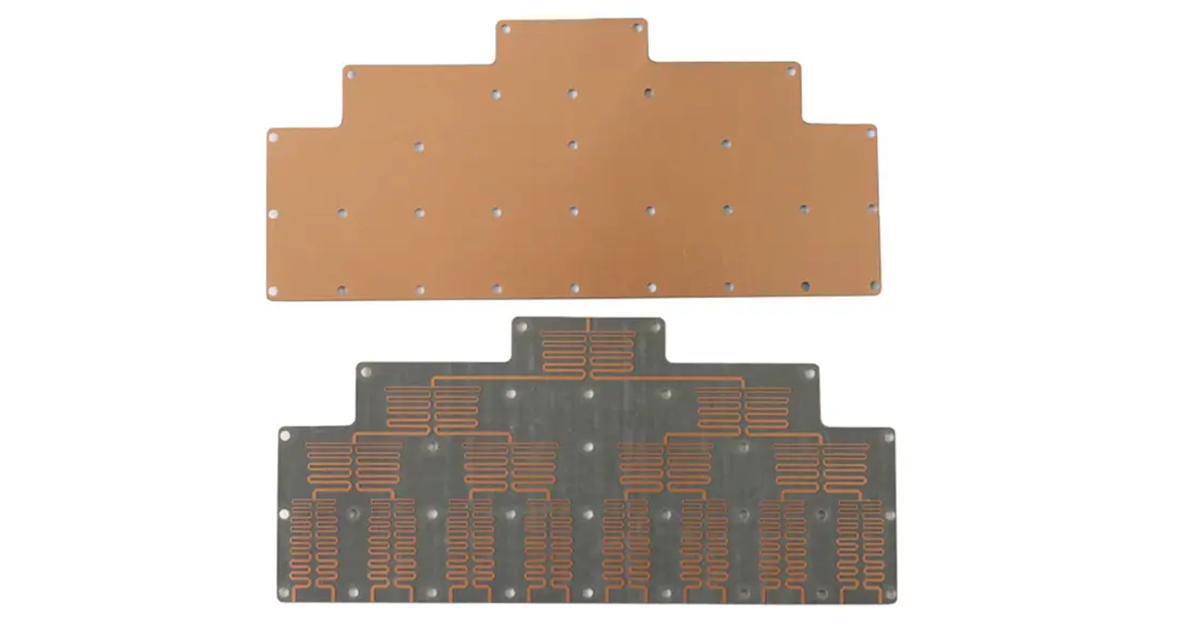

Hybrid stack-ups exist to buy performance where it matters and save money everywhere else. Rogers RT5880 — parameterized in our RT/duroid 5880 laminate guide — carries the critical signal layers while FR-4 provides cheap mechanical support. The catch: mismatched Dk, CTE and processing behavior between the two materials creates real engineering traps. This analysis covers the core techniques for keeping a RT5880–FR4 build out of trouble, alongside the related RO3003 and FR-4 hybrid approach.
Two build patterns dominate:
RT5880 (Dk ≈ 2.2) meeting FR4 (Dk ≈ 4.3) creates impedance discontinuities that reflect signal energy. The fixes are simulation-driven trace-width adjustment — widening microstrip lines on RT5880 by 10–15% — and gradual impedance transitions, with high-speed routing kept away from the Dk transition zones entirely.
PTFE-based RT5880 bonds poorly to FR4’s epoxy resin, so delamination risk concentrates at the interface. Specialized bonding films such as Rogers 2929 adhesive, plus plasma treatment or sodium naphthalene activation of the RT5880 surface before lamination, restore a reliable bond — the same interface discipline documented in our multilayer lamination considerations analysis.
RT5880 expands at roughly 50 ppm/°C against FR4’s 14, so heat pulls the stack asymmetrically and warpage follows. Symmetrical stack-up designs — an RT5880 core balanced by mirror-image FR4 layers — and lamination temperature ramps held to ≤3°C/min keep the board flat. When warpage does appear, the root-cause chain is the same one behind high-frequency PCB delamination and blistering.
Smooth PTFE hole walls refuse copper adhesion and eventually separate from the barrel. Post-laser-drilling plasma etching roughens the wall, and high-activity electroless copper chemistry — with suitable oxide pre-treatment — establishes the deposit.
Three process settings carry most of the reliability weight:
Two cases recur across hybrid programs:
Validate before scaling with two test families: reliability testing — thermal cycling from –55°C to 125°C for 100 cycles to expose delamination, and peel strength of at least 8 lb/in per IPC-TM-650 — and signal-integrity verification, where VNA-measured insertion and return loss are compared against simulated impedance curves. The full test menu is organized in our high-frequency PCB testing checklist.
The RT5880–FR4 hybrid stack-up is a genuine cost-performance tradeoff, but its reliability lives or dies on three controls: material compatibility at the interface, lamination parameters matched to PTFE, and disciplined surface treatment. Work with a manufacturer who validates via simulation and prototyping with end-to-end QC checkpoints, and the hybrid approach delivers FR-4 economics at RF-grade performance.
Frequently Asked Questions
Cost-performance: RT5880 carries only the critical signal layers where its low loss matters, while FR-4 provides mechanical support at a fraction of the price — cutting total material cost without touching RF performance.
CTE mismatch: RT5880 expands near 50 ppm/°C versus FR-4's 14. Symmetrical stack-up design, lamination ramps of ≤3°C/min and aluminum carrier plates during pressing keep boards flat.
Specialized bonding films such as Rogers 2929 adhesive, plus plasma treatment or sodium naphthalene activation of the RT5880 surface before lamination, restore reliable interlayer adhesion.
Thermal cycling of –55°C to 125°C for 100 cycles, peel strength of at least 8 lb/in per IPC-TM-650, and VNA comparison of measured versus simulated insertion loss and impedance.
