What changes between a 10 mil and a 60 mil RT6035HTC panel, and how to adjust drilling, lamination, cutting and soldering when loss and heat removal pull in opposite directions.
RT6035HTC is a ceramic-filled PTFE laminate built for RF and microwave work where the thermal load is as demanding as the electrical requirement. It pairs an ultra-low dielectric loss with thermal conductivity well above that of a standard PTFE board, which is why it turns up in RF power amplifiers, radar front ends, antennas and filters rather than in general-purpose digital designs, where the process demands are far more forgiving than those set out in these processing considerations for high-frequency PCBs.
Like the rest of the family, it is supplied in several thicknesses, and here the thickness is not a mechanical detail. It sets the loss, the heat path and the mechanical strength of the finished board all at once. This article covers the standard options and then works through what changes at each one, including the process parameters that have to move with them.
The material is a ceramic-filled PTFE composite, and that construction explains its behaviour. The PTFE base keeps dielectric loss low. The ceramic filler raises thermal conductivity and stabilises the dielectric constant, which is what allows the same laminate to serve both a low-loss receive path and a power amplifier that has to shed real heat.
Within the Rogers high-frequency portfolio this grade sits at the thermal end of the spectrum. Where a design needs a high dielectric constant instead, so that the circuit can be made physically small, a material such as RT6010LM is the more relevant starting point. The two are worth comparing before committing, because they solve opposite problems.

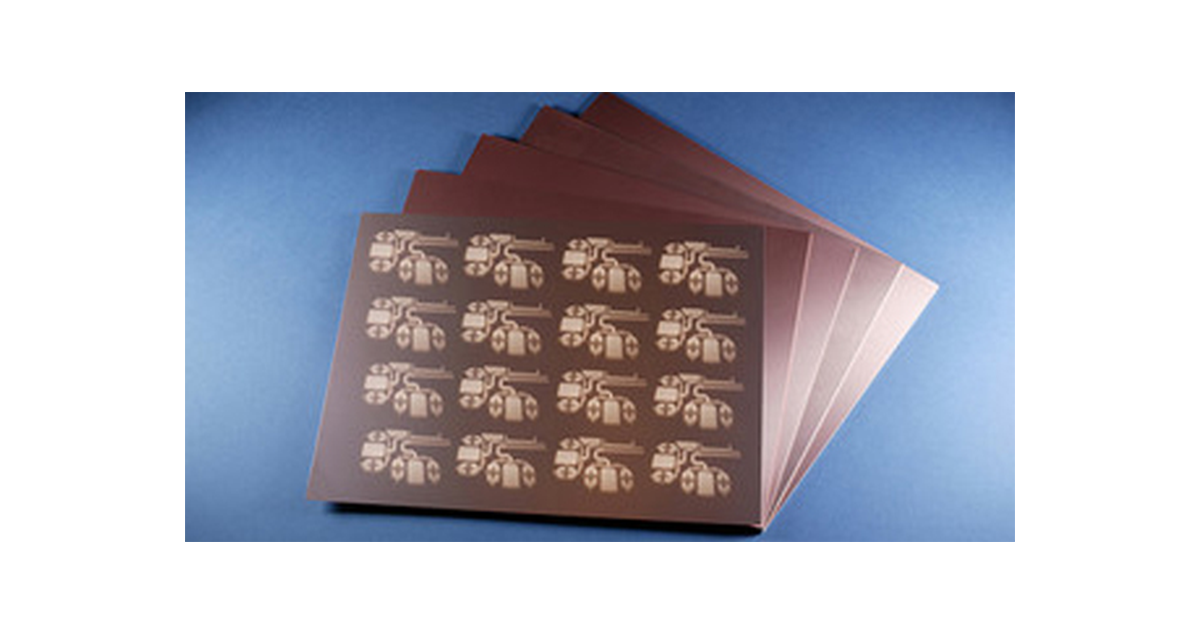

Four thicknesses cover most requirements: 0.254 mm, 0.508 mm, 0.762 mm and 1.524 mm. Custom options are available for designs that need an intermediate value, such as 1.0 mm, typically where a specific impedance or a fixed mechanical envelope drives the choice.
The table below sets out what each standard thickness is good at.
| Thickness | Characteristics | Typical Applications |
|---|---|---|
| 0.254 mm (10 mil) | Minimal dielectric loss in a thin, light panel; adequate thermal conductivity for low to medium power | High-frequency filters, couplers, microstrip transmission lines, dense lightweight RF modules |
| 0.508 mm (20 mil) | Balanced mechanical stability and dimensional precision; lower insertion loss | Antenna feed networks, power dividers, microwave communication circuits, medium-power amplifiers |
| 0.762 mm (30 mil) | Greater mechanical strength for larger boards; noticeably better heat removal | Radar system power amplifiers, long high-frequency transmission lines, large antennas |
| 1.524 mm (60 mil) | Excellent thermal management with high rigidity; resists deformation in harsh environments | High-power RF amplifiers and filters, microwave waveguides, array antenna systems |
The same material behaves differently at 10 mil and at 60 mil, and the trade-offs are consistent enough to plan around.
A 0.254 mm panel gives the lowest dielectric and insertion loss, which is exactly what a short-wavelength high-frequency signal wants. Boards of 0.762 mm and above remain comfortable at medium and low frequencies, but at the very top of the band their loss edges upward. Where the design works near the material’s frequency limit, thin is the safer choice on loss grounds alone.
Thicker boards conduct heat away from hot spots more effectively, because there is more material to spread it through. That is why high-power amplifiers and radar transmitters tend toward the 30 mil and 60 mil options. Thin boards still work in power applications, but they need help in the form of heatsinks, thermal vias or a metal backing, and that help has to be designed in rather than added afterwards. Where heat rather than board area is the binding constraint, the choice between this grade and a high-Dk alternative is worth revisiting, and the same thickness logic applied to RT/duroid 6010LM is a useful comparison.
At 1.524 mm the panel is stiff enough to resist deformation through processing and assembly; thin panels bend more easily and need careful handling at every stage. That difference cuts both ways in a multilayer build. Thin boards make good internal dielectric layers and keep the overall stack height down, while thick boards suit single-layer and double-layer high-power designs where rigidity and thermal mass matter more than compactness.
Processing this laminate means processing a ceramic-filled PTFE, and the thickness decides how much care each step needs. The general sequence for high-frequency material applies, but the parameters differ enough between a 10 mil and a 60 mil panel to treat them as separate jobs; the wider picture is set out in these steps and considerations for surface treatment in high-frequency production.
Thin panels from 0.254 mm to 0.508 mm heat up quickly, and the damage shows as deformation or melting around the hole, so drilling runs at low speed with efficient cooling. Coated or titanium-plated bits reduce wall roughness. Thick panels from 0.762 mm upward demand more cutting force and stronger tooling, and a multi-step drill sequence is used to stop the hole wall cracking in deep holes.
On thin panels the critical variables are pressure and temperature precision, because either one drifting produces warping or delamination in a panel with very little stiffness to resist it. On thick panels the priority shifts to uniformity: uneven pressure across a heavy stack leaves defects that follow the thickness variation rather than the material.
Laser cutting suits thin panels because it avoids the mechanical stress that causes cracking, and a moderate speed keeps edge burrs down. Thick panels are normally cut mechanically, with sharp tooling and a controlled path, followed by edge polishing to remove the stress concentrations that would otherwise become crack initiation points.
Every board has to be clean before metallisation, and the tolerance for cleaning differs with thickness. Thin panels are handled gently through chemical cleaning so the copper is not over-etched. Current density during plating needs controlling to prevent the wall becoming too thick on a thin board, and etching time has to be long enough on a thick board to avoid uneven or over-etched circuits.
Thin boards benefit most from optimised copper layouts and an external heatsink. Thick boards dissipate heat effectively on their own, though high-power designs still need a proper thermal solution rather than relying on the laminate alone. In soldering, thin panels must avoid excessive heat to prevent deformation or delamination, while thick panels may need a longer profile simply because their heat capacity is higher.
The pattern that emerges is simple: choose the thinnest panel that carries the required power without extra thermal hardware, and choose a thicker one when rigidity, thermal mass or ease of handling outweigh the extra loss. Where the design sits at the edge of the frequency band, thin wins. Where it sits at the edge of the thermal budget, thick wins.
If the constraint turns out to be neither, but board size, then the dielectric constant becomes the deciding property and a different grade is the better answer; the guidance in this article on Rogers 6010 specifications and manufacturing covers that branch of the decision. This material does its best work when loss and heat are both demanding at once, which is exactly the situation in a high-power RF front end.
Frequently Asked Questions
High-frequency and high-power RF work: power amplifiers, radar system transmitters, antennas, filters and microwave waveguides. Its ceramic-filled PTFE construction provides both low dielectric loss and thermal conductivity well above a standard PTFE laminate.
0.254 mm (10 mil). The dielectric and insertion loss are lowest on the thin panel, which is why it suits short-wavelength high-frequency signal paths. Boards of 0.762 mm and above are comfortable at medium and low frequencies but lose a little performance at the top of the band.
When heat removal or rigidity is the binding constraint. The 60 mil panel manages thermal load best and resists deformation in harsh environments, which suits high-power amplifiers, microwave waveguides and array antenna systems.
Thin panels need low-speed drilling with efficient cooling and coated bits to prevent wall roughness. Thick panels need harder tooling and a multi-step drill sequence to avoid cracking during deep-hole processing.
Yes. Intermediate values such as 1.0 mm are available for designs where a specific impedance target or a fixed mechanical envelope rules out the standard options.
