How a dielectric constant of 10.2 changes what thickness means on RT6010LM, from line geometry and loss to heat removal, rigidity and the process parameters that follow the panel.

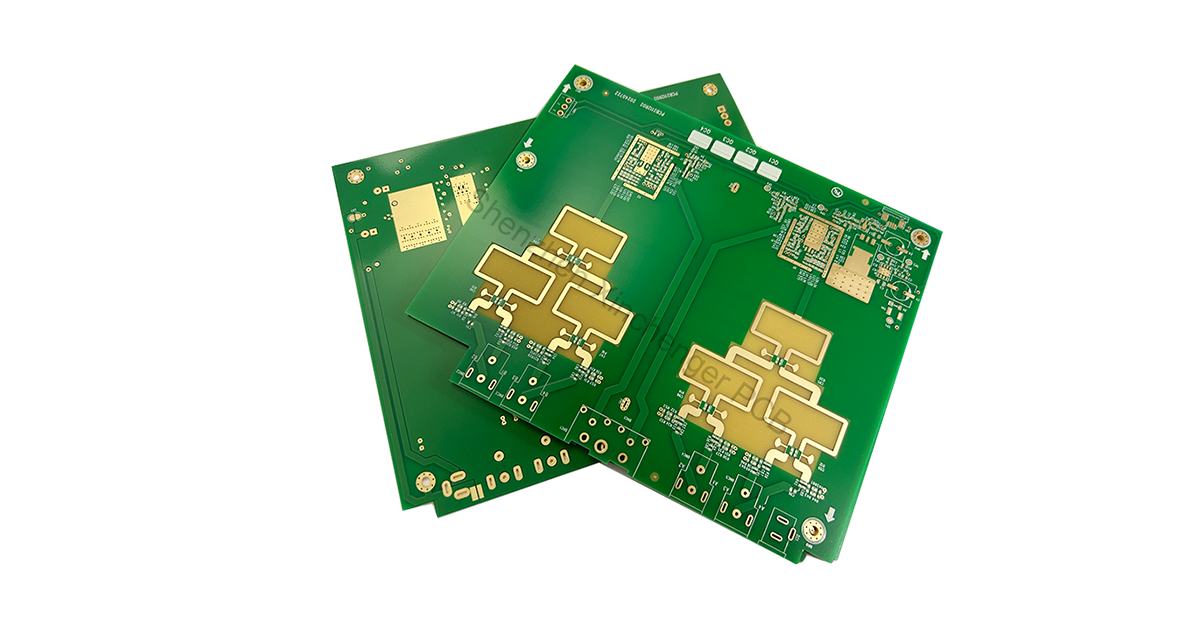

RT6010LM is a microwave laminate with a dielectric constant of 10.2 and a dissipation factor of 0.0023. That combination is unusual, and it is the whole reason the material exists. A dielectric constant three times higher than a typical RF laminate means a quarter-wave line is roughly a third of the length it would otherwise need, so circuits that would be too large to fit can be made on a small board without changing the frequency plan.
The trade for that density is that everything becomes more sensitive to geometry. RT6010LM is supplied in several thicknesses, and here the thickness is not just a mechanical choice; it is part of the electrical definition of the circuit. This article works through the standard options, what each one does to signal loss, heat and mechanical behaviour, and how processing has to change as the panel gets thicker or thinner.
On a laminate with a low dielectric constant, the physical structure is large enough that an ordinary thickness tolerance represents a small fraction of the cross-section. At Dk 10.2 the traces and dielectric spacing are much smaller for the same electrical function, so the same absolute tolerance becomes a significant part of the geometry. Fabrication accuracy and stack-up control matter more on this material than on a low-Dk grade, not because the process is different but because the structure it has to hold is finer.
The compensating advantage is that the material is dimensionally stable and mechanically strong, which keeps that finer geometry in place through processing. It is also why the grade suits antennas, filters and power amplifiers where board area is fixed by the enclosure rather than by the electrical design. The wider case for the grade is set out in this article on the advantages of RT6010LM.
Four thicknesses cover the common cases: 0.254 mm, 0.508 mm, 0.762 mm and 1.524 mm, with custom values such as 1.0 mm or 2.0 mm available where a specific impedance or mechanical envelope demands them.
Each one shifts the balance between signal loss, heat removal and stiffness.
| Thickness | Characteristics | Typical Applications |
|---|---|---|
| 0.254 mm (10 mil) | Minimal signal loss in a compact panel; suits high-density integration | High-frequency couplers, filters, phased-array antennas, lightweight RF modules |
| 0.508 mm (20 mil) | Improved mechanical strength with lower insertion loss | High-frequency power amplifiers, small radar feed networks |
| 0.762 mm (30 mil) | Better heat spreading with balanced electrical and mechanical behaviour | High-power filters, antennas, microwave communication devices |
| 1.524 mm (60 mil) | Excellent thermal conductivity and high mechanical strength for harsh environments | High-power transmission lines, base station antennas, large radar systems |
The four effects below are the ones that come up in design reviews, and they rarely point the same way.
Thin panels minimise signal and insertion loss, which is why 0.254 mm is the default for short-wavelength high-frequency work. Thicker panels are better suited to medium and low frequency designs, but at high frequency their loss rises slightly. On a high-Dk material this effect is worth checking carefully, because the field is concentrated in a smaller volume and the dielectric loss contribution carries more weight.
A thicker board dissipates heat more effectively and suits high-power applications without additional thermal hardware. Thin boards need supplementary heat dissipation to stay at a stable temperature, which usually means thermal vias, copper pours or a heatsink. Where the thermal requirement dominates the electrical one, a laminate designed around thermal conductivity rather than dielectric constant can be the better answer, and the thickness trade-offs for RT6035HTC are a useful contrast.
Thicker panels provide higher mechanical strength and reduce the risk of deformation during processing and assembly. Thin panels are more susceptible to mechanical stress and need more careful handling, particularly during handling between operations and during panel singulation.
Thin boards are easier to drill and cut but may need additional support structures inside a multilayer stack, where there is little material to resist the pressure of lamination. Thick boards require higher drilling force and take longer to cut. The practical consequence is that a mixed stack containing both extremes usually needs process planning rather than a single parameter set.
RT6010LM is a ceramic-filled PTFE composite, so the standard assumptions about FR-4 do not hold. Hole walls need proper activation before plating, cutting needs attention to edge quality, and the whole process has to be tuned by thickness. Much of this overlaps with the rules that apply to other PTFE grades, and the sequence for processing RO5880 boards is a useful reference for the chemistry involved.
On panels from 0.254 mm to 0.508 mm, sharp bits matter more than speed. Drill speed and feed rate are both reduced to limit hole wall damage, and titanium-coated bits reduce friction. On panels of 0.762 mm and above, high-hardness bits handle the greater cutting force, and multi-step drilling with a pre-drill and ream sequence stops the wall cracking or warping.
Thin boards need precise pressure control to prevent warping and delamination, and gradual heating and cooling to limit the internal stress that builds up in a low-stiffness panel. Thick boards need uniform pressure distribution so that bonding completes evenly across the stack.
Laser cutting is preferred on thin boards for smooth edges and minimal stress, with a moderate speed to keep burrs down. Thick boards are cut mechanically with sharp tooling and smooth paths, then edge-polished to reduce stress concentration, which is the point where micro-cracks would otherwise begin.
Thin boards need gentle chemical cleaning to avoid over-etching, while thick boards need even treatment to prevent thickness variations across the panel. Current density is controlled during plating so thin boards do not end up over-plated, and etching time is set so thick boards come out uniformly. In soldering, thin boards must avoid prolonged high-temperature exposure to prevent warping or delamination, and thick boards need a longer preheat to heat through evenly.
Where the primary requirement is a compact high-frequency circuit, thin boards are the right answer: they contain the field tightly, keep loss low and preserve the area saving that the high dielectric constant was chosen for. Where the primary requirement is power handling and mechanical survival, thicker boards take over and the area saving becomes a secondary benefit.
Before settling, it is worth confirming that the dielectric constant, rather than the loss figure, is the property that actually matters to the design. The comparison in this guide to choosing between RO3010 and RO6010 covers that question directly, and the manufacturing guidance in this article on Rogers 6010 specifications and processes covers the production side in more detail.
Frequently Asked Questions
A dielectric constant of 10.2 and a dissipation factor of 0.0023, with high dimensional stability and good mechanical strength. The high Dk is the defining property because it allows compact circuits at a fixed frequency.
Because the traces and dielectric spacing are physically much smaller for the same electrical function, so the same absolute thickness tolerance represents a larger share of the cross-section. Fabrication accuracy matters more as a result.
0.762 mm (30 mil) and 1.524 mm (60 mil). Both spread heat more effectively and provide the mechanical strength to survive processing and assembly, which suits high-power filters, base station antennas and large radar systems.
Sharply, slowly and with cooling in mind. Reduced drill speed and feed rate limit hole wall damage, and titanium-coated bits cut friction. On thicker panels, hard tooling and a pre-drill and ream sequence keep the wall intact.
Yes, on thin panels. It gives smooth edges with minimal mechanical stress and, at a moderate speed, keeps burrs down. Thick panels are cut mechanically and then edge-polished to remove stress concentrations.
