Core Differences: Material Composition and Application Divergence

Ceramic-filled process-friendly 4003C versus PTFE-based ultra-low-loss 3003 — Dk, Df, fabrication and applications compared to pick the right Rogers laminate.

Table of Contents

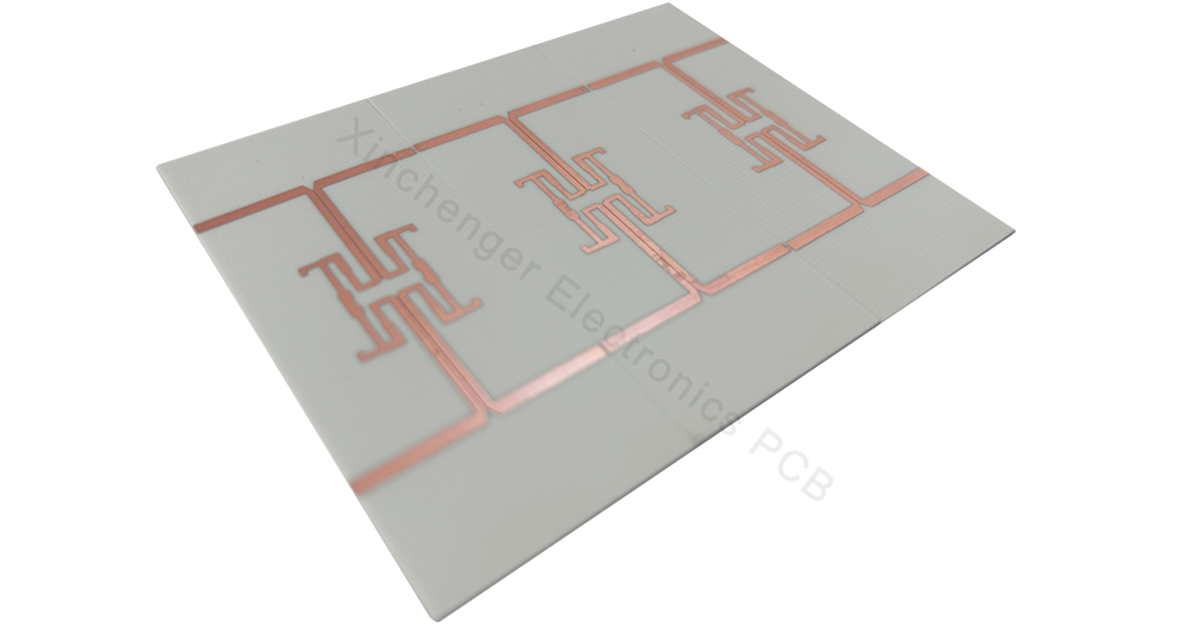

Although both Rogers 4003C and 3003 belong to the RO4000® series glass-reinforced hydrocarbon ceramic laminates, their key distinction lies in the filler material and performance focus, which directly dictates their application areas.

1. Dielectric Material and Electrical Performance

  • Rogers 4003C: Its core is filled with ceramic. This gives it a lower and more stable dielectric constant (DK=3.38, typical @10 GHz), with excellent stability of the DK over a wide frequency range. Its dissipation factor is also very low (Df=0.0027 @10 GHz), meaning significantly reduced signal loss and higher efficiency for high-frequency transmission.
  • Rogers 3003: Its core is filled with Polytetrafluoroethylene (PTFE). While it offers good high-frequency performance, its dielectric constant is relatively higher (DK=3.00, typical @10 GHz) and its dissipation factor is slightly higher than 4003C’s (Df=0.0013 @10 GHz). Its performance leans more towards compatibility with PTFE processing.

2. Mechanical Properties and Fabrication Process

  • Rogers 4003C: One of its greatest advantages is that it does not require specialized through-hole plating processes. Like standard FR-4 epoxy boards, it can be fabricated using standard PCB manufacturing techniques (e.g., mechanical drilling, de-smearing, plasma treatment, or chemical desmear for hole wall activation), greatly reducing production cost and complexity while ensuring excellent reliability.
  • Rogers 3003: As a PTFE-based material, it typically requires special surface treatment (e.g., sodium naphthalene etch or plasma treatment) prior to through-hole plating to ensure good adhesion of the hole wall copper. This adds processing steps and cost, requiring specific expertise from the PCB fabricator.

3. Primary Application Fields

  • Rogers 4003C: Due to its excellent electrical performance, stable DK, and fabrication-friendly nature, it is widely used in commercial microwave and RF applications with stringent performance requirements. Examples include: base station power amplifiers, microwave point-to-point links, satellite communication user terminals, automotive radar sensors, and high-performance GPS antennas.
  • Rogers 3003: Given its PTFE base properties, it is more commonly used in areas requiring very low loss and specific PTFE performance, such as highly loss-sensitive filters, low-noise amplifiers, and certain high-frequency components in aerospace/defense applications.

Discussion on Performance Extensibility

From a technological evolution perspective, the differences between these two materials illustrate distinct extensibility paths for high-frequency laminates:

1. Extension Towards “High-Performance & Low-Cost Manufacturing Fusion” (Represented by 4003C): The success of Rogers 4003C lies in breaking the stereotype that “high performance must equal high process cost.” Its extensibility is evident in:

  • Design Fusion: It allows engineers to combine high-frequency circuit sections (using 4003C) with complex multilayer digital circuit sections (using FR-4) via multilayer lamination (hybrid) technology. This “two-in-one” board ensures signal integrity for critical RF paths while controlling overall cost and enabling complex functionality.
  • Supply Chain Simplification: Its compatibility with standard FR-4 processes allows a broader range of PCB manufacturers to produce it, shortening supply chains, accelerating time-to-market, and facilitating the faster adoption of high-performance RF design into consumer and industrial products.

2. Extension Towards “Ultra-Low Loss & Specialized Applications” (Represented by 3003): Rogers 3003 represents another path, pursuing ultimate purity and consistency of the dielectric material to serve the most demanding performance needs. Its extensibility is evident in:

  • Process Specialization: Although processing is complex, mature PTFE treatment processes enable highly reliable interconnections, suitable for applications with harsh environments requiring long life and high stability.
  • Foundation for Material Systems: As part of the PTFE-based material family, it provides a technical and application foundation for understanding and developing more advanced low-loss materials (e.g., Rogers’ premier RT/duroid® series). In these areas demanding extreme performance, material cost is often secondary to the performance itself.

Summary

In essence, Rogers 4003C is more like a “versatile all-rounder” for practical deployment. Through its innovative ceramic-filled formulation, it delivers top-tier, stable electrical performance while fully embracing the traditional, cost-effective, large-scale PCB manufacturing ecosystem. It is one of the most widely used and cost-effective choices in current commercial RF/microwave fields.

On the other hand, Rogers 3003 is more of a “specialized expert.” Relying on the classic PTFE system, it continues to play an irreplaceable role in applications requiring its specific DK and loss characteristics, as well as in specialized fields with mature processing expertise.

Therefore, for selecting between them: if the priorities are high performance, high stability, ease of manufacturing, and optimal overall cost, 4003C is typically the mainstream recommendation. If the design falls within a specific PTFE material application framework or requires a precise DK of 3.0, then 3003 is the suitable choice. The distinction and coexistence of these two materials vividly illustrate how high-frequency PCB material technology evolves along two deepening paths—”democratizing high performance” and “specializing in cutting-edge performance”—in response to different market demands.

Frequently Asked Questions

Common questions about Rogers 4003C vs. 3003.

What separates RO4003C from RO3003 electrically?

4003C: Dk 3.38 and Df 0.0027 at 10 GHz with a ceramic-filled core. 3003: Dk 3.00 and Df 0.0013 with a PTFE-filled core. 3003 offers lower loss and a different Dk target for designs built around it.

Which is easier to fabricate?

4003C — it processes like standard FR-4 without special through-hole preparation. 3003, being PTFE-based, needs sodium naphthalene etch or plasma treatment before hole plating, adding steps and cost.

What applications suit each material?

4003C: base station power amplifiers, microwave point-to-point links, satellite terminals, automotive radar sensors and GPS antennas. 3003: loss-sensitive filters, low-noise amplifiers, and aerospace/defense components.

Can the two approaches be combined in one board?

Yes. Hybrid multilayer lamination lets engineers pair 4003C RF sections with FR-4 digital sections, preserving signal integrity on critical paths while controlling overall cost.

Need Rogers 4003C or 3003 PCBs?

We manufacture both laminates and can advise which fits your design. Send us your requirements for a fast quote.

Get A Quote → Fast Reply on WhatsApp
