The complete ENIG line from pre-treatment to RF verification — nickel and gold bath parameter tables, the three flavors of uneven plating, RF-specific gold disciplines and the QC battery that holds it all.
Surface finish quality is make-or-break for RF PCB performance: on boards bound for 5G base stations and radar systems, the ENIG layer is the last chemistry the signal touches before the antenna. Our ENIG stage-control guide covers the bath windows that stop Black Pad at the source; this comprehensive guide walks the entire line end to end — pre-treatment through final RF verification — with the working parameters at each step, and positions the finish inside the wider ENIG vs. silver vs. tin tradeoff space.
High-frequency boards impose three requirements on ENIG that standard PCBs can ignore: thickness uniformity of 3–5 µm nickel and 0.05–0.1 µm gold, adhesion above 1.0 N/mm peel strength, and signal-loss impact held under 0.1 dB at 10 GHz. Every parameter in the sections below exists to satisfy one of those three numbers.
Three steps prepare the copper: ultrasonic degreasing with specialty chemicals to strip organic contamination from fine traces, controlled micro-etching that removes 1–1.5 µm of copper to land surface roughness at Ra 0.3–0.5 µm, and a pre-dip that prevents oxidation while activating the copper for nickel deposition.
The nickel bath is where most defects are born — porosity in this layer causes roughly 80% of Black Pad cases:
| Parameter | Specification | Importance |
|---|---|---|
| Temperature | 85–90°C ±1°C | Deposition rate control |
| pH value | 4.6–5.0 | Phosphorus content (7–9%) |
| Thickness | 3–5 µm | Diffusion barrier |
Gold chemistry runs at 0.8–1.2 g/L concentration — auto-dosing systems are worth the investment — with the bath held at 82–88°C under gentle mechanical oscillation, depositing 0.05–0.1 µm within a ±10% tolerance.
Black Pad traces to three roots: nickel porosity from incomplete plating, residual chemistry from inadequate rinsing, and poor storage in humid or hot conditions. Prevention maps one-to-one — hold phosphorus at 7–9% with regular hypophosphite-level bath analysis for the nickel, run a five-stage countercurrent DI rinse with final resistivity above 1 MΩ·cm, and store finished boards vacuum-sealed with desiccant at 25±3°C and under 60% RH. The root-cause chain behind these controls is dissected in our Black Pad prevention guide.
Non-uniformity comes in three distinct flavors, each with its own fix: lateral variation across the panel points to poor solution circulation and calls for an oscillating agitation system; vertical variation top-to-bottom comes from improper panel spacing — keep at least 10 mm between boards; and micro-scale inconsistency signals unbalanced chemistry, best caught by hourly additive analysis before it drifts into scrap.

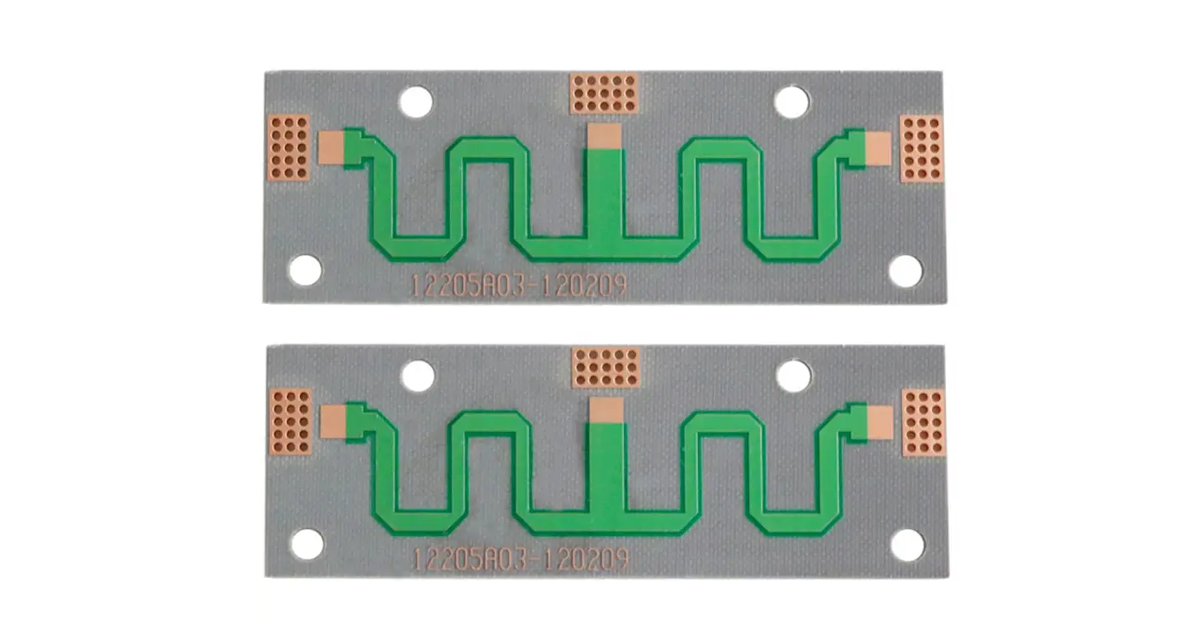

Three RF-specific disciplines sit on top of the standard process: impedance — gold thickness variation shifts effective Dk, so hold it within ±10% of target; low loss — use 99.99% pure gold salts and minimize organic additives that leave residue in the signal path; and solderability — optimize the nickel microstructure for IMC formation while keeping gold below 0.1 µm to prevent embrittlement of the joint.
Two layers of oversight keep the process honest: real-time monitoring of temperature, pH, specific gravity and bath composition on every tank, and a four-part inspection battery — XRF thickness testing at five points per panel, tape peel adhesion per IPC-TM-650 2.4.1, porosity checks via 24-hour nitric vapor exposure, and RF verification through VNA measurement of S11/S21. Where this battery fits into full-board test planning is indexed in our high-frequency PCB testing checklist.
Before awarding an RF program, verify the supplier runs automated plating lines with parameter control, performs daily bath analysis rather than weekly, owns 110 GHz VNA testing capability in-house, and can hand you IMC cross-section reports with each lot — those four answers separate ENIG-capable shops from ENIG-certified-on-paper ones.
Frequently Asked Questions
Porosity in the 3–5 µm nickel layer is the root of roughly 80% of Black Pad defects — the bath must hold 85–90°C ±1°C and pH 4.6–5.0 to deposit a dense, diffusion-capable layer.
Three controls: keep phosphorus at 7–9% with regular bath analysis, rinse through five countercurrent DI stages to above 1 MΩ·cm resistivity, and store boards vacuum-sealed with desiccant at 25±3°C.
Three distinct causes: lateral non-uniformity from poor circulation (fix with oscillating agitation), vertical variation from panel spacing under 10 mm, and micro-scale drift from unbalanced chemistry caught by hourly additive analysis.
It can — the target is under 0.1 dB impact at 10 GHz, achieved by holding gold within ±10% of 0.05–0.1 µm, using 99.99% pure gold salts and minimizing organic additives.
