Ten recurring procurement failures grouped by phase — specification, supplier selection and volume planning — with the audit questions that catch each one before it becomes a field failure.
Most RF and microwave PCB problems that surface in the field trace back to decisions made, or skipped, on the procurement side rather than on the design side. Ten mistakes account for the majority of them, and they cluster into three phases of the buying cycle: writing the specification, choosing the supplier, and managing the build. This guide walks each phase in order, so a purchasing manager can audit their own process against it before the next RFQ goes out.
The most damaging errors happen before any supplier is contacted. Specifying generic FR-4 for a 10 GHz design, or naming a laminate brand without a grade, forces the fabricator to guess, and guesses at RF become loss, drift and failed acceptance tests. Anchor the specification in the actual RF and microwave circuit board material landscape and name exact laminate grades with copper weights and tolerances. Impedance is the second specification gap: buyers who omit target impedance, reference layers and tolerance leave the fabricator no basis for a controlled-impedance process, so state 50-ohm single-ended or 100-ohm differential explicitly and tie it to the controlled impedance design rules the design was simulated against. Surface finish belongs in the same paragraph, because a finish chosen for cost alone can quietly erode the loss budget the material was bought for.
Vetting is where convenience replaces diligence. A fabricator that excels at FR-4 consumer boards may have never run PTFE lamination or held ±5% impedance on a hybrid stackup, yet both logos look identical on a website. Ask for evidence rather than claims: laminate purchasing records, per-lot impedance coupons with TDR traces, and certifications matched to your sector from the certification guide. Industry rankings such as the top PCB manufacturers in China are a starting list, not a qualification. The single most predictive document is the supplier’s own quality evidence pack, structured like the three-indicator quality checklist — dielectric stability, dissipation factor and demonstrated impedance control on your stackup, not a generic datasheet.

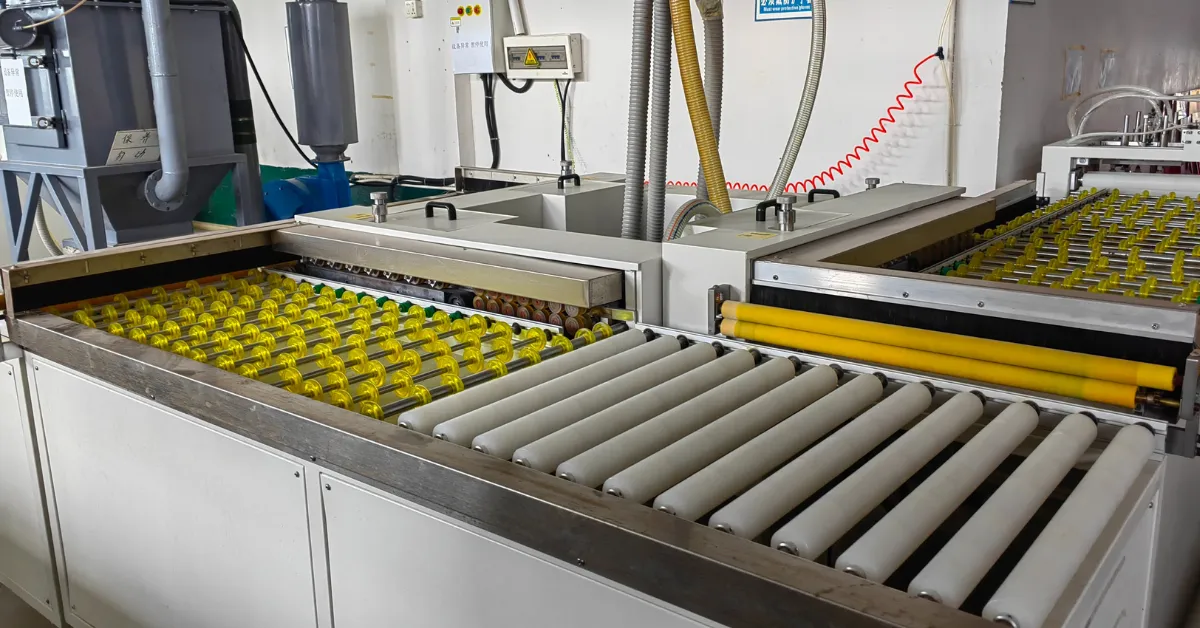

RF builds take longer than standard PCBs, and buyers who quote standard lead times to their own customers create schedule debt that no expedite fee repays. Specialized steps — PTFE pretreatment, sequential lamination, and the eight-stage testing process high-frequency boards require — each add days that are easy to forget and expensive to rediscover. Volume scaling is the mirror-image risk: a prototype house that produced flawless samples may not hold process control at 10,000 panels, so confirm the production line and its controls, not just the sample lab. Finally, plan the incoming inspection you will run on delivery; the high-frequency PCB testing workflow tells you which reports to demand with each shipment so acceptance is a document check rather than a discovery process.
Each phase-one mistake surfaces as a specification dispute, each phase-two mistake as a quality escape, and each phase-three mistake as a schedule slip — and all three are more expensive than the engineering time needed to prevent them. The failure modes behind the most expensive escapes cluster around exactly the process controls a supplier audit should be checking. Procurement managers who institutionalize these three audits — specification, supplier, schedule — stop paying for the same lesson twice.
Frequently Asked Questions
RF performance is grade-specific: two laminates from the same brand can differ in dissipation factor by a factor of three. Naming the exact grade, copper weight and tolerance removes the fabricator's guesswork and makes acceptance testable.
Per-lot impedance coupons with TDR traces, laminate lot traceability, and process capability data for controlled-impedance etch. Certifications confirm a system exists; process evidence confirms it works on your stackup.
Plan for specialized steps such as PTFE pretreatment, sequential lamination and full electrical test. Two to three extra weeks over standard PCB lead times is a realistic budgeting figure for controlled-impedance builds.
Not always. Sample labs and production lines differ in process control. Ask which line will run your volume, and request that line's capability data before committing.
Send your current specification template and we will flag the gaps that most often turn into acceptance disputes — before your next RFQ goes out.
