Can Domestic High-Frequency PCB Materials Replace Rogers? A Technical Gap Analysis

The engineering roots of the domestic-vs-Rogers gap — resin chemistry and the loss floor, reinforcement engineering and Dk stability, process window width and multilayer yield — with what each root means for material buyers.

Table of Contents

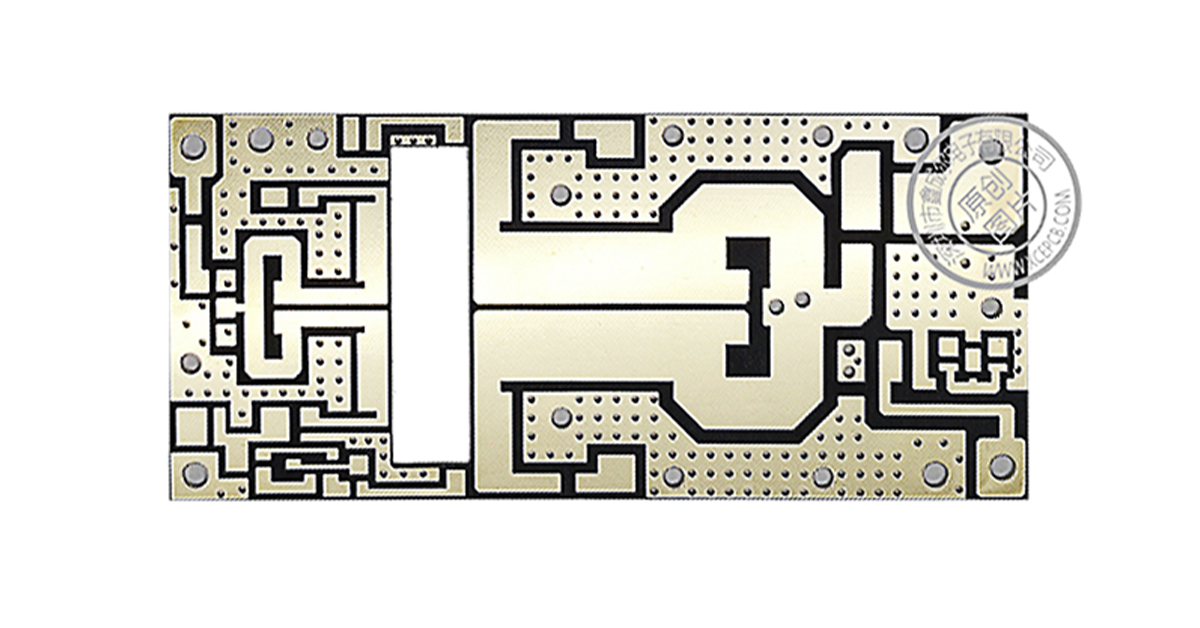

A companion piece to our domestic-versus-Rogers substitution framework, this article goes one level deeper: not which material wins where, but why the gap exists at all. Three engineering roots — resin chemistry, reinforcement engineering and process window width — explain almost every number in the domestic-versus-import comparison, and understanding them tells buyers which gaps are closable and which are structural. The macro context of the localization drive frames the discussion.

Root 1: Resin Chemistry Sets the Loss Floor

The loss tangent gap is a chemistry problem before it is a manufacturing problem. Rogers’ RT/duroid line builds on fluoropolymer chemistry whose Df sits at or below 0.001 — a molecular-level property no process improvement can replicate in a different resin system. Domestic PTFE substrates reach 0.002–0.003, and the newest cyanate ester–benzoxazine copolymers have closed to around 0.0015, approaching RO4835-class performance. The residue shows up exactly where mmWave designs feel it: 15–20% higher insertion loss at 28 GHz. This is the hardest gap to close because the fix is new chemistry, not better processing — which is also why the high-frequency material families diverge so sharply at the top end.

Root 2: Reinforcement Engineering Sets the Stability Budget

Dielectric consistency is decided in the glass. Rogers’ RO4000 series holds Dk variation within ±0.05 above 10 GHz because its ceramic filler loading, particle size distribution and glass-cloth lamination are engineered together — the same discipline visible in the RO4000 series itself. Domestic laminates drift beyond ±0.1 under combined heat and humidity because filler dispersion and resin wet-out remain less uniform, and moisture uptake shifts Dk by 0.05–0.08 after 85°C/85% RH exposure. The engineering root is control of the filler-glass-resin microstructure; the symptom is the impedance drift that mmWave circuits cannot tolerate. Nano-alumina and silica composites — the same filler logic behind domestic F4B PTFE glass-fiber laminates — have narrowed the spread to ±0.08 in the newest generations, proving the gap is closable, layer by layer.

Root 3: Process Window Width Sets the Yield Ceiling

The multilayer gap is fundamentally about how wide the manufacturing window is. Rogers laminates forgive — 40-layer stacks hold thickness error below 3% because the material tolerates a wider lamination thermal profile without voiding or warping. Domestic stock at 20+ layers starts producing delamination and warpage because its window is narrower: the ramp rates, pressures and dwell times that work are closer together, so the same process drift that Rogers absorbs becomes a defect. That is why domestic boards succeed first in simple stackups — the material is good enough wherever the process has slack, a point the industry outlook for China’s IC and HF PCB sector tracks closely.

What the Roots Mean for Buyers

Reading the gap from its engineering roots rather than its datasheet symptoms changes the sourcing conversation. Buyers should ask laminate vendors for the underlying controls — filler loading consistency, resin lot traceability, moisture sensitivity data — not just Dk/Df nominal values, because the nominal values are converging while the controls still lag. And the frequency-band shortcut still holds: sub-6 GHz is a chemistry-and-consistency problem already solved for volume use, mmWave is a process-window problem being solved stack by stack, and aerospace remains gated by certification rather than capability. Teams building that qualification case will find the test-side requirements in our eight-stage HF PCB testing chain.

Frequently Asked Questions

Frequently Asked Questions

Why is the loss tangent gap the hardest to close?

Df is a resin chemistry property: RT/duroid's fluoropolymer sits at ≤0.001 at the molecular level, while domestic PTFE reaches 0.002–0.003 and the newest copolymers 0.0015 — closing the rest requires new chemistry, not better processing.

What causes domestic Dk drift under heat and humidity?

Less uniform filler dispersion and resin wet-out in the glass reinforcement, plus higher moisture uptake — Dk shifts 0.05–0.08 after 85°C/85% RH exposure versus under 0.02 for RO4000-class control.

Why do domestic laminates fail at 20+ layers while Rogers reaches 40?

Process window width: domestic material tolerates a narrower lamination thermal profile, so process drift that Rogers laminates absorb becomes voids, warpage or delamination.

What should buyers ask laminate vendors beyond datasheet values?

Filler loading consistency data, resin lot traceability and moisture sensitivity data — the underlying controls, since nominal Dk/Df values are converging while the controls behind them still lag.
