The six systems that set a microwave PCB factory’s capability ceiling — laser drilling, plasma treatment, LDI, vacuum lamination, ENEPIG/Ag plating and the flying-probe-plus-VNA test bench — mapped to what each unlocks and what fails without it.

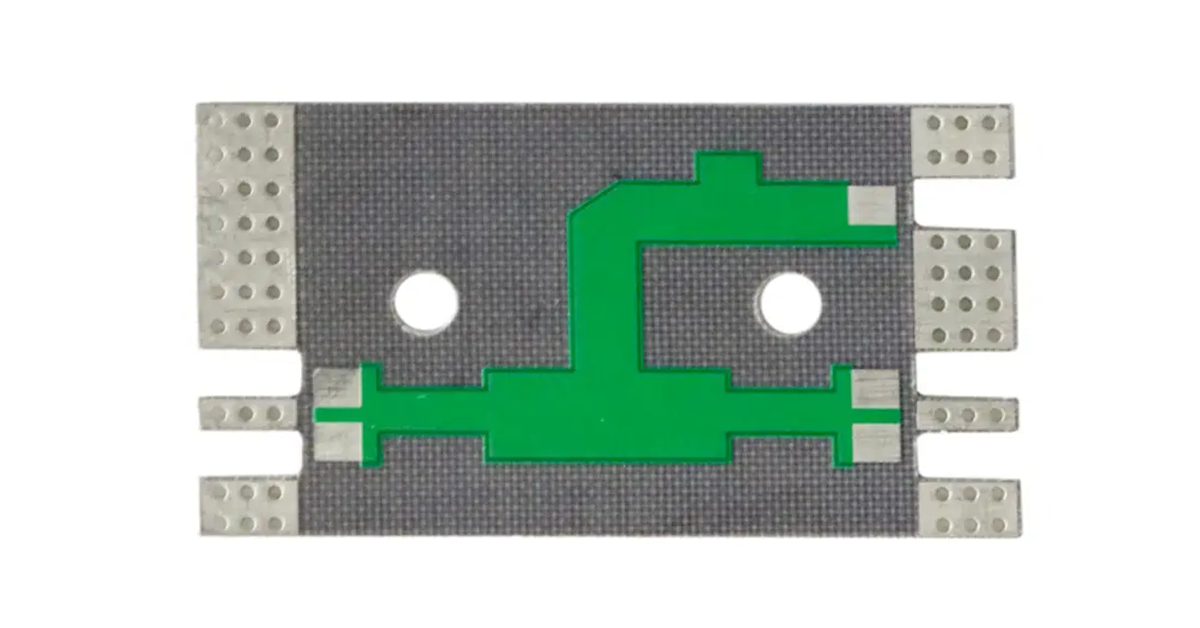

In high-end microwave PCB production, the equipment list is the capability ceiling: every process demand a customer can write into a spec is backed by a machine that either exists in the factory or does not. This guide covers the six systems a high-end microwave PCB fabrication line actually needs, organized by what each one unlocks — and what stays impossible without it.
Mechanical drilling PTFE and ceramic-filled substrates produces burrs and delamination that poison hole-wall metallization — the failure root our hole wall quality guide dissects in detail. CO₂ and UV laser systems drill to ≤25 µm hole diameter tolerance and make HDI blind and buried via structures practical at all. No laser, no microvia capability, no high-end RF work — it is that binary.
Plasma systems remove drilling residue and oxides so hole walls metallize properly, and they chemically activate PTFE surfaces — the step that makes copper adhesion possible on a polymer famous for refusing to bond. The same treatment improves surface roughness toward Rz <1.5 µm, directly cutting signal loss. It is the cheapest machine on this list with the largest yield leverage.
Laser direct imaging at ±5 µm alignment accuracy enables the fine-line patterning that microwave boards live on — microstrip lines and coplanar waveguides without the photomask distortions traditional lithography inherits. Impedance tolerance is decided at exposure, which is why LDI capability and RF credibility travel together; the machine class and its role in the process are detailed in our LDI exposure equipment guide.
Vacuum lamination prevents the voids and layer misalignment that destroy multilayer RF boards, and it holds dielectric thickness uniform — which is what keeps Dk consistent from panel to panel. Compatibility with low-loss prepregs such as the RO3000™ family is a spec worth checking explicitly, because not all presses handle the low-flow chemistry; the lamination quality standards behind this are set out in our low-loss microwave process standards.
Surface finish choice is an RF decision: ENEPIG (Ni/Pd/Au) and immersion silver reduce skin-effect loss relative to legacy finishes, which is why they are mandatory for 5G, mmWave and radar work. Automated chemical control holding plating thickness to ±0.1 µm is what makes the finish predictable rather than nominally present — the finish families and their trade-offs are compared in our ENIG vs silver vs tin guide.
Two instruments close the quality loop. Flying probe testers catch short and open circuits fast, without fixturing cost on prototype and mid-volume runs. Vector network analyzers measure the S-parameters — insertion and return loss — up to 110 GHz that decide whether an RF board actually meets its loss budget. A factory that cannot measure to your frequency cannot ship to your frequency.
Each system maps to a capability a customer can put in a purchase order:
| Equipment | Capability unlocked | Without it |
|---|---|---|
| Laser drilling | ≤25 µm microvias, HDI | No PTFE drilling reliability |
| Plasma treatment | PTFE metallization, Rz <1.5 µm | Hole wall adhesion failures |
| LDI exposure | ±5 µm patterning, ±2% impedance | Photomask distortion errors |
| Vacuum lamination | <1% voids, uniform Dk | Multilayer delamination risk |
| ENEPIG/Ag plating | Low skin-effect finish ±0.1 µm | Excess mmWave loss |
| Flying probe + VNA | S-parameters to 110 GHz | Unverified RF performance |
Invested together, these systems let a microwave PCB manufacturer hold ±2% impedance control, cut insertion loss 15–20% at mmWave frequencies, and meet MIL-PRF-31032 and IPC-6018 — the qualification floor where high-end programs begin. For how the equipment integrates into the full production flow, our Rogers PCB manufacturing process guide and the 3D printing equipment overview for rapid prototyping round out the picture.
Frequently Asked Questions
Mechanical bits produce burrs and delamination on PTFE and ceramic-filled substrates that poison hole-wall metallization; CO₂/UV laser drilling to ≤25 µm tolerance is the reliable path and enables HDI microvias.
It removes drilling residue, chemically activates PTFE for copper adhesion (the polymer otherwise refuses to bond), and improves surface roughness toward Rz <1.5 µm — the best yield leverage per dollar on the line.
ENEPIG (Ni/Pd/Au) and immersion silver reduce skin-effect loss and are mandatory for 5G/mmWave/radar work, provided automated chemical control holds thickness to ±0.1 µm.
Laser drilling and plasma treatment first (reliability floor), LDI second (impedance credibility), then vacuum lamination, plating and the test bench — each unlocking a capability customers can specify.
