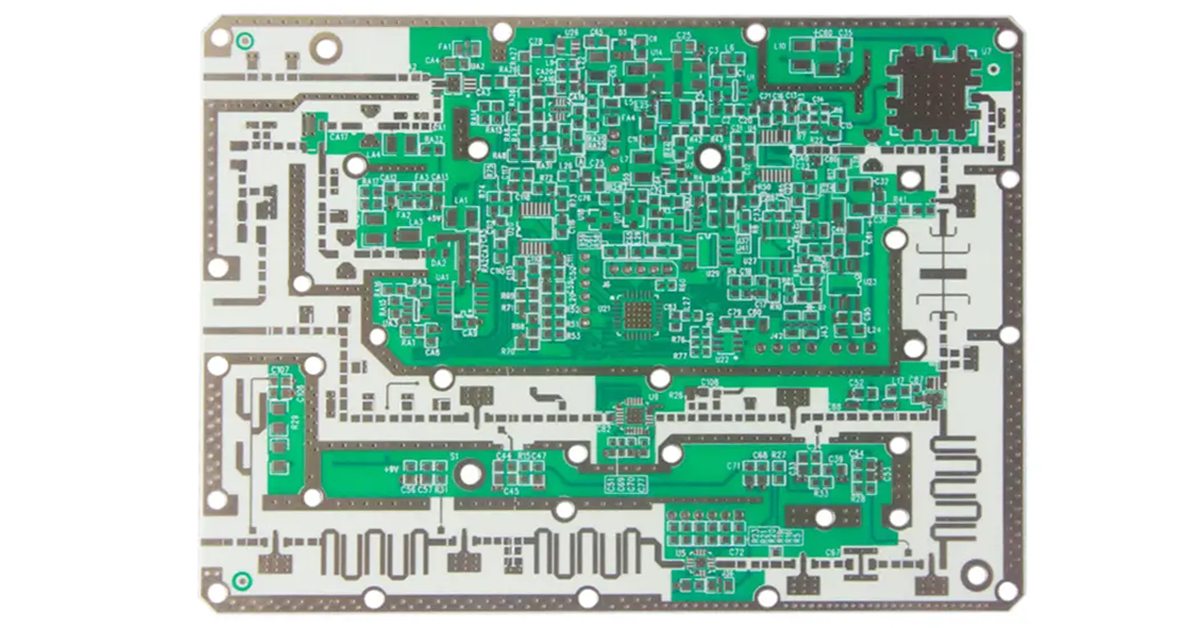

Reliability testing on high-frequency PCBs is not a checklist — it is a set of attacks, each designed against a specific failure mechanism. HALT hunts design margins before fatigue does; thermal shock finds the joints that shatter before they creep; CAF exposes the slow electrochemical migration that no short test can see. Reading each method from the failure mechanism outward is what makes the data usable, and it is the organizing idea of this guide. The broad test-portfolio view lives in our reliability testing standards guide; here we go mechanism by mechanism.
Highly accelerated life testing does not pretend to imitate the field — it deliberately overstresses the board to find where the design runs out of margin, fast. Four stress stages do the work:
The interpretation step is what separates experienced labs: top manufacturers correlate HALT findings with insertion loss drift at mmWave frequencies, so a mechanical margin finding becomes an RF-behavior prediction.
Where HALT ramps, thermal shock slams — transition rates above 30°C per minute target brittle failure modes: solder joint cracking, via barrel fracture, pad cratering. Liquid-to-liquid chambers — plunging the board between two fluid baths — deliver the fastest transitions and are worth looking for in a supplier’s lab. The military and commercial profiles differ in every column:
| Parameter | Military | Commercial |
|---|---|---|
| Range | –65°C ↔ +150°C | –40°C ↔ +125°C |
| Transition time | <1 min (often 15 s) | <5 min |
| Cycles | 500–3,000 | 50–1,000 |
Afterward, a three-tool analysis maps what broke: cross-sectioning for barrel cracks in high-speed vias, X-ray CT for buried delamination in multilayer stacks, and TDR for impedance shifts along RF transmission lines. When shock actually opens a delamination, the repair triage is covered in our delamination and blistering guide.
Conductive anodic filament growth is the quiet one — copper ions migrate along glass-resin interfaces under bias voltage and humidity, growing a filament until adjacent conductors short. Nothing glows, nothing cracks; the board just dies months in. The standard attack: pre-condition at 85°C/85% RH for 24 hours, apply 50–100 V DC bias with a 10 mA current limit, hold 500–1,000 hours, and pass only if insulation resistance stays within an order of magnitude. SEM/EDX identifies the filament growth paths afterward, and TDR impedance mapping locates microscopic insulation degradation before it completes. The reason mmWave boards care most: skin depth below 1 µm means even marginal interface degradation distorts the fields the signal travels in.
Four trends are making reliability data more honest. Multi-physics coupling runs thermal, electrical and mechanical stress simultaneously instead of serially. In-situ RF monitoring measures S-parameters continuously during aging, so degradation curves replace before/after snapshots. Material-level characterization — nano-CT scanning for 3D void distributions — explains failures at the microstructure level. And AI-predictive models built on Weibull analysis with 10,000+ data points turn test populations into field-life estimates. A pass that arrives without its degradation curve is just a stamp; the curve is the product.
When evaluating whether a factory’s reliability claims mean anything, check the specifics: certifications against MIL-PRF-31032 and IPC-6018DA; equipment depth — HALT chambers with infrared camera integration, two-fluid thermal shock systems, CAF stations measuring leakage below 1 pA; and above all data transparency — ask for test reports with raw data, not summaries. Pair this audit with the factory’s routine test chain (our eight-stage testing process guide covers it) and the certification landscape for HF PCB manufacturers to see the whole quality picture.
Frequently Asked Questions
Finding design margins, not simulating field life: step-temperature and rapid-cycling stress push the board past its design limit while Dk/Df and insertion loss are monitored, exposing weaknesses in days instead of years.
Transition rate: thermal shock slams above 30°C/min (liquid-to-liquid, often 15 seconds) to trigger brittle failures like via barrel cracks, while HALT ramps gradually to hunt margins; military profiles run –65°C ↔ +150°C for 500–3,000 cycles.
Copper filaments migrate invisibly along glass-resin interfaces under bias and humidity; with skin depth below 1 µm at mmWave, even marginal interface degradation distorts signal fields long before a hard short appears.
85°C/85% RH pre-conditioning for 24 h, 50–100 V DC bias at 10 mA current limit, 500–1,000 hour duration, pass criterion of insulation resistance staying within one order of magnitude — with SEM/EDX and TDR mapping for analysis.
Send your application environment and lifetime target and we will propose the test matrix — mechanisms, profiles and acceptance criteria — for your boards.
