Mechanical cutting damages the very properties a high-frequency laminate was bought for. Here is what it breaks, and why a non-contact thermal process fixes it.
Laser cutting is not a convenience in high-frequency PCB manufacturing; on many designs it is the only process that produces an acceptable part. The reason is straightforward: high-frequency circuits depend on the physical geometry of the conductor, and mechanical cutting disturbs that geometry in ways the electrical design cannot absorb. The constraints that already govern processing high-frequency boards get tighter still when the cutting step is done with a rotating bit.
Routing, drilling and milling all work by physical contact, which means the tool introduces mechanical stress into the material. On a laminate chosen specifically for its electrical stability, that stress shows up as electrical damage.

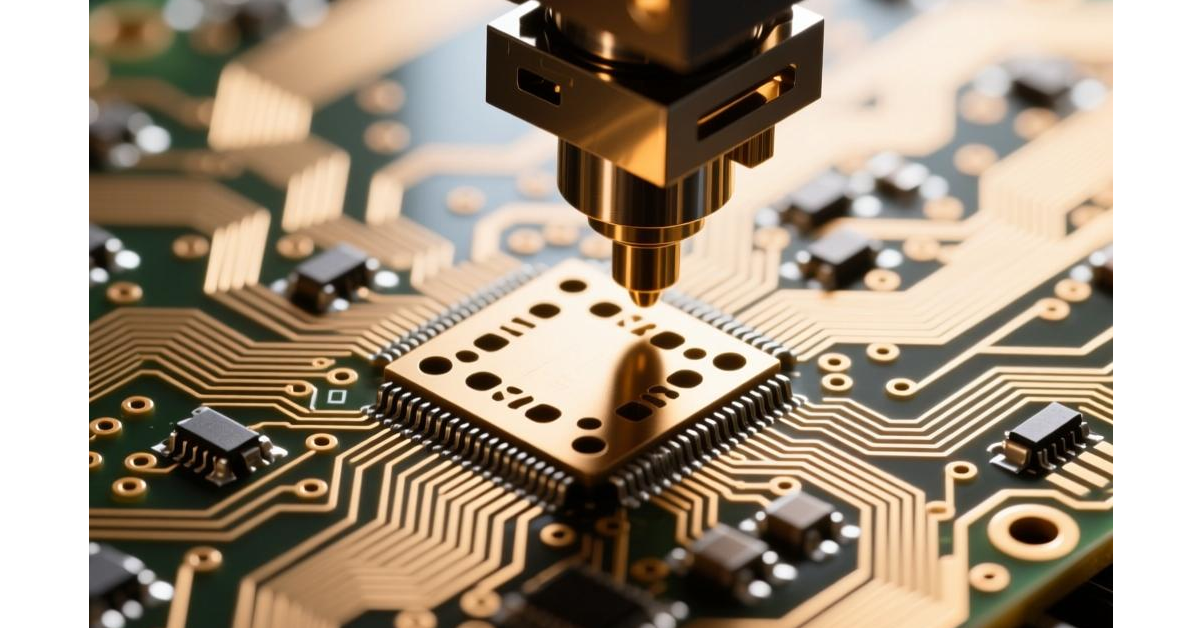

Laser cutting removes the tool from the equation. A focused beam vaporises material along a programmed path, so nothing presses on the laminate, and the surrounding area stays undisturbed. The result is a clean edge with the dielectric properties intact — which is the whole objective in high-frequency work. The same logic applies to the imaging steps upstream: just as high-precision exposure equipment exists to hold fine features on the panel, laser cutting exists to hold them through the separation step.
| Aspect | Mechanical routing | Laser cutting |
|---|---|---|
| Contact with the material | Physical tool contact | Non-contact thermal process |
| Stress introduced | Delamination, micro-cracks, warping possible | No mechanical stress |
| Edge quality | Burrs and uneven edges | Smooth, near-vertical edges |
| Minimum feature size | Limited by drill bit diameter | Microvias below 100 µm |
| Changing the pattern | Requires a physical tool change | Switched from the CAD file |
| Material range | Difficult on soft or brittle laminates | Handles ceramic-filled PTFE and flex circuits |
Four technical reasons explain why the process has become standard rather than optional.
This is the primary reason. High-frequency signals need a consistent impedance along the whole transmission path, and a clean, vertical edge is what delivers it. Laser cutting produces defined contours, so characteristic impedance stays within tolerance and the impedance control the design assumes is actually achieved on the finished board.
Modern high-frequency assemblies are getting smaller and denser: components sit closer, and microvias keep shrinking. Laser drilling produces vias below 100 µm in diameter and cuts intricate outlines that a mechanical bit cannot reach without breaking, which puts it at the centre of high-density interconnect work.
The focused spot allows micron-level accuracy with high repeatability, and because the path is defined by a computer program, a design change is a file change. For prototyping and small-batch runs of different board types, that removes the tooling cost and lead time that mechanical routing carries.
The process is largely material-agnostic within reason: soft flexible circuits and hard ceramic substrates both come out clean. That widens the material options available to a designer, which matters when the electrical requirement already constrains the choice.
On a high-frequency board, laser cutting is a design requirement rather than a process preference. It removes mechanical stress, holds edge quality, and reaches feature sizes that mechanical methods cannot. The complementary view — what the process contributes in capability rather than what it avoids — is covered in our article on the role and advantages of laser cutting, and both perspectives point at the same conclusion: on advanced high-frequency multilayer builds, the cutting method is part of the electrical design.
Frequently Asked Questions
Because routing introduces mechanical stress. Delamination, micro-cracks and rough edges all change the dielectric behaviour or the conductor geometry along the signal path, which appears as reflection and loss at high frequency.
Mechanical drilling is limited by drill bit diameter, while laser drilling produces microvias below 100 µm. That gap is what makes high-density interconnect designs possible at all.
It handles both soft flexible circuits and hard, brittle ceramic substrates, which is broader than mechanical machining manages. That flexibility matters because the electrical requirement already narrows material choice.
The equipment investment is higher, but the comparison is not per machine. Cleaner edges, no tool consumption and pattern changes made from a file affect yield and lead time, which usually decide the outcome.
It is a separation and feature-forming step, not a finishing step. Its quality shows up later, in impedance measurements, coupling results and inspection yields on the finished panel.
