Rogers 4350 is a high-frequency laminate material widely used in RF and microwave applications. As a member of the Rogers RO4000 series of ceramic-filled hydrocarbon composites, it is a preferred choice for many high-performance electronic devices due to its stable electrical properties, low loss, and excellent mechanical characteristics.
I. Primary Application Areas

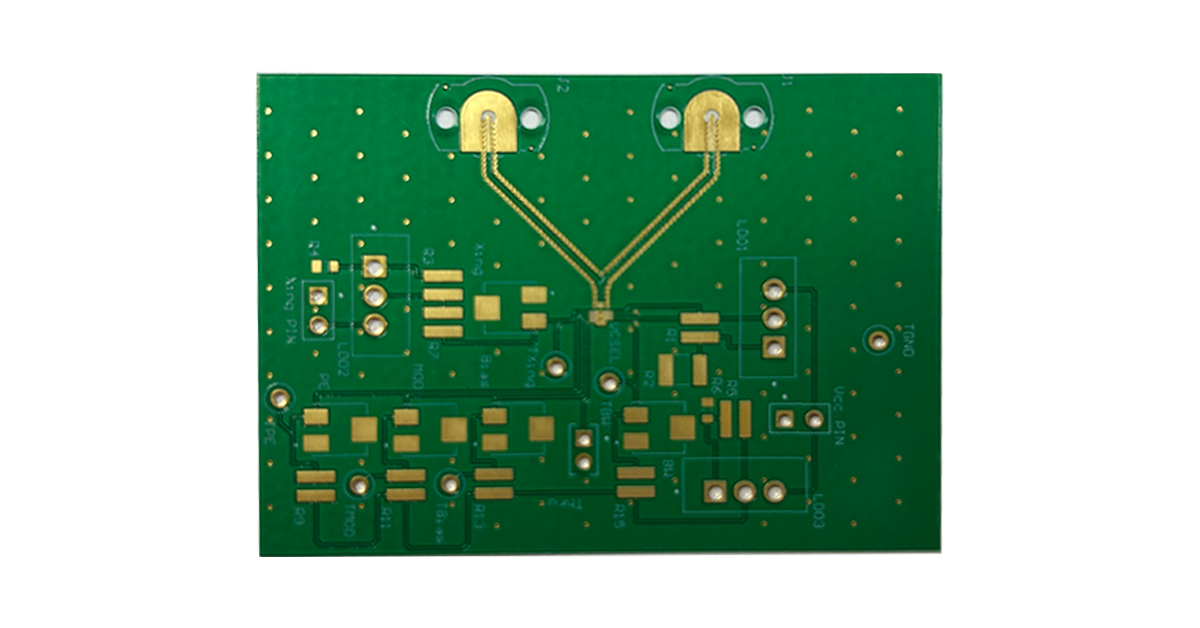

Rogers 4350 circuit boards are primarily employed in scenarios demanding exceptional signal integrity and frequency stability. Typical applications include:
- Mobile communication infrastructure, such as 5G base station antennas, power amplifiers, and filters
- Satellite communication systems
- Aerospace radar and seekers
- Automotive collision-avoidance radar, especially at 77 GHz
- Global Positioning System (GPS) antennas
- High-performance wireless local area network (WLAN) equipment
In these applications, the material’s low and stable dielectric constant and dissipation factor are critical for ensuring low-loss signal transmission and precise impedance control.
II. Core Fabrication Process
The fabrication process for Rogers 4350 shares similarities with standard FR-4 but requires more precise process control to leverage its material advantages. The main steps include:
- Panel Preparation and Inner Layer Processing: The laminate is cut to size, followed by inner layer imaging (lamination, exposure, development). Because the surface is relatively smooth, activation treatments such as plasma treatment are recommended to enhance dry film or liquid photoresist adhesion.
- Etching and Stripping: After pattern transfer, precision etching forms the circuit patterns; the resist is then completely stripped and the board thoroughly cleaned to avoid residues that could degrade performance.
- Lamination: The etched inner layer cores are stacked with prepreg sheets and copper foil and bonded under high temperature and pressure. Prepreg with compatible CTE and dielectric constants must be selected, and the temperature/pressure/time profile strictly controlled to prevent delamination or excessive resin flow.
- Drilling: Mechanical or laser drilling creates via holes. Since Rogers 4350 is harder and more brittle, new high-hardness or specialized drill bits should be used with optimized parameters to minimize hole wall roughness and burrs — particularly important for high-frequency signal transmission.
- Hole Metallization and Plating: Thorough hole wall cleaning and activation ensure uniform electroless copper coverage; subsequent dense, uniform electrolytic copper plating achieves good electrical connection and mechanical strength.
- Outer Layer Imaging and Surface Finish: Based on end use, finishes such as ENIG, immersion silver, or OSP are selected — ENIG being the most common choice for high-frequency applications due to its flatness and stability.
- Solder Mask, Profiling, and Testing: A solder mask protects the circuitry, followed by CNC routing for profiling. Comprehensive electrical testing (e.g., flying probe) and RF performance sampling are mandatory to ensure the product meets design specifications.
III. Key Considerations
Successful processing of Rogers 4350 laminate requires special attention to the following points:
- Material Storage and Handling: Store panels sealed in a dry, cool environment and bake properly before use to remove moisture, preventing blowholes or delamination during lamination.
- Differentiated Process Parameters: FR-4 process parameters cannot be applied directly. All thermal and mechanical processing parameters must be optimized for Rogers 4350’s specific properties, such as its glass transition temperature (Tg) and CTE.
- Cleanliness Control: Maintain an extremely high level of cleanliness throughout fabrication — any dust, grease, or chemical residue can cause performance degradation at high frequencies.
- Impedance Control: This is the core requirement for high-frequency boards. Dielectric thickness, trace width/spacing, and copper thickness must be precisely controlled for consistent impedance, verified post-fabrication using methods like microsectioning.
- Supplier Collaboration: Consult Rogers Corporation’s technical documentation prior to design and fabrication, and collaborate closely with a PCB manufacturer experienced in high-frequency board processing for process qualification and prototyping.
