Rogers 4003 PCB Applications in Communication Equipment

Dk 3.38, Df 0.0027 and FR-4-like processing — how RO4003C earns its place in base stations, Wi-Fi, satellite links and IoT devices while keeping mass production costs in check.

Table of Contents

Rogers 4003C is a high-performance, high-frequency PCB substrate widely used in RF (radio frequency) and microwave communication equipment. As a member of the Rogers RO4000 series, it combines FR-4-like processability with far better high-frequency behavior. Communication equipment demands stable, reliable, and low-loss signal transmission, and the dielectric constant, loss tangent, and coefficient of thermal expansion (CTE) of the material directly impact the quality of signal transmission. Below is a detailed explanation of RO4003C’s specific applications, performance advantages, and relevant design and production requirements.

I. Material Characteristics and Advantages in Communication Equipment

  • Dielectric Performance: A dielectric constant (Dk) of 3.38 at 10 GHz ensures stable and fast signal transmission, helping reduce signal delays caused by material properties. A low loss tangent (Df) of 0.0027 at 10 GHz effectively reduces energy loss during high-frequency transmission — particularly important for antennas, filters, and amplifiers.
  • Thermal Stability and Mechanical Properties: A Z-direction CTE of 46 ppm/°C, close to FR-4, provides excellent dimensional stability in multilayer boards — no delamination or warping under frequent temperature fluctuations. Thermal conductivity of 0.5 W/mK, though modest, can be managed through design optimizations such as heat sinks.
  • Processability: Processed with conventional PCB manufacturing techniques — drilling, etching, lamination — similar to traditional FR-4, making it cost-effective for mass production and suitable for multilayer designs integrating multiple functional modules.
  • Electromagnetic Compatibility (EMC): Low dielectric loss and good EMC performance make it an important material for reducing electromagnetic interference (EMI) and maintaining circuit stability, particularly suitable for base stations, routers, and other devices requiring high-precision signal processing.

II. Specific Applications in Communication Equipment

Wireless Base Stations

Wireless base stations are core components of modern communication networks, especially in high-frequency 5G and 4G LTE applications where large amounts of high-frequency signals and data must be processed. The low dielectric loss and high-frequency stability of RO4003C make it an ideal choice for base station antenna modules, filters, and power amplifiers:

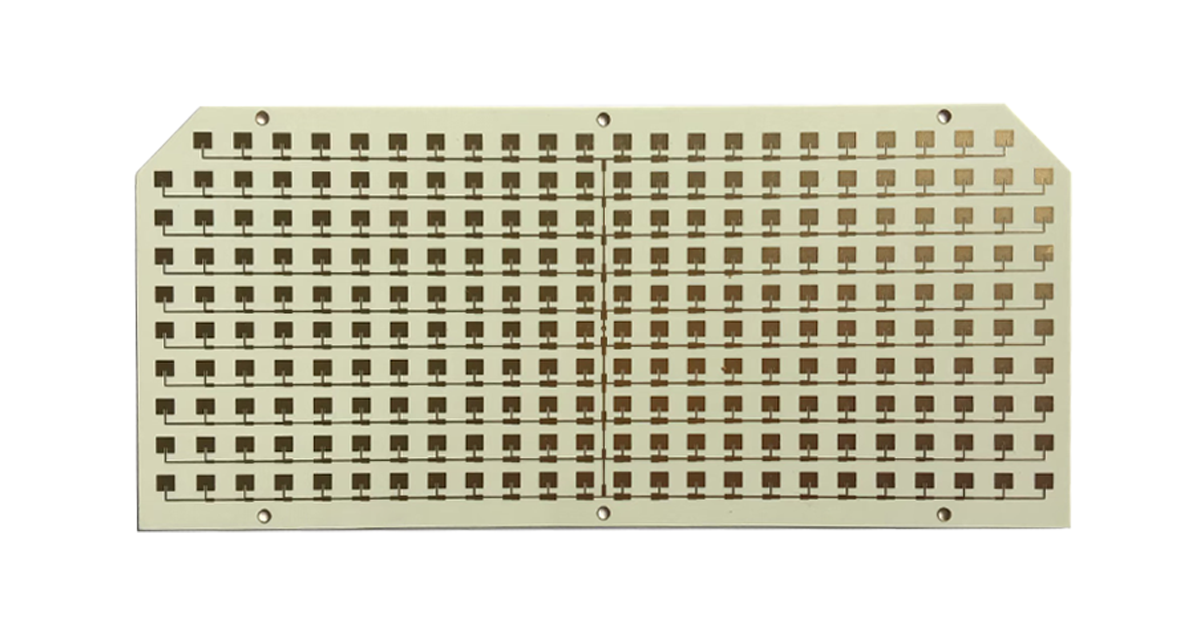

  • Antenna Arrays: In base station antenna design, 4003C ensures efficient propagation of high-frequency signals while minimizing energy loss, improving the coverage and quality of signal transmission.
  • Power Amplifiers (PA): The low-loss characteristics reduce energy loss in power amplifier circuits, enhancing power output efficiency and reducing heat generation — especially important for equipment operating for extended periods.

Wi-Fi and Wireless Local Area Network (WLAN) Devices

In WLAN devices such as Wi-Fi routers and access points, RO4003C PCBs are widely used in high-frequency signal-processing modules. With the expansion of the wireless spectrum — particularly above the 5 GHz band — transmission efficiency and reliability become critical:

  • RF Modules: The stable dielectric properties ensure low-loss transmission of RF signals in high-frequency ranges, reducing signal reflection and attenuation; commonly used in router RF front-end modules.
  • Filter and Antenna Design: In Wi-Fi devices, filters and antennas are critical components determining signal quality. 4003C ensures efficient signal emission and reception while reducing unnecessary noise interference in filter designs.

Satellite Communication Systems

Satellite communication systems rely on extremely high-frequency signal transmission, often exceeding 10 GHz. RO4003C performs excellently in such applications, particularly in ground-station receiving equipment and satellite uplink RF modules:

  • High-Frequency Transmission Lines: Transmission lines must have very low losses to ensure signal strength and clarity over long distances — 4003C meets these standards, enabling extremely low energy attenuation.
  • Radar Modules: Satellite communication often involves radar detection and navigation functions. 4003C in these RF modules ensures precise processing of high-frequency signals, reducing signal delay and distortion.

RFID and Internet of Things (IoT) Devices

RFID and IoT devices are increasingly used in various communication networks, often operating in high-frequency environments that require low power consumption and efficient data transmission:

  • RFID Antenna Design: Rogers 4003C improves antenna performance in RFID devices, ensuring stable communication between tags and readers while reducing signal loss in high-frequency environments.
  • IoT Gateways: In IoT gateway designs, 4003C is often used in signal-processing and wireless-transmission modules, ensuring efficient data handling and transmission in complex radio frequency environments.

III. Key Design and Production Considerations

  • Signal Integrity Design: Despite the material’s strengths, careful attention must still be given to trace layout and layer structure during design to minimize crosstalk and signal reflection.
  • Thermal Management: In high-frequency, high-power applications such as base-station power amplifiers, proper thermal management systems are necessary. Heat dissipation can be optimized by adding heat sinks or improving PCB layout.
  • Environmental Testing and Reliability: Communication equipment often operates in extreme environments — high temperature, humidity, and significant electromagnetic interference. Production RO4003C PCBs must undergo rigorous environmental testing, including thermal cycling, humidity, and salt spray tests, to ensure long-term reliability and stability.

IV. Conclusion

Rogers 4003C, with its excellent high-frequency performance, low dielectric loss, and good processability, has become a top choice for critical components in communication equipment — providing stable signal transmission in wireless base stations, Wi-Fi devices, satellite communication, and IoT devices, while reducing production costs through its compatibility with FR4 manufacturing processes. For engineers weighing it against PTFE-ceramic alternatives, our comparison of RO4003C versus RO3003 material composition and applications and the full range of high-frequency circuit board applications can help narrow the choice, so engineers can fully leverage the advantages of 4003C to achieve high-performance, reliable communication equipment.

Frequently Asked Questions

Common questions about Rogers 4003C in communication equipment.

What are the key specifications of Rogers 4003C?

Dk of 3.38 at 10 GHz, loss tangent of 0.0027 at 10 GHz, Z-axis CTE of 46 ppm/°C (close to FR-4) and thermal conductivity of 0.5 W/mK — a low-loss profile with FR-4-like processability.

Why is RO4003C popular for mass production?

It is processed with conventional PCB techniques — drilling, etching, lamination — just like FR-4, making it cost-effective for volume production and multilayer boards that integrate multiple functional modules.

Which communication applications use RO4003C most?

Wireless base station antenna arrays, filters and power amplifiers; Wi-Fi/WLAN RF front-ends, filters and antennas; satellite ground-station and uplink RF modules; and RFID/IoT antennas and gateways.

How does RO4003C differ from RO3003?

RO4003C is a ceramic-filled hydrocarbon laminate processed like FR-4, while RO3003 is a ceramic-filled PTFE with lower loss for millimeter-wave uses. See our detailed comparison of the two material families.

Building Communication Equipment on RO4003C?

Base-station, Wi-Fi and satellite boards on RO4003C — stocked, impedance-controlled and fast-turned. Send your design for a quote.
