Double-sided multilayer PCBs carry the dense, complex circuits behind most modern electronics, and their manufacturing stretches across lamination, drilling, etching, copper deposition and plating. The full flow is an extended version of the
high-frequency multilayer PCB manufacturing process, and each step below carries its own control points.

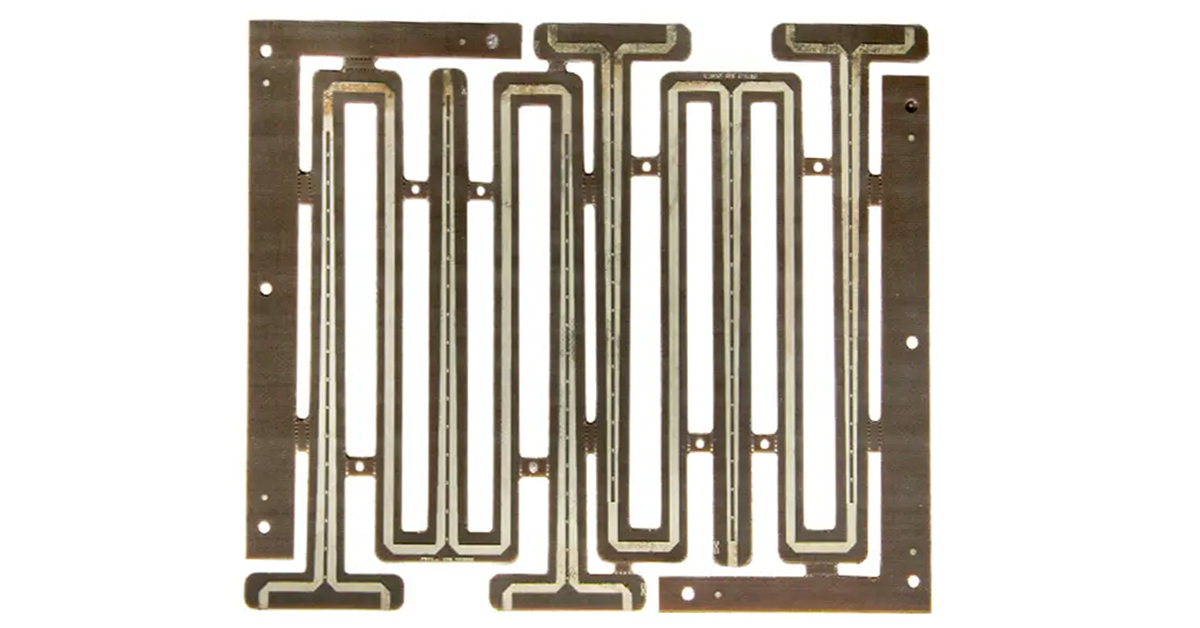

The Eight Key Production Processes
From raw material to finished board, the process runs through eight stages. The overall cadence matches the standard high-frequency PCB production stages; what follows focuses on the decisions that matter inside each one.
1. Material Preparation
Production starts with substrate selection — FR-4, aluminum substrates and copper substrates are common, chosen for electrical, thermal and mechanical properties. Layer count and thickness determine the copper foil, prepreg and inner-layer specs; getting these wrong surfaces later as delamination or conductivity problems, not as an obvious material error.
2. Inner Layer Fabrication
Inner layers decide the board’s electrical performance. The sequence — cleaning, pattern transfer, etching, cleaning, AOI — demands tight control of etch speed and depth to avoid opens and shorts. Automated Optical Inspection catches small defects while they are still cheap to fix, before the layer disappears inside a press.
3. Lamination
Lamination fuses inner layers, copper foil and insulation into one unit under heat and pressure. Temperature, pressure and timing govern bond strength and layer-to-layer alignment accuracy; sequential lamination under controlled pressure prevents air bubbles and delamination. The alignment and expansion-contraction behavior at this step is analyzed in the
compression alignment and expansion guide.
4. Drilling
Drilling creates the interlayer connections, and precision is everything — a misaligned or burred hole becomes a signal problem. CNC drilling handles standard holes; laser drilling takes over for microvias, blind vias and buried vias, where hole wall smoothness and accuracy demand it.
5. Copper Deposition and Electroplating
Electroless copper lays a thin conductive layer on non-conductive surfaces to create the pathways between layers; electroplating then thickens it for conductivity. Solution concentration and temperature need precise control — uneven copper shows up later as poor solderability and degraded signal transmission.
6. Outer Layer Transfer and Etching
Photolithography and dry film transfer the pattern to the outer layers, then etching removes unwanted copper. Etch accuracy is what actually delivers the designed line width and spacing; over-etch means open circuits, under-etch means shorts.
7. Surface Treatment
Surface finishes protect against oxidation and preserve solderability. HASL, immersion silver and immersion gold are the common routes, with ENIG favored on high-performance boards for its oxidation resistance and conductivity. The trade-offs between them are compared in the
ENIG vs silver vs tin surface finish guide.
8. Inspection and Quality Control
Electrical testing verifies continuity and impedance; visual inspection and AOI catch surface defects; X-ray verifies blind and buried via alignment and interlayer registration. The role each inspection type plays is summarized in the
inspection types guide — skipping any of them pushes defect detection to the customer’s incoming test.
Precautions During Processing
Eight stages produce the board; a handful of controls keep it inside spec. These group into four areas.
Temperature and Humidity Control
Excess temperature in lamination, drilling or plating delaminates or deforms the substrate; too little heat leaves weak adhesion. Humidity matters as much — absorbed moisture raises the dielectric constant of insulation and distorts both signal quality and dimensional stability, so a controlled low-humidity environment is part of the process, not a nicety.
Impedance and Alignment Control
Impedance is set by material choice, layer spacing, line width and etch quality, and it must be verified by test, not assumed. Alignment errors between layers cause signal interference and unstable transmission, especially where signal and ground layer distribution is sensitive; optical alignment and automatic adjustment during stacking keep registration inside tolerance.
Hole Quality Management
Rough hole walls or inconsistent diameters degrade solder joints and electrical connectivity, particularly on blind and buried vias where rework is nearly impossible. Appropriate drilling processes, optimized parameters and proper hole plating together determine whether a via is reliable.
ESD, Chemicals and Environment
Static discharge damages components and degrades boards, so wrist straps and anti-static mats are standard equipment. Chemical purity and stability govern every etch and plating bath, and handling plus waste treatment must meet environmental standards — the process generates fumes and waste liquids that require ventilation and treatment systems by design, not as an afterthought.
