The manufacturing route to medical-grade signal integrity — ±0.02 Dk laminates, LDI pattern transfer, vacuum lamination and controlled ENIG — plus the certification and supplier checks that keep it auditable.
In medical electronics, the signal transmission quality of a high-frequency PCB translates directly into imaging accuracy and patient safety — an MRI or CT chain is only as trustworthy as the boards carrying its RF. This guide follows the manufacturing route that guarantees signal integrity from material selection through production; the standards-and-factors view of the same requirement is covered in our medical-grade signal-integrity standards guide.
Three core metrics put medical boards in a class above consumer electronics: signal loss under 0.5 dB per inch, impedance tolerance within ±5%, and phase stability held to under ±2° of deviation. Meeting them consistently is less about any single technology than about production discipline — the applications context is mapped in our medical device applications overview.

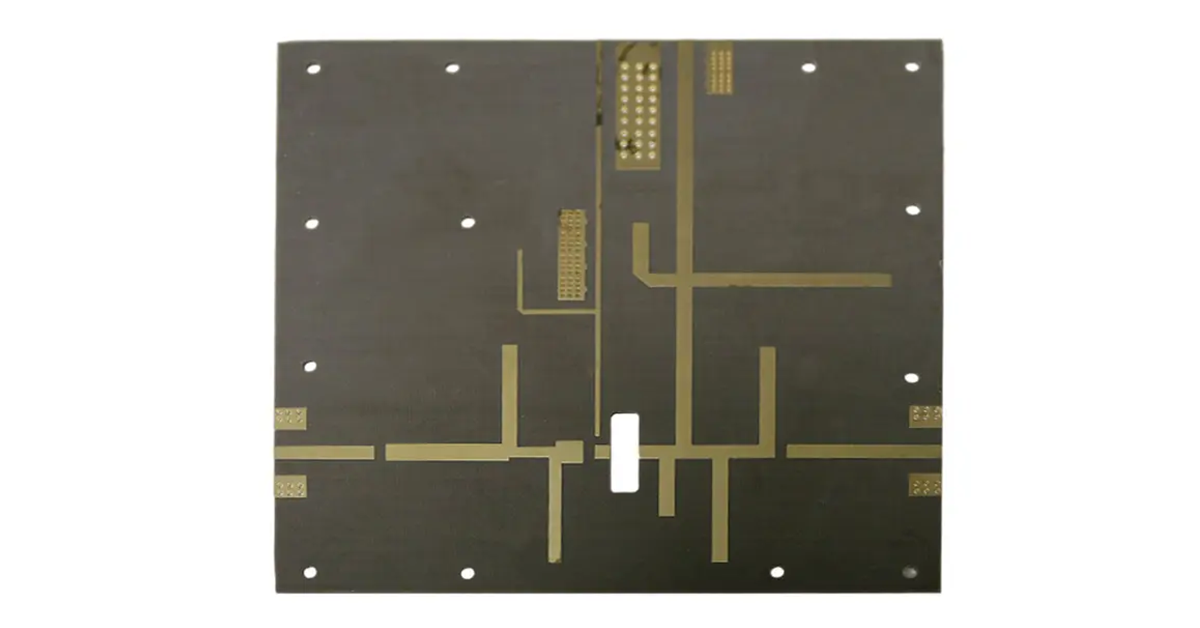

Medical builds start on Rogers RO4000 or Taconic TLY laminates with Dk held to ±0.02, or ceramic-filled PTFE composites delivering Df of 0.0015 at 5 GHz — material stability is what every downstream process inherits.
Laser direct imaging resolves 50 µm lines, etched sidewalls of 85° or steeper minimize edge scattering, and an etch factor above 3:1 keeps impedance consistent across the panel — the imaging equipment behind these numbers is compared in our LDI and exposure machine guide.
Eight to twelve layer hybrid constructions are pressed with dielectric thickness variation held to ±3% and vacuum lamination keeping void content below 0.1% — the same interface disciplines documented in our multilayer lamination analysis.
ENIG with 0.05–0.1 µm gold closes the chain, with selective gold deposition separating signal areas from pad areas and nickel held at 3–5 µm with 7–9% phosphorus — the bath controls live in our ENIG process guide.
Compliance is a production input, not a certificate on the wall: an ISO 13485 quality management system governs the line, biocompatibility testing applies wherever boards contact implantable systems, and qualification runs include 1,000 thermal cycles from –40°C to 85°C plus 96 hours of PCT at 121°C and 100% RH. The certification landscape across industries is compared in our UL / ISO 13485 / IATF 16949 guide.
Four checkpoints separate medical-capable suppliers from the rest: proven medical device production experience, 110 GHz VNA testing capability in-house, signal-integrity simulation reports delivered with design reviews, and Class 1000 cleanroom facilities — ask for evidence of each in the same audit visit, not marketing decks.
Frequently Asked Questions
Signal loss under 0.5 dB/inch, impedance tolerance within ±5%, and phase stability under ±2° deviation — all three held across production lots, not just on the qualification sample.
Rogers RO4000 and Taconic TLY laminates with Dk within ±0.02, or ceramic-filled PTFE composites at Df 0.0015 @ 5 GHz for the lowest-loss imaging chains.
ISO 13485 quality management as the baseline, biocompatibility testing for implantable-adjacent builds, plus 1,000-cycle thermal testing (–40°C to 85°C) and 96-hour PCT at 121°C/100% RH.
Check four things on-site: medical production track record, in-house 110 GHz VNA testing, signal-integrity simulation reporting, and Class 1000 cleanroom facilities.
