From impedance targets and substrate selection to simulation, tolerances, and the four most common failure modes — a practical walkthrough of microstrip and stripline design in high-frequency PCB production.

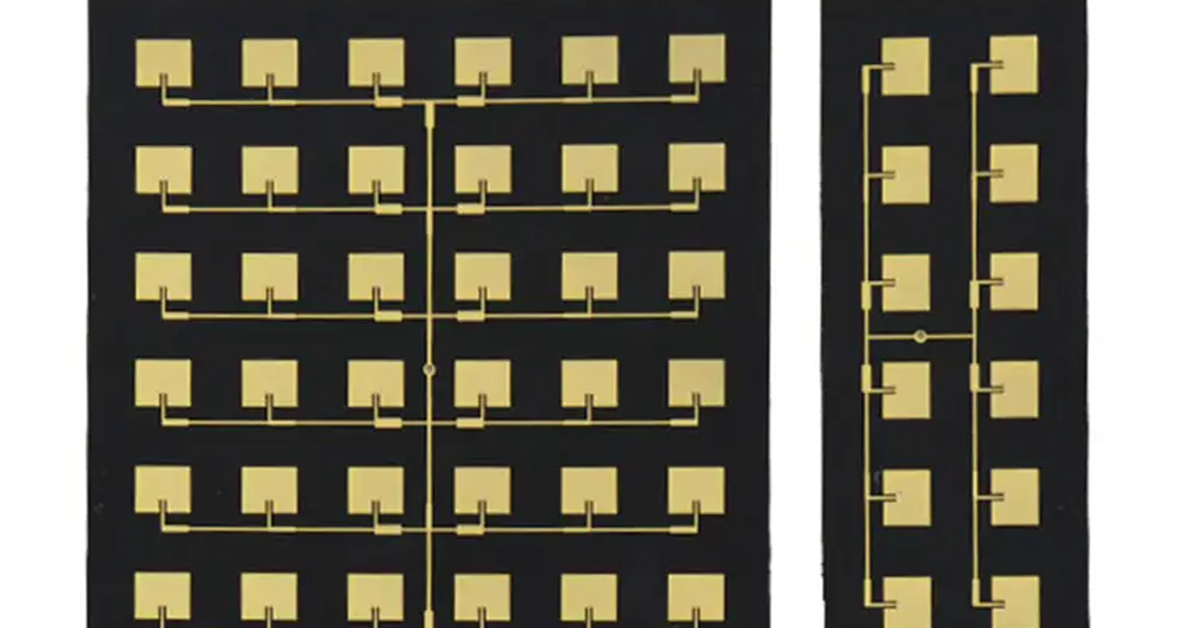

Microstrip: A widely used transmission line structure in high-frequency circuits, typically composed of a metal conductor on top of an insulating substrate. The characteristic impedance of a microstrip is influenced by its trace width, copper thickness, and the dielectric constant (Dk) of the substrate.
Stripline: A conductor buried between two reference planes, commonly used to control signal propagation and reduce interference. Its characteristic impedance is affected by the conductor width, the spacing to each plane, and the substrate characteristics.
Getting these two structures right is the foundation of impedance control in high-frequency PCB manufacturing — every downstream process step assumes the stack-up and trace geometry were defined correctly at the design stage.
1. Determine design parameters. Specify the required characteristic impedance (typically 50 Ω or 75 Ω) and choose appropriate materials and dielectric thickness based on the circuit’s operating frequency.
2. Select a suitable substrate. The Dk and dissipation factor (Df) of the substrate directly impact the performance of microstrip and stripline. Choose a laminate suited to high-frequency applications — options range from cost-effective RO4350B to pure PTFE grades — see high-frequency and RF circuit board materials for the full selection framework.
3. Calculate width and spacing. Use design formulas or field-solving software to calculate conductor width and spacing that meet the target impedance. Maintain appropriate geometry to avoid signal reflections and losses.
4. Layout and routing. Arrange microstrip or stripline positions rationally to avoid crossing other circuits, and keep routing as short as possible to reduce delay and interference.
5. Simulate and optimize. Use electromagnetic simulation software (HFSS, ADS, or similar) to analyze signal integrity and reflection loss, then adjust the design based on results.
6. Output design files. Ensure the fabrication files meet the manufacturer’s requirements, including all parameters and dimensions for microstrip and stripline.
Signal integrity. In high-frequency applications, impedance matching is crucial to avoid reflections and signal loss along the transmission path.
Environmental factors. Temperature and humidity shift material properties over time — select laminates with proven long-term stability for the operating environment.
Manufacturing tolerances. Establish reasonable etch and thickness tolerances so the finished impedance matches the design target; uncontrolled tolerances are a leading cause of performance degradation.
PCB layer structure. Microstrip and stripline placement must respect the overall stack-up design, ensuring proper positioning and connection in accordance with electrical specifications.
Signal reflection. Mismatched impedance causes reflections. Solution: calculate trace width and spacing accurately, apply impedance matching in the circuit, and incorporate matching networks where necessary.
Crosstalk. Interference between adjacent traces. Solution: increase trace spacing, optimize routing to minimize coupling, and use ground planes for shielding.
Temperature variation. Thermal shifts change material properties and signal transmission. Solution: choose materials with good thermal stability and account for thermal expansion in the design.
Manufacturing process limitations. Fabrication errors are inevitable. Solution: set sensible design tolerances, select materials compatible with the fab’s processes, and collaborate closely with your PCB manufacturer on DFM review.
The design of microstrip and stripline is crucial in high-frequency PCB production. By following disciplined design steps and considerations, engineers can ensure effective transmission of high-frequency signals, reduce losses and interference, and enhance overall circuit performance. Material properties, environmental factors, and manufacturing constraints must all be weighed throughout the design process to guarantee the reliability and stability of the final product.
Common questions about microstrip and stripline design.
Microstrip runs on the outer layer with one reference plane beneath it, while stripline is buried between two reference planes. Stripline offers better shielding and less radiation but is harder to probe and rework; microstrip is easier to fabricate and tune but radiates more.
50 Ω is the industry standard for RF and microwave signal paths, and 75 Ω appears in some video and cable applications. The choice affects trace width, so it should be fixed before layout begins.
Higher Dk narrows the trace needed for a given impedance but increases loss and slows signal propagation. The Dk value must remain stable across your operating frequency band for predictable performance.
Yes. Etching undercuts and copper thickness variation can shift impedance by several ohms. Specifying controlled-impedance manufacturing with defined tolerances keeps the finished board within the design window.
