Impedance control as a tolerance budget for 0.05 mm microstrips — set in EM simulation, protected by material choice, spent by trace width/dielectric/copper geometry, and verified by TDR plus system-level testing.
A 0.05 mm microstrip leaves no room for unaccounted error: a trace width deviation of ±0.005 mm alone shifts impedance by 2–3 Ω, which is enough to fail a ±5% budget on a 50 Ω line. The way to control impedance at this scale is to treat it as a tolerance budget — decide the total allowance, then allocate it across every step that spends any. This article walks that budget from design through testing, at the width where 5G mmWave and radar boards actually live.
The budget starts before layout. Full 3D EM simulation — HFSS or CST — must carry the real-world variables, not idealized ones: copper thickness variation, dielectric layer tolerances and solder mask loading all consume impedance margin, and at 0.05 mm trace width their contributions are no longer negligible. The simulation output should be a stacked tolerance budget — how many ohms each variation is allowed to spend — rather than a single nominal impedance value. The design-side method is detailed in our controlled-impedance design guide.
Two material decisions protect the allocation. Dielectric: low-loss, thermally stable laminates in the Dk 2.2–3.5 range with proven board-wide consistency — because a Dk gradient across the panel is an impedance error no trace-width discipline can fix. Copper: reverse-treated or very-low-profile foil with roughness below 1 µm, which keeps the effective trace geometry predictable and the skin-effect loss calculable. Where the material families differ, our wiring recommendations and LDI equipment guide cover the pattern-side consequences.

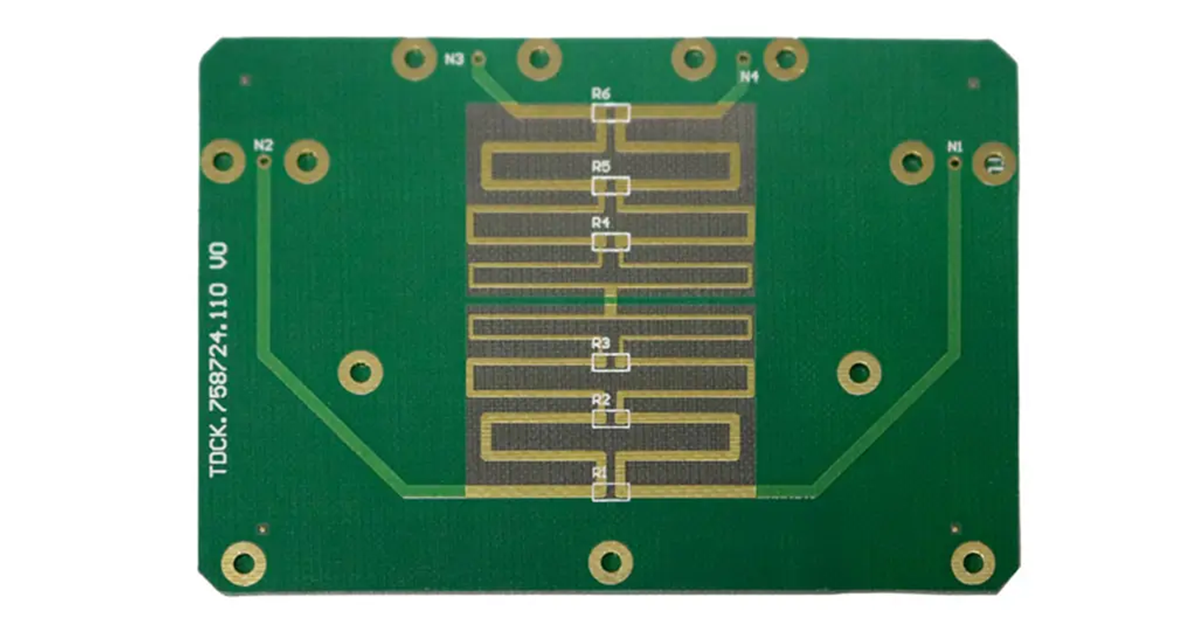

Fabrication spends the budget in three places, each with a named control:
Verification closes the loop in two layers. Electrical: TDR scanning validates impedance, with micro-probe or non-contact techniques where 0.05 mm traces defeat conventional probes, and VNA measurement with mmWave-grade calibration where the application demands it. System-level: eye diagram and bit-error-rate testing connect the impedance number to the performance the customer actually buys — the correlation work that separates a board shop from an RF partner. Pre-baking substrates to drive out moisture and controlling production temperature and humidity protect the measurement itself from drift.
The same budget logic scales down. Traces at 0.03 mm and below for 5G mmWave and THz work shift the allocation further toward mSAP and amSAP semi-additive processes, where etching’s share of the budget shrinks to near zero; machine learning models are beginning to predict manufacturing variation before it lands; and materials like liquid crystal polymer and low-loss modified epoxies widen the consistency options. The precision frontier and its equipment demands are surveyed in our 0.02 mm line width analysis.
Frequently Asked Questions
About 2–3 Ω on a 0.05 mm trace — enough to fail a ±5% budget on a 50 Ω line, which is why LDI-held ±0.005 mm tolerance and undercut-controlled etching are non-negotiable at this width.
Because many small deviations stack: copper thickness, dielectric tolerance, solder mask and trace width each consume margin, and only a pre-allocated budget keeps the total inside ±5%.
Reverse-treated (RTF) or very-low-profile (VLP) foil with roughness below 1 µm — smoother surfaces keep the effective trace geometry predictable and skin-effect loss calculable.
TDR scanning with micro-probe or non-contact techniques where probes cannot land, VNA measurement with mmWave calibration, and eye-diagram/BER testing to tie impedance to real system performance.
Send your impedance targets and stackup and we will return a tolerance budget allocation — step by step, with the process controls named.
