The working parameters behind PTFE hole-wall quality — 80,000 RPM drilling windows, CO₂ vs. UV laser numbers, plasma gas mixtures, electroless copper bath controls and via filling — with acceptance criteria for each.

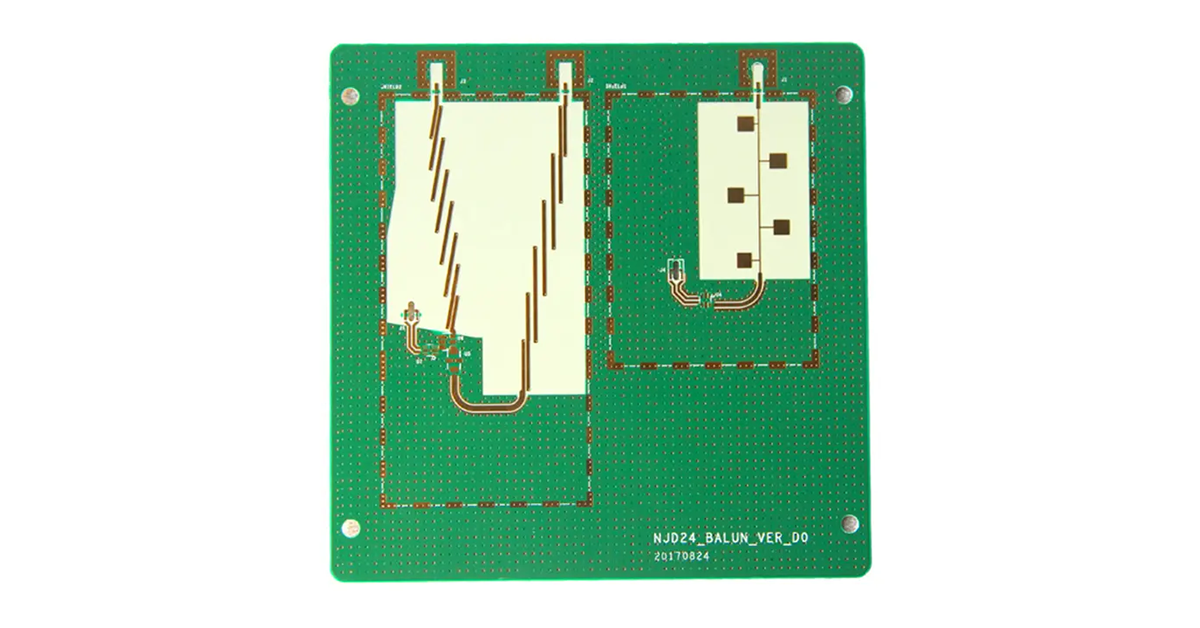

Hole wall quality decides whether a plated through hole survives its life, and on PTFE substrates like Rogers 5880 the margin for error is thin: rough walls mean uneven copper plating, and uneven plating means signal integrity problems downstream. Where our process-chain overview explains why each stage matters, this guide goes one level deeper — the specific parameters, gas mixtures and acceptance numbers that separate a working process from a datasheet fantasy. The material fundamentals sit in our F4B PTFE laminate guide.
Mechanical drilling works on PTFE only inside a narrow parameter window: spindle speed at or above 80,000 RPM, feed rate of 1.0–1.5 m/min, stack height limited to two panels, and diamond-coated carbide bits retired after at most 500 hits. Run inside that window and hole-wall roughness (Ra) drops about 40% versus standard parameters — the difference between a wall that plates and one that delaminates.
For micro-scale holes, laser processing beats mechanical drilling on every axis, and the two laser types divide the work between them:
| Technology | Best For | Surface Roughness |
|---|---|---|
| CO₂ laser | 100–300 µm holes | Ra 8–12 µm |
| UV laser | 50–150 µm microvias | Ra 5–8 µm |
UV laser achieves the smoother walls that high-density millimeter-wave PCBs demand — the same density tier covered in our blind and buried via design analysis and the 40 GHz+ PTFE production process.
Two PTFE-specific treatments, in rising order of aggression: plasma treatment with a gas mixture of 80% argon and 20% oxygen, run 15–20 minutes, cuts wall roughness from roughly 25 µm to 10 µm; sodium naphthalenide etching then sculpts a controlled 1.5–2.0 µm roughness that improves copper adhesion threefold.
Deposition chemistry needs PTFE-specific modification: palladium/tin colloidal catalyst activation at 40°C for 5 minutes, then a specialty PTFE electroless copper bath building 0.8–1.2 µm of coverage. The critical control is bath temperature held at 30±1°C — drift outside that band shows up as voids in the first cross-section.
For demanding applications — 5G massive MIMO antennas, 77 GHz automotive radar, satellite communication boards — via filling earns its extra process step three ways: it eliminates voids in high aspect ratio vias, improves thermal performance, and reduces insertion loss at millimeter-wave frequencies.
Sequence the investment by return: start with drilling-parameter optimization (quickest ROI), add laser drilling once hole sizes drop to ≤0.15 mm, then upgrade to PTFE-specific process lines as volume justifies. Verify at every step with cross-sections confirming above 80% copper coverage, thermal stress testing of three 288°C solder floats, and TDR testing holding impedance within ±5% — the verification planning framework is detailed in our high-frequency PCB testing guide.
Frequently Asked Questions
Spindle speed of at least 80,000 RPM, feed rate of 1.0–1.5 m/min, stack height of two panels maximum, and diamond-coated carbide bits retired at 500 hits — this window cuts hole-wall roughness about 40% versus standard settings.
CO₂ for 100–300 µm holes at Ra 8–12 µm; UV for 50–150 µm microvias at Ra 5–8 µm. UV wins wherever high-density millimeter-wave HDI demands the smoothest walls.
A controlled 1.5–2.0 µm surface roughness that improves copper adhesion roughly threefold, applied after plasma treatment has already cut raw wall roughness from about 25 µm to 10 µm.
On high aspect ratio vias in 5G massive MIMO, 77 GHz radar and satellite boards — filling eliminates voids, improves heat paths and reduces millimeter-wave insertion loss enough to justify the cost.
