Every aerospace RF PCB spec derived from the condition that demands it — launch vibration, vacuum thermal extremes, radiation dose and spectrum crowding — with cost implications and the supplier audit checklist that follows.
NASA statistics attribute roughly 23% of electronic system failures to PCB-related causes — a number that explains why aerospace RF boards are specified the way they are. Every stringent requirement on an aerospace RF PCB traces back to a specific environment: launch vibration, vacuum thermal behavior, radiation, or a crowded electromagnetic spectrum. This guide follows that logic, deriving each specification from the condition that demands it, so the requirements read as engineering rather than ritual. The complementary standards-and-certification view is mapped in our aerospace RF standards guide.
A rocket launch is a broadband shaking machine — 20 G across 5–2,000 Hz — and everything on the payload must survive it. That single condition produces the mechanical requirements chain: vibration resistance above 20 G, mean time between failures beyond 50,000 hours once on station, and survival through 200 full thermal cycles before flight qualification. Boards that would pass commercial screening for years fail launch qualification in seconds, which is why mechanical testing on aerospace RF boards is never waived, only witnessed.
In orbit there is no convection — heat leaves only by conduction and radiation — and the temperature envelope swings from –65°C operational to storage ranges of –80°C to +175°C. The material consequences are specific: substrates must hold dielectric properties across the full range, outgas minimally in vacuum, and shed weight, since payload economics price every gram. Density targets below 2.2 g/cm³ and honeycomb core structures exist for this reason. The PTFE laminate family — the chemistry behind domestic F4B glass-fiber copper-clad laminates — earns its aerospace seat by surviving exactly this combination, and hybrid builds extend it, as our 40 GHz PTFE hybrid lamination case shows.
Space radiation attacks electronics two ways, and the specs answer both. Total ionizing dose tolerance above 100 krad demands substrate formulations and shielding that preserve function over the mission; single-event upset rates below 1E-9 per bit per day drive redundancy and layout choices at the system level. Neither number is negotiable, and both explain why aerospace substrate selection is a chemistry decision as much as an electrical one.
Military and civilian platforms share spectrum with emitters that would drown a commercial board. MIL-STD-461G compliance answers with emissions held below 60 dBµV/m and immunity sustained above 100 V/m — numbers that force ground-plane discipline, shielding and filtering decisions into the PCB design itself rather than being patched at the box level.
The aerospace envelope against a commercial one shows why aerospace boards cost what they cost:
| Condition | Commercial PCB | Aerospace PCB |
|---|---|---|
| Low temperature limit | –20°C | –65°C |
| High temperature limit | 110°C | 150°C |
| Qualification depth | Sampled screening | Witnessed, per-lot documentation |

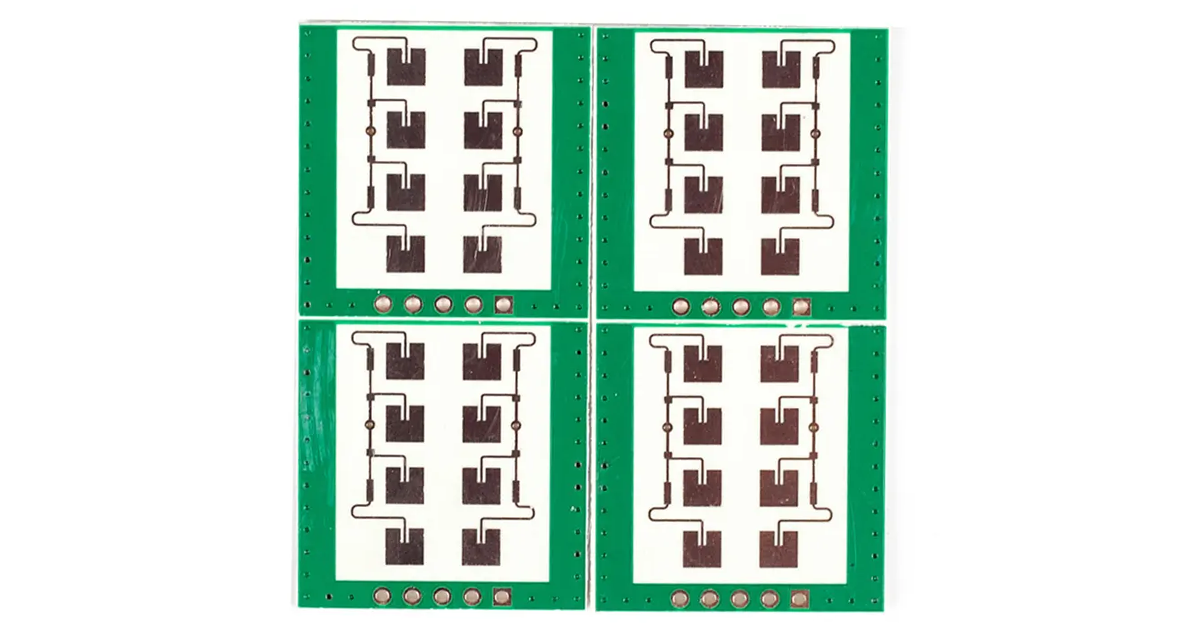

The requirements chain also dictates the audit. Certifications first — AS9100D quality management and a military equipment R&D license, not just ISO 9001. Materials second: in-stock Rogers and Taconic substrates with lot traceability, plus custom PTFE-modified capability. Equipment third: imported vector network analyzers and three-axis vibration systems, because a supplier who cannot test the spec cannot prove it. Reference builds carry the proof — a 32-layer satellite phased array board at insertion loss below 0.5 dB/inch at 40 GHz surviving 1,000-hour salt spray, and a UAV radar build on RO4835 holding ±0.5 dB channel consistency at 35% weight reduction. Where those material families are specified in detail, the application guide for high-frequency PCBs connects the dots.
Frequently Asked Questions
The operating envelope is wider on every axis — –65°C to +150°C versus –20°C to 110°C, 20 G launch vibration, 100 krad radiation tolerance — and each requirement adds material cost, witnessed testing and per-lot documentation.
Vibration survival above 20 G across 5–2,000 Hz, MTBF beyond 50,000 hours, and qualification through 200 thermal cycles — all witnessed, never waived.
AS9100D aerospace quality management and a military equipment R&D license, backed by lot-traceable Rogers/Taconic stock, imported VNA equipment and three-axis vibration test capability.
A 32-layer satellite phased array at under 0.5 dB/inch insertion loss at 40 GHz surviving 1,000-hour salt spray, and a UAV radar board on RO4835 holding ±0.5 dB channel consistency at 35% weight reduction.
Send your environment profile and spec sheet and we will return a build plan with material selection and the qualification test sequence it will pass through.
