What is Design Rule Check, its performance and role in PCB manufacturing?

What DRC checks, what it delivers in yield and reliability, and how to run it — continuously, configured to your fabricator — so designs arrive buildable.

Table of Contents

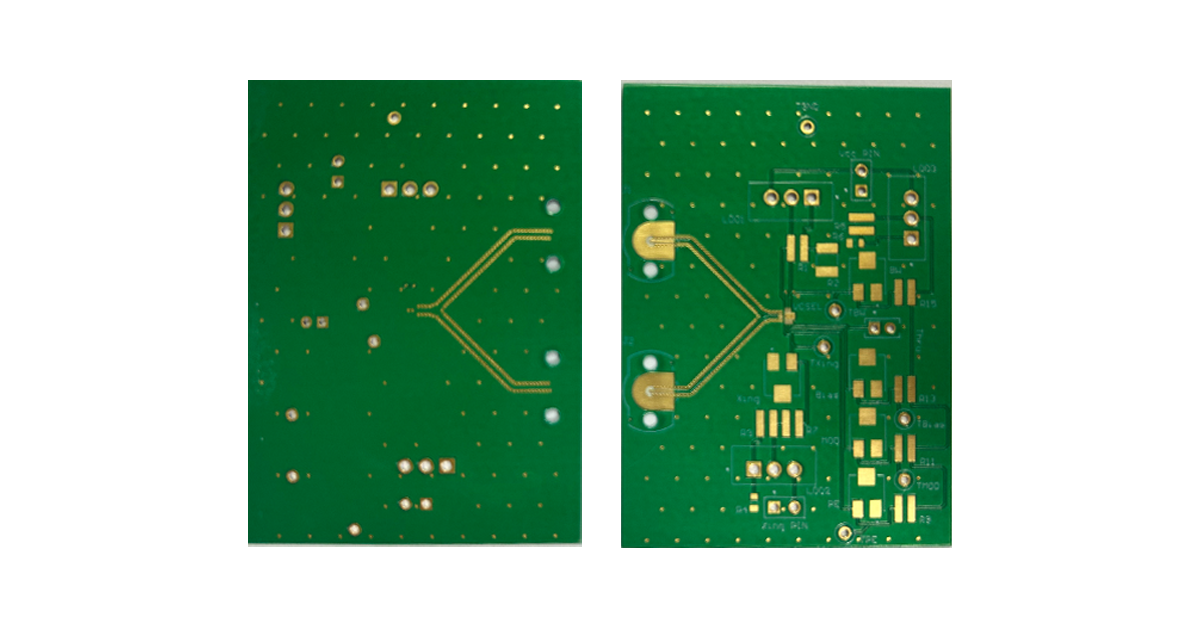

Design Rule Check (DRC) is the automated verification step that stands between a finished PCB layout and the factory — it confirms the design actually meets the manufacturing specifications the boards will be built under. Geometry rules like those behind the trace width and spacing window are exactly what DRC polices, at machine speed.

What the Check Covers

DRC’s capabilities span the whole geometry and connectivity surface of a design:

  • Automated checking: software scans for potential problems far faster than any manual review.
  • Broad rule coverage: line widths, line spacing, pad sizes, through-hole settings — electrical performance through physical layout.
  • Real-time feedback: violations surface during design, while correction is still cheap.
  • Detailed reports: every offending item listed with its location and nature.
  • Configurable rules: checks adjusted to the target factory’s requirements and design goals.
  • Multi-layer capability: layer alignment and layer connections verified across the whole stack — including the board classes with buried structures.
  • Conflict recognition: violations that would affect manufacturing or circuit performance are identified and reported.

What It Delivers

The payoffs show up in yield, reliability and schedule:

  • Manufacturability: designs meeting process requirements raise production yield.
  • Design quality: issues caught in advance improve reliability and performance.
  • Fewer iterations: less rework saves time and cost across the design cycle.
  • Electrical correctness: shorts and opens prevented before they exist.
  • Signal integrity: impedance continuity and differential alignment rules keep high-speed paths clean — the same targets the impedance control process verifies in fabricatiion.
  • Thermal management: heat-sensitive areas designed to thermal requirements before overheating becomes a rework item.
  • Standards compliance: IPC and industry specifications checked automatically — a complement to the production-side considerations the factory applies.
  • Documentation: violations and exemptions recorded for tracking and audit.

Where It Sits in the Flow

DRC is not a single event but a habit: run it continuously during layout, configure the rules to the actual fabricator, and perform a final validation pass before generating production files. Done that way, it reduces risk, cuts iteration cost and ensures the board that arrives at the factory is the board the engineer intended.

Frequently Asked Questions

Frequently Asked Questions

When should DRC be run — at the end or continuously?

Continuously. Real-time feedback catches violations while the affected region is still on screen; a single end-of-design DRC buries the engineer in violations all at once.

Can DRC rules be customized for a specific fabricator?

Yes. Rules are configurable to the plant's actual capabilities — checking against the real line's minimum width and spacing instead of generic values is what makes the check meaningful.

What is the difference between DRC and ERC?

DRC checks physical geometry against manufacturing rules; ERC (electrical rule check) validates connectivity logic like unconnected nets and conflicting outputs. Mature flows run both.

Does DRC replace prototype testing?

No. It prevents geometric and electrical design errors before fabrication, but material behavior, impedance as-built and assembly quality still need physical verification.
