Material pretreatment, hole metallization, lamination and TDR verification: the five phases of RT5880 production, and the points where PTFE punishes shortcuts.

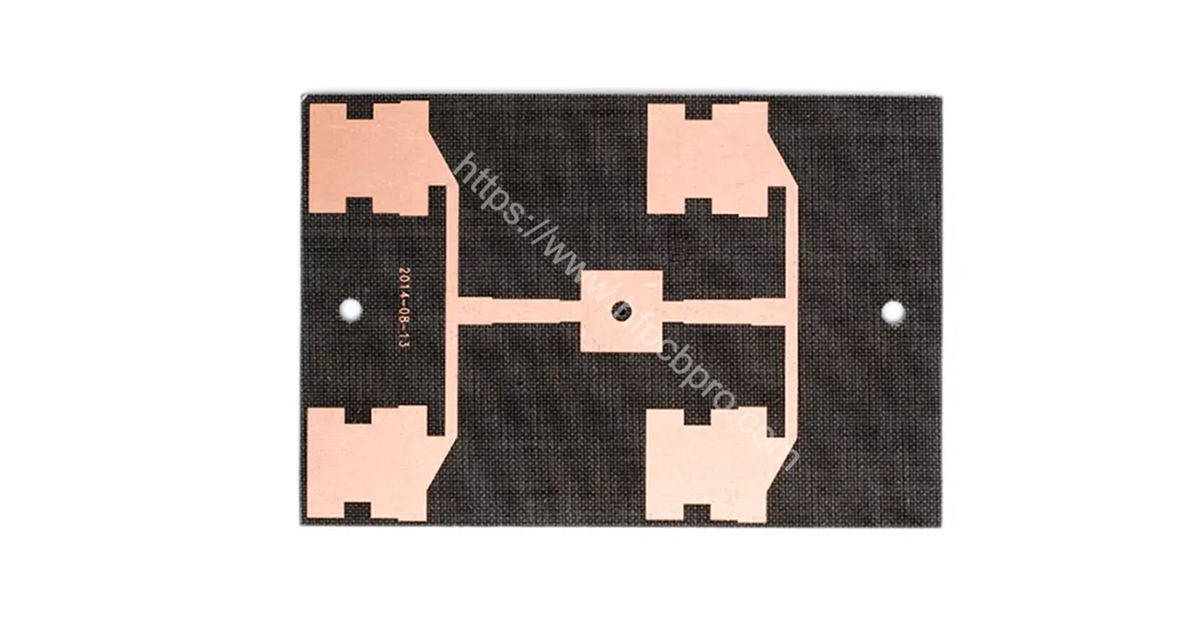

Producing high-frequency boards on Rogers RT5880 is not a matter of running a standard FR-4 line with different material loaded into it. The PTFE substrate is soft, has a low coefficient of thermal expansion and absorbs almost no moisture — three properties that help the electrical performance and complicate nearly every mechanical step. Copper adhesion, drilling, hole metallization and profiling all behave differently, and the tolerance window on line width and impedance is narrow. Where the electrical case for this laminate is set out in our RO5880 core-enabler overview, this article follows the board through the shop floor.
Three characteristics drive most of the process decisions that follow:
Production starts with the Gerber data rather than with the press. The review focuses on impedance-controlled lines and the stack-up, and it produces a written impedance control plan. If the design is a hybrid that combines RO5880 with FR-4, the additional lamination steps are planned at this stage instead of being improvised on the floor. The board-level parameters being verified here are catalogued in our RT/duroid 5880 laminate parameters reference.
Laminates are cut carefully to avoid edge delamination, and the copper surface is then prepared for bonding. Plasma treatment or sodium naphthalene etching is used to make PTFE wettable — without it, the adhesion that later lamination and plating depend on simply does not exist.
Photoresist lamination and exposure use high-resolution dry film in a clean environment. Development forms the etch resist pattern, etching is tightly controlled to keep sidewalls vertical and line geometry precise, and stripping is followed by automated optical inspection. Etch control at this step is what protects the impedance target described in our impedance control steps for high-frequency PCB manufacturing.
Standard black oxide does not work on PTFE. Instead, plasma treatment or chemical etching micro-roughens the copper so that the bonding film has something to grip. Layers are then aligned and bonded under controlled heat and pressure with a compatible bonding film, holding registration and preventing voids or layer slippage.
PTFE smears rather than cuts cleanly, and residue left in the barrel will defeat any later plating. New, sharp drill bits combined with a low feed rate and high spindle speed keep the hole wall clean. This step is one of the reasons RO5880 production is judged on process control rather than equipment alone.
Desmear and activation are the critical pair for PTFE. Specialised etchants such as sodium naphthalene, or plasma treatment, remove residue and micro-roughen the hole wall so it becomes hydrophilic. A palladium catalyst is then applied to the activated surface, and electroless copper deposits a thin conductive layer — typically 0.3 to 0.5 µm — that metallizes the hole.
Electroplating builds copper thickness in the holes and on the traces, with selective area plating often used to hold impedance where it needs to be. Low-loss, high-frequency grade solder mask inks follow, and registration accuracy matters as much here as it does on the copper layers — the same discipline described in our surface treatment steps for high-frequency production.
Finish choice on RO5880 is driven by two constraints: it must solder reliably, and it must not disturb the RF behaviour of the outer layers. Hot air solder levelling is generally avoided because the thermal excursion stresses PTFE.
| Surface finish | Why it is chosen | Watch-outs |
|---|---|---|
| ENEPIG | Most widely used; excellent for soldering and signal integrity | Higher cost, more process steps to control |
| Immersion silver | Excellent RF performance | Tarnishes; needs controlled packaging and handling |
| OSP | Lower cost for less demanding applications | Limited thermal exposure before degradation |
| HASL | Not recommended on RO5880 | Thermal stress on PTFE; poor surface uniformity |
Routing and profiling use sharp bits and optimised parameters to prevent PTFE fraying or delamination at the board edge. Electrical testing then splits into two parts: continuity testing by flying probe or fixture, and impedance testing by time domain reflectometry on designated coupon traces — the checkpoint that confirms the whole process held its target. The wider set of checks available at this stage is covered in our guide to inspection types and their roles.
Final inspection combines visual checks, dimensional measurement and microsection analysis. Boards are then packed with anti-static separators so that handling does not undo the work.
Producing these boards demands specialised equipment, unusual chemistry, experienced process engineers and strict discipline on the shop floor. That combination is why RO5880 work is more complex and more expensive than standard FR-4 fabrication — and why the process, not the purchase order, decides the result.
Common questions about RO5880 fabrication.
PTFE is soft, has a low CTE and takes up almost no moisture, which helps electrical performance but breaks the assumptions behind standard adhesion, drilling and surface treatment steps. Copper bonds poorly, holes smear rather than cut, and impedance has to be held within roughly ±5%.
Drilling leaves PTFE residue and a hydrophobic barrel. Desmear with sodium naphthalene or plasma, palladium activation and electroless copper all have to work together before plating will adhere — skip any of them and the via fails later under thermal cycling.
ENEPIG is the common default for soldering and signal integrity, with immersion silver giving the best RF performance at the cost of tarnishing. OSP suits lower-cost work. HASL is generally avoided because the thermal excursion stresses the PTFE substrate.
Continuity testing by flying probe or fixture, impedance testing by time domain reflectometry on coupon traces, then visual, dimensional and microsection inspection before packaging with anti-static separators.
Yes, and it is common where cost matters. The hybrid structure has to be planned during the pre-production review, because it adds bonding-film selection and additional lamination cycles that cannot be introduced later.
