How to Verify RT5880 Batch Consistency Through Dk/Df Testing

Sample prep, resonant and transmission-line methods, the ±5% consistency window and the process controls that keep future batches inside it.

Table of Contents

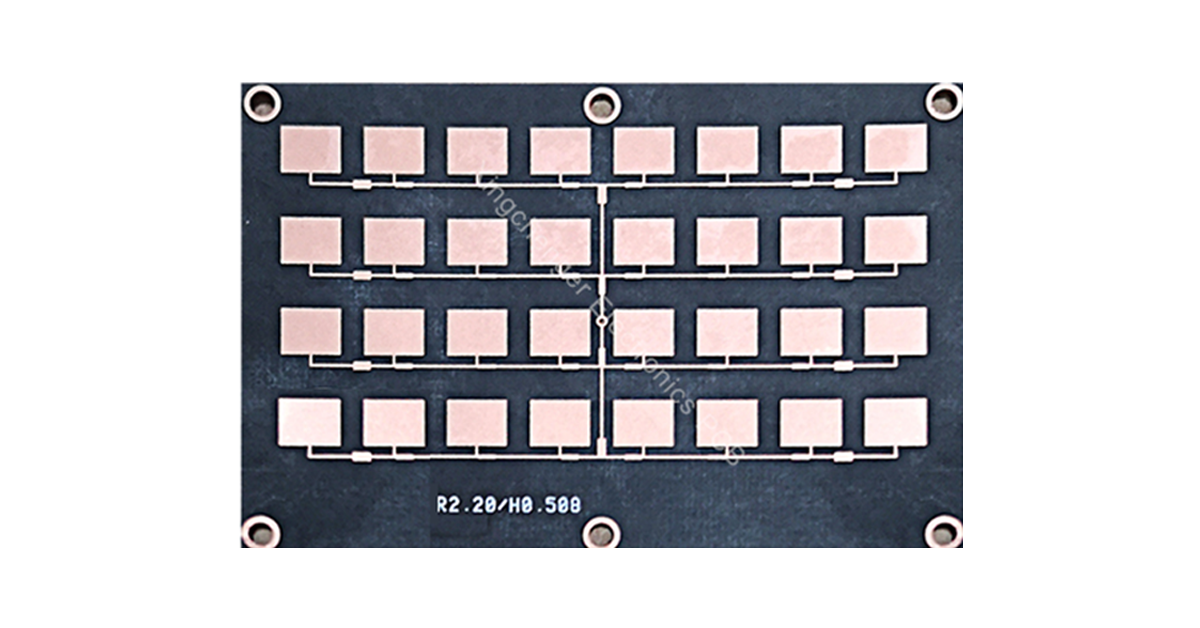

In high-frequency laminate production, RT5880’s value lives in the stability of its dielectric constant (Dk) and dissipation factor (Df) — drift in either shows up directly as degraded signal transmission. Batch consistency is therefore a quality gate, not a formality, and Dk/Df testing is how it is verified. The material’s datasheet parameters define the targets; the procedure below verifies them.

What Dk/Df Testing Verifies

Dk reflects how much electrical energy a material stores; Df measures how much it dissipates in an alternating field. For high-frequency work, stable values across batches are what keep signal integrity predictable — minimizing delay and distortion that no design change can compensate once the material varies.

Pre-Test Preparations

Three preparations decide whether the numbers mean anything:

  • Sample preparation: same-specification samples — size, thickness, surface treatment — drawn from different RT5880 batches.
  • Environmental control: temperature- and humidity-controlled conditions, so fluctuations do not masquerade as material variation.
  • Instrument calibration: vector network analyzers (VNA) or resonant-method equipment strictly calibrated before every run.

Testing Methods

Two methods cover the frequency range, and mature labs run both as cross-checks.

Resonant Method (Best Above 10 GHz)

The resonant method derives Dk/Df from resonant frequency and quality factor, and is the pick for high-frequency ranges:

  • Place the RT5880 sample in the test fixture with proper contact.
  • Scan the resonant frequency and record the corresponding Q values.
  • Calculate Dk and Df from the formulas, then compare across batches.

Transmission Line Method (Best for Broadband)

The transmission line method measures S-parameters on microstrip or stripline structures for broadband analysis:

  • Design standardized transmission line structures to minimize method error.
  • Measure insertion loss (S21) and return loss (S11) with a VNA.
  • Extract Dk/Df through simulation software such as ADS.

Where these methods sit in a wider quality program is mapped in the high-frequency PCB testing guide and the inspection types overview.

Reading the Data

Consistency is a statistical judgment, not a single reading:

  • Statistical comparison: mean and standard deviation across multiple datasets — batch-to-batch Dk/Df variation within ±5% is the accepted consistency window.
  • Trend analysis: long-term batch data reveals process drift or raw-material shifts before they become escapes.
  • Failure investigation: abnormal values trigger inspection of resin content, curing degree or copper-foil bonding.

Keeping Batches Consistent

Verification is retrospective; three practices keep future batches inside the window:

  • Regular testing: batch sampling protocols that catch drift at the source.
  • Process control: lamination temperature and pressure optimized to reduce material variation.
  • Supplier collaboration: Dk/Df control standards agreed with raw-material suppliers.

Standardized Dk/Df testing turns batch consistency from a hope into a measurement — and paired with the material’s own feature profile and the application value analysis, it completes the quality loop that high-frequency circuit design depends on.

Frequently Asked Questions

Frequently Asked Questions

What counts as acceptable batch consistency for RT5880?

Batch-to-batch Dk/Df variation within ±5% across multiple test datasets. Beyond that window, investigate resin content, curing degree and copper bonding before releasing the batch.

Which test method should be used for RT5880?

Resonant methods above 10 GHz for point accuracy; transmission line methods for broadband characterization. Mature quality programs run both and cross-check.

Why does environment control matter so much in testing?

Temperature and humidity shift Dk and Df readings on their own. Without controlled conditions, environmental noise becomes indistinguishable from real batch variation.

What usually causes an abnormal batch?

The usual suspects are resin content drift, incomplete curing or copper-foil bonding process changes — all detectable if the batch data is tracked over time rather than judged batch by batch.
