Everything in the RF and microwave field depends on a physical carrier, and that carrier is the high-frequency PCB. It is tempting to describe the board as infrastructure, but that understates the case: between roughly 300 MHz and 300 GHz, the board’s own material parameters are woven into circuit function itself, and they set the performance ceiling of every communication, radar and sensing system built on top.
In low-frequency circuits the board provides connections and little else. At RF and microwave frequencies three things change at once:
From the power-amplifier boards in macro base stations to the compact feed networks inside small cells, and from smartphone front-end modules to millimeter-wave phased arrays, the same principle applies: signals must reach the antenna with minimal loss and distortion while channels stay isolated from one another. Massive MIMO sharpens the requirement, because integrating dozens of antenna channels puts extreme pressure on lamination precision, impedance uniformity and CTE consistency.
A radar’s detection range, accuracy and resolution track directly with transmit power and receiver sensitivity, and the board sits in both chains. Low loss means less energy wasted in the power-amplifier path and a lower noise figure in the receive path. Electronic warfare raises the difficulty further: T/R modules and frequency synthesizers must hold stable performance across very wide bands, which leans heavily on the board material’s dielectric stability and low dispersion.
The LNA is the first gate of every receiving chain, and its noise figure is precious. Board loss adds directly to insertion loss, while the board’s thermal behaviour holds the transistor at a steady temperature; both matter for reaching ultra-low noise figures. Power amplifiers stress the opposite end: hundreds of watts of heat must leave through the substrate or performance degrades. Metal-backed and ceramic substrates with high thermal conductivity exist for exactly this reason.

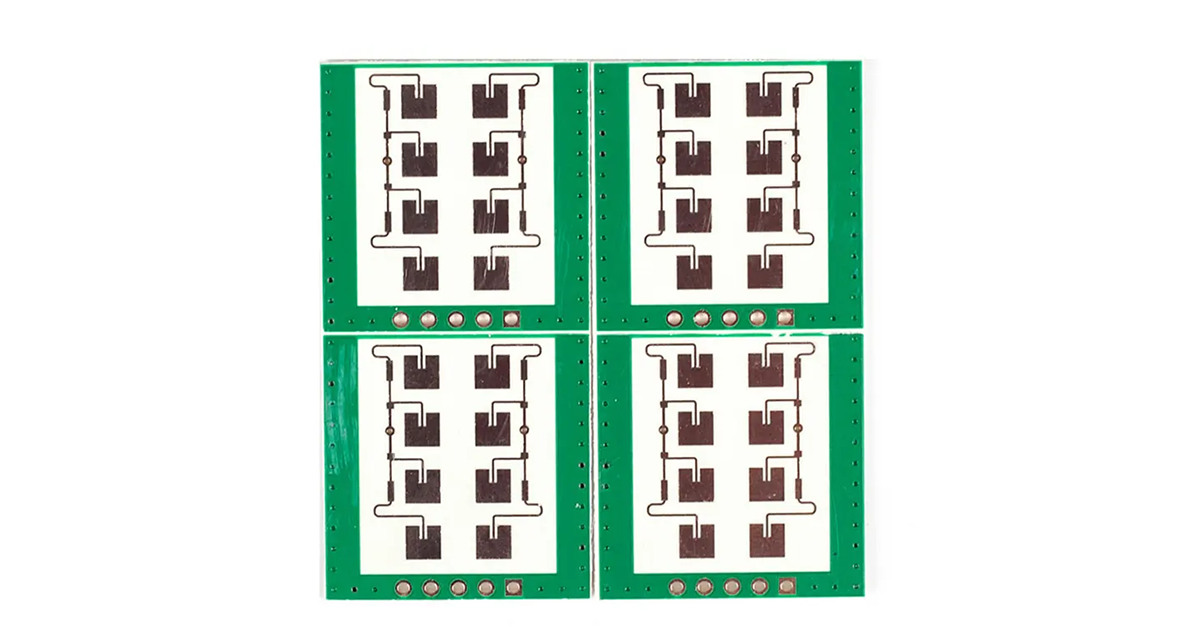

A printed patch antenna is, electrically, a shape on a substrate. Its resonant frequency, bandwidth and efficiency follow from the substrate’s dielectric constant and thickness, which means the laminate decision is the antenna decision. Feed networks go further: a beamforming network for a phased array divides and phases signals dozens of times in a very small area, and its performance is a direct read-out of board design precision and manufacturing process control.
The high-frequency PCB has moved from behind the RF system to centre stage. It is no longer an ordinary road but a precision airway carrying GHz-speed traffic, and its material selection, design precision and manufacturing quality together form the floor under system performance. Teams chasing higher frequency, wider bandwidth, smaller size or better reliability will find that the path runs straight through the board — and that disciplined impedance control is where most of that path gets built.
Frequently Asked Questions
Because the wavelength shrinks to the same scale as the board itself. Trace geometry then behaves as a distributed circuit element, and small differences in Dk, Df or impedance tolerance translate directly into frequency error, loss and phase distortion that no component choice can recover.
Yes. Microstrip, stripline and coplanar waveguide structures act as distributed inductors, capacitors and transformers. A well-designed board is a passive network in its own right, which is why layout and manufacturing precision carry circuit function, not just connectivity.
Start with Dk stability across temperature and frequency, then dissipation factor at your operating band, then CTE and moisture behaviour for reliability. Cost enters last, because a cheaper material that drifts in the field costs more than it saved.
For low-noise stages, board loss adds directly to noise figure. For power stages, the substrate is the heat path. Both directions reward materials with low loss and high thermal conductivity, which is why amplifier designers tend to be the least forgiving about substrate substitution.
