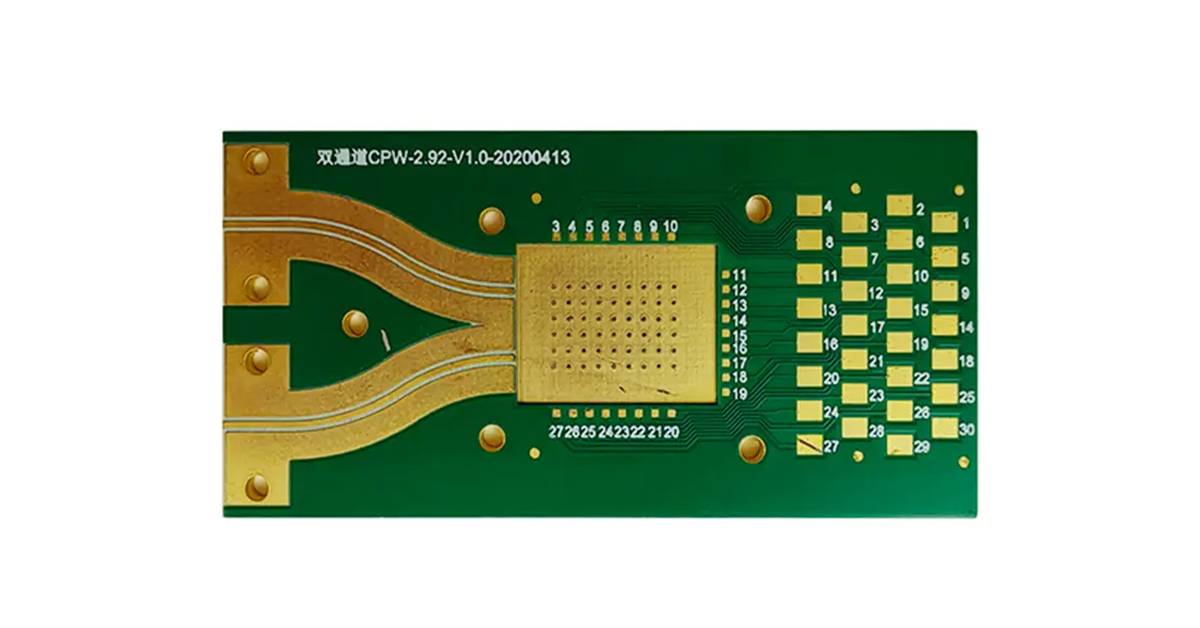

ENIG Rogers 3003 High-Frequency PCB: Cost-Effective RF Solution

RO3003 from the factory floor — what ENIG adds to ceramic-filled PTFE, the lamination and hole-wall realities PTFE enforces, and the qualification checklist that keeps datasheet numbers alive in volume production.

Table of Contents

Rogers RO3003 is a ceramic-filled PTFE composite — Dk 3.00±0.04 at 10 GHz with under 0.5% variation from –50°C to +150°C — which makes it a favorite for civil radar and high-volume wireless hardware. It is also a PTFE laminate, which means the manufacturing realities differ from FR-4-class boards in specific, predictable places. This guide is the factory-side view: what ENIG finishing adds, and which process controls a high-frequency PCB factory must run to keep RO3003’s datasheet numbers alive in production. The application-side view of the same material lives in our RO3003 millimeter-wave analysis.

What ENIG Adds to a Ceramic-Filled PTFE Board

On PTFE laminates the finish does more than protect copper — it compensates for PTFE’s processing quirks. The ENIG layer eliminates the thickness inconsistencies common to HASL, which is what allows ±7% impedance control on cost-sensitive civil communication designs. The nickel-gold barrier passes 96-hour salt spray with roughly eight times OSP’s corrosion resistance, and a 0.05–0.1 μm gold layer guarantees solderability through humid logistics — the reliability story behind IoT base stations and smart-meter hardware. Pad flatness at ≤10 μm supports 0402-class component mounting, the solderability window runs beyond eight hours, and hole-wall gold coverage at ≥15 μm exceeds IPC-6012 Class requirements. Where this finish sits among the alternatives, our ENIG versus silver versus tin comparison has the details.

The Thermo-Mechanical Reality of PTFE Lamination

PTFE’s softening behavior and thermal expansion are the first factory reality. RO3003’s x/y-axis CTE of 17 ppm/°C with z-axis at 24 ppm/°C keeps the stack dimensionally honest, but lamination profiles still need PTFE-specific care — temperature ramps and pressures tuned to the material, or deformation shows up as yield loss at lamination inspection. Combined with ENIG’s 260°C reflow resistance, the multilayer stack survives lead-free assembly without the lamination deformation that sinks cheaper PTFE builds. When RO3003 is hybridized with FR-4 layers for cost, the lamination discipline gets stricter still — the hybrid construction is worked through in our RO3003 and FR-4 hybrid guide.

Drilling and Hole Wall: Where PTFE Punishes Shortcuts

The second factory reality is the hole. PTFE surfaces resist adhesion, so the plasma desmear step is mandatory, not optional — skip it and copper-to-wall bonding fails regardless of plating chemistry. Drilling parameters must respect the soft polymer to avoid smearing and torn walls; the full defect chain and its fixes are covered in our PTFE hole wall quality guide. Factories that treat RO3003 like a slightly exotic FR-4 discover both realities at once, usually at the electrical test stage where the money is already spent.

Qualifying a Factory for RO3003 Production

The buyer-side checklist follows the realities. Material authorization for the 3003 series with lot-traceable stock; ENIG line capability at CPK ≥1.33 with nickel thickness held at 3–5 μm; and TDR-equipped impedance verification as standard practice rather than an add-on. The applications that reward this discipline — 5G micro base station RF modules, drone video links, smart-meter communication units, industrial IoT gateways — are precisely the volume products where a yield point is worth more than a datasheet hero number. RO3003 with a disciplined ENIG line is the build that delivers both.

Frequently Asked Questions

Frequently Asked Questions

Why is ENIG especially valuable on RO3003?

PTFE boards need flat, consistent surfaces for impedance: ENIG eliminates HASL's thickness inconsistency, enables ±7% impedance control, passes 96-hour salt spray with 8× OSP's corrosion resistance, and holds pad flatness at ≤10 μm.

What lamination care does ceramic-filled PTFE require?

PTFE-specific thermal profiles and pressures — the material softens and expands differently than FR-4 — though RO3003's 17/24 ppm/°C x/y/z CTE keeps multilayer stacks honest when the profile is respected.

Which PTFE process step can never be skipped?

Plasma desmear: PTFE's chemical inertness prevents reliable copper-to-wall bonding without plasma activation, and drilling parameters must respect the soft polymer to avoid smears and torn walls.

What should a RO3003 factory qualification include?

Material processing authorization for the 3003 series, ENIG line capability at CPK ≥1.33 with 3–5 μm nickel, and standard TDR impedance verification — plus hybrid-lamination experience if FR-4 layers are planned.
