Domestic Substitution Accelerates! Technological Breakthroughs and Challenges in China’s Microwave PCB Industry

Where China’s microwave PCB industry has genuinely caught up, where the 40 GHz consistency and equipment gaps remain, and how vertical integration and military-civilian collaboration are reshaping the supply chain.

Table of Contents

With surging demand from 5G communications, satellite navigation and defense electronics, high-frequency microwave PCBs — a core component in all three — have reached a critical juncture in localization. Domestic manufacturers have closed much of the distance in material R&D and process innovation, and the broader RF and microwave circuit board material landscape is shifting accordingly. Yet technical barriers in the high-end segment remain unresolved. This article reviews where the breakthroughs are real, where the bottlenecks persist, and how the localization drive for high-frequency PCBs is unfolding across the supply chain.

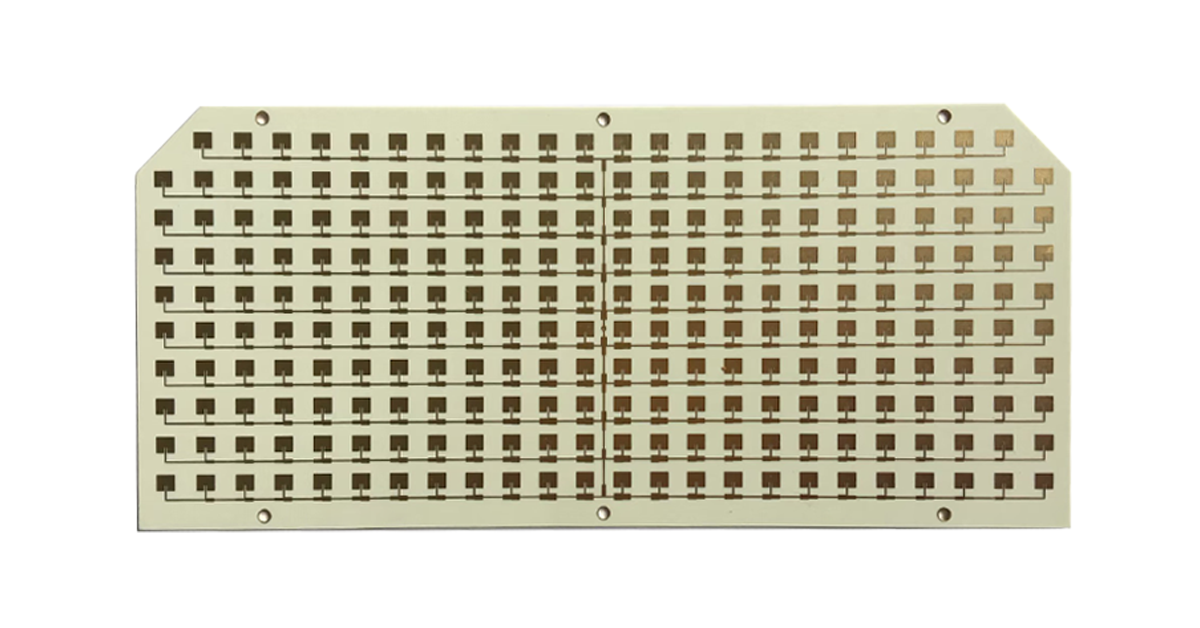

Technological Breakthroughs: From Followers to Partial Leaders

Three capabilities have moved domestic production from imitation to genuine competition:

  • Localized specialty substrates. Leveraging PTFE composites — the same material family as domestic F4B glass-fiber copper-clad laminates — the CETC 15th Research Institute and Shengyi Technology jointly developed stable substrates with a dielectric-constant tolerance of ±0.02 and a loss tangent comparable to U.S.-based Taconic, ending a decade-long monopoly by U.S. and Japanese firms.
  • Enhanced precision patterning. A Shenzhen-based leader adopted laser direct imaging (LDI) to achieve 25µm±5µm line-width accuracy, meeting 77 GHz millimeter-wave radar requirements, with yield rates rising 37% since 2020.
  • Multi-layer hybrid lamination. Suzhou Guangxin’s dynamic pressure control system reduced warpage to below 0.3% on 8-layer hybrid-dielectric boards — the same build philosophy behind RO3003 and FR-4 hybrid constructions — now mass-produced for phased-array radar TR modules.

Persistent Challenges: The High-End Market Bottleneck

The gap narrows unevenly, and three bottlenecks still decide who can serve high-end programs:

  • Inconsistent high-frequency material performance. Domestic substrates exhibit higher dielectric-loss fluctuation above 40 GHz compared with Rogers Corporation’s imports — the consistency benchmark set by materials like RT/duroid 5880 — which continues to deter defense-sector adoption.
  • Import-dependent equipment limits capacity. 80% of high-end vacuum lamination and plasma treatment tools rely on European and American suppliers, with lead times extending to 18 months — a constraint on expansion that no material breakthrough can offset on its own.
  • Talent gap risks. The industry faces a shortage of RF-and-process hybrid experts, as academic programs lag behind industrial needs.

Industry Trends: Collaboration as the Key

Progress now comes less from single-firm effort than from structural collaboration:

  • Vertical integration accelerates. Companies like Wus Circuit now move upstream into ceramic-filled modified materials to shorten supply chains.
  • Military-civilian synergy. CASIC 2nd Academy’s 23rd Institute adapted aerospace-grade PCB technology to 5G base stations, cutting costs by 52%.
  • Smart manufacturing emerges. Shennan Circuits’ AI-powered production line boosted defect detection to 99.6% on millimeter-wave PCB applications, where visual inspection alone falls short.

Conclusion

Per MIIT’s Electronic Component Industry Development Guidelines, China’s high-frequency PCB market will exceed ¥60 billion by 2025. Domestic substitution has shifted from policy-driven to technology-driven — only by overcoming the remaining “chokepoint” technologies can supply-chain security be achieved. How that transition plays out over the coming ten years is examined in detail in the outlook for China’s IC and high-frequency PCB industry.

Frequently Asked Questions

Frequently Asked Questions

How mature are domestically produced microwave PCB materials today?

Substrate-level breakthroughs are real: PTFE-based laminates with dielectric-constant tolerance of ±0.02 and loss tangent approaching U.S. Taconic grades are in volume use, and 25µm line-width accuracy already meets 77 GHz radar requirements. Above 40 GHz, however, dielectric-loss consistency still trails the leading imports.

What is still holding domestic high-end production back?

Three factors: dielectric-loss fluctuation above 40 GHz, dependence on imported vacuum lamination and plasma treatment equipment (80% imported, with lead times up to 18 months), and a shortage of engineers who combine RF knowledge with process experience.

Which applications already run on domestic high-frequency boards?

Phased-array radar TR modules use 8-layer hybrid-dielectric boards with warpage held below 0.3%, and 5G base stations now employ processes adapted from aerospace-grade production at 52% lower cost.

Is the market large enough to sustain further substitution?

Under MIIT's Electronic Component Industry Development Guidelines, China's high-frequency PCB market is expected to exceed ¥60 billion by 2025, and substitution has shifted from policy-driven to technology-driven — demand is pulling the upgrade rather than subsidies.
