Unique Advantages of Rogers RT/duroid 3003

Dk 2.94, dielectric loss below 0.003 and a 300°C decomposition point: what RT/duroid 3003 buys you, and when it is the right call over its higher-Dk siblings.

Table of Contents

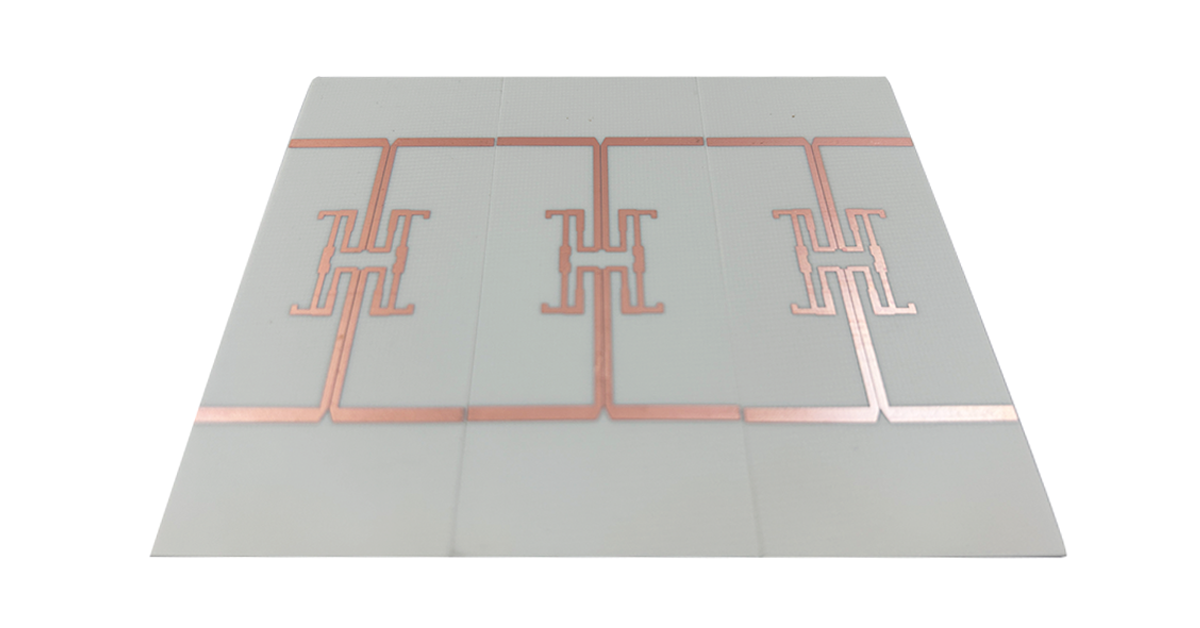

Rogers RT/duroid 3003 is a filled PTFE composite built for RF and microwave work. It is not the lowest-loss material in the Rogers catalogue, and it is not the cheapest — its case rests on a specific combination: a low dielectric constant around 2.94, dielectric loss below 0.003, and a thermal decomposition point near 300°C that lets the material hold its electrical properties through high-temperature processing and service. That combination is why it shows up in communications, radar and aerospace hardware. It sits in the same family as the laminates covered in our Rogers 3000 series overview.

Electrical Performance

Two numbers carry most of the argument for 3003 in high-frequency circuits:

  • Dielectric constant of about 2.94 — a low Dk keeps signal attenuation down during transmission, so the signal arrives with enough amplitude and shape to be usable.
  • Dielectric loss below 0.003 — low loss means less energy converted to heat in the dielectric, which is what allows efficient and stable transmission as frequency rises.

For a material comparison against the higher-Dk option in the same family, our article on the performance and differences between Rogers 3003 and 4003 walks through the trade-off. Where the design targets millimeter-wave bands, the application notes in RO3003 millimeter-wave uses are the closer reference.

Thermal Stability

Thermal weight loss temperature reaches about 300°C (572°F), so the laminate keeps its electrical performance through high-temperature processing and in service conditions that would move lesser materials. Thermal conductivity is relatively high for a PTFE composite as well, which helps heat leave the component and reduces the risk of a local hotspot becoming a reliability problem.

Mechanical Strength and Process Compatibility

The material holds good strength and wear resistance, so it tolerates mechanical stress during assembly rather than only under ideal handling. Toughness is retained across wide temperature and humidity ranges, which lowers the risk of cracking or deformation — a real consideration for boards that see thermal cycling. On the shop floor, 3003 is compatible with laser cutting and etching for high-precision structural work, and it accepts soldering processes including lead-free reflow.

Environmental Robustness and Water Absorption

Chemical resistance covers the solvents, acids and alkalis typically encountered in fabrication and in the field. Moisture performance is the other half of the story: a low water absorption rate keeps the dielectric from changing with humidity, which is what protects signal stability over years of service rather than just on the bench. Across a wide frequency range the electrical characteristics stay consistent, so a design verified at one band does not have to be re-qualified at every other one.

Where RT/duroid 3003 Is Used

The application list follows directly from the property list:

  • Communication equipment — mobile base stations, satellite links and radio transmitters, where the low Dk keeps transmission quality high.
  • Radar systems — signal stability and accuracy matter more than raw cost, and the material holds both.
  • RFID — tags and readers benefit from the consistency of the dielectric across the operating band.
  • Medical devices — imaging and wireless monitoring equipment where high-frequency performance has to be predictable.
  • Aerospace — spacecraft and avionics, where the combination of thermal range, toughness and stable Dk is difficult to replace.

Conclusion

RT/duroid 3003 is a design choice, not a default. It earns its place where a low dielectric constant, low loss and thermal stability have to hold simultaneously — communications, radar and medical hardware being the clearest examples. If the design needs a higher Dk to shrink circuitry, the RT/duroid 4003C advantages are the next thing to read; if it needs the lowest possible loss with a different processing profile, the RO3000 rolled-copper option described in the 3000 series range is worth comparing before the stack-up is frozen.

Frequently Asked Questions

Common questions about RT/duroid 3003.

What dielectric constant does RT/duroid 3003 have?

Typically around 2.94, with dielectric loss generally below 0.003. The low Dk reduces signal attenuation in transmission, which is the property most high-frequency designs are selecting it for.

How much heat can it take?

Thermal weight loss temperature reaches approximately 300°C (572°F), so electrical performance is retained through high-temperature processing and demanding service conditions. Thermal conductivity is also relatively high for a PTFE composite, which helps dissipate heat from components.

Is 3003 the right choice when the circuit has to shrink?

Not usually. A lower Dk means wider lines for a given impedance, so compact layouts generally favour a higher-Dk material such as RT/duroid 4003C. The comparison between the two is covered in our 3003 versus 4003 article.

How does it behave in humid or chemically aggressive environments?

Well on both counts. Low water absorption keeps the dielectric constant from drifting with humidity, and the material resists the solvents, acids and alkalis encountered in fabrication and field service.

Which soldering processes can be used?

The laminate adapts to standard assembly processes including lead-free reflow, and it is compatible with laser cutting and etching where high-precision structural processing is needed.
