Designing multilayer RF and microwave PCBs takes more than picking a low-loss substrate. One question comes up again and again: can Rogers RO3003 laminates be pressed together directly, without a bonding material? The answer is no — and it’s worth understanding why. RO3003™ is a ceramic-filled PTFE composite. Unlike FR-4 or hydrocarbon-ceramic laminates, PTFE doesn’t chemically crosslink under heat, so a multilayer stack needs a dedicated bonding film to hold the layers together.
A second common question: are RO3003 Bond and RO4450 interchangeable? Both are Rogers bonding materials, but they belong to entirely different resin systems and serve different manufacturing purposes. This article walks through why RO3003 needs a bondply, how RO3003 Bond and RO4450 differ, and which one fits your application.

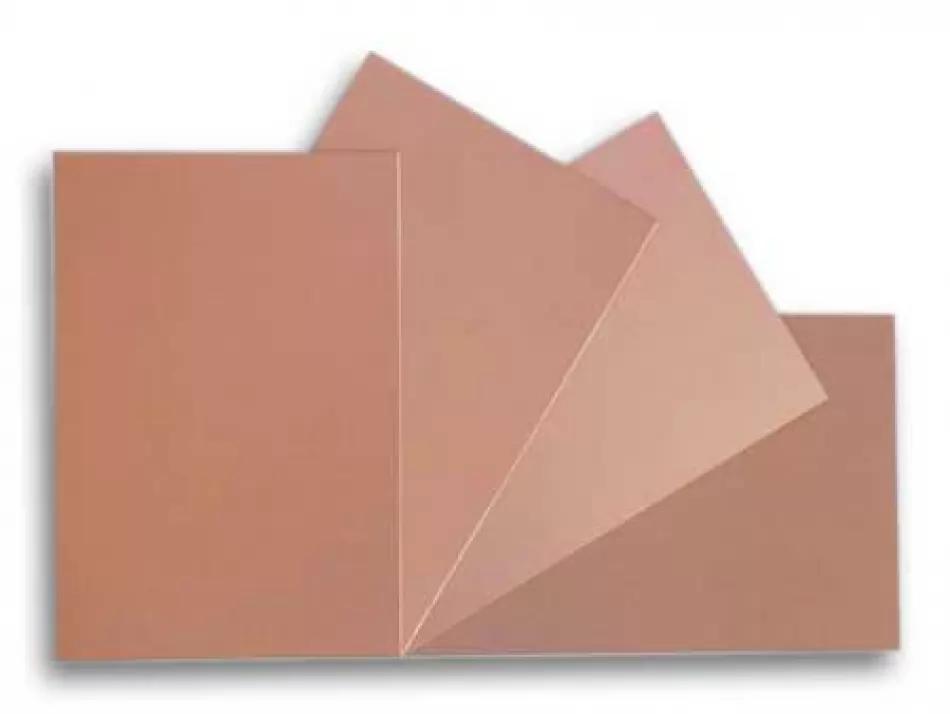

RO3003™ belongs to the Rogers RO3000® family of ceramic-filled PTFE laminates. PTFE delivers extremely low dielectric loss and excellent electrical stability — ideal for microwave and millimeter-wave circuits. But PTFE behaves nothing like conventional epoxy. It does not chemically crosslink during lamination; heat alone cannot permanently bond two RO3003 cores. Press them together directly and the result is a multilayer board with no mechanical reliability.

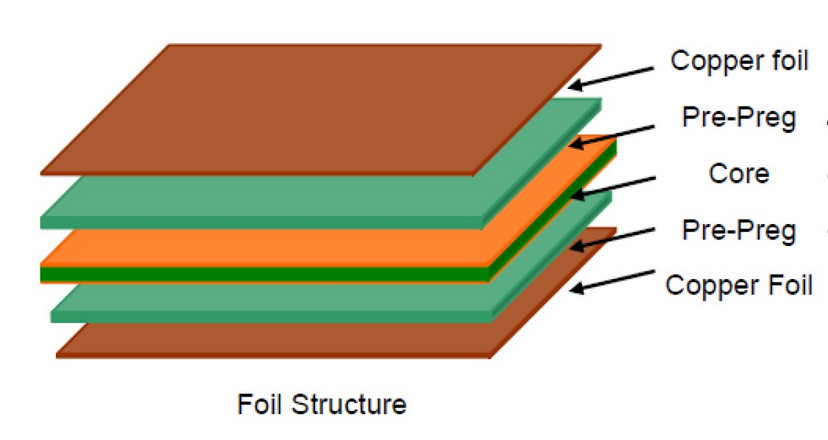

Instead, a dedicated bondply (bonding film) goes between the dielectric layers during lamination. Under controlled temperature and pressure it melts, flows, and creates a strong interface between adjacent RO3003 laminates. Skip this bonding layer and expect:
That’s why Rogers recommends bonding materials designed specifically for PTFE laminates. Full details are in the Rogers Corporation material guide.
Both products bond layers together, but they’re built on entirely different resin technologies — and that difference shapes electrical performance, processing conditions, manufacturing cost, and the applications each one suits.
| Property | RO3003 Bond (RO3001 Bondply) | RO4450 Series (RO4450B/F/T) |
|---|---|---|
| Material System | Thermoplastic PTFE bondply | Thermoset hydrocarbon resin |
| Compatible Materials | RO3000 series PTFE laminates | RO4000 series and FR-4 hybrid designs |
| Typical Dk (10 GHz) | Approximately 3.0 | Approximately 3.3–3.5 |
| Typical Df (10 GHz) | Approximately 0.0012 | Approximately 0.004 |
| Lamination Conditions | Higher temperature and pressure | Standard FR-4 lamination (~177°C) |
| Processing Difficulty | Higher | Lower |
| Manufacturing Cost | Higher | Lower |
| Electrical Performance | Excellent | Very good |
| Typical Applications | Millimeter-wave, aerospace, radar | RF communications, automotive radar, 5G infrastructure |
The biggest difference comes down to resin chemistry.
RO3003 Bond is a thermoplastic bonding material. It softens and flows between the dielectric layers under elevated temperature and pressure, then solidifies on cooling to form the bond. Because PTFE has limited natural adhesion, the process demands:
The payoff is exceptionally low dielectric loss and excellent electrical consistency at microwave and millimeter-wave frequencies. Above 24 GHz — automotive radar, satellite communications, phased-array antennas, aerospace electronics — RO3003 Bond is usually the first choice.
RO4450 belongs to the Rogers RO4000® bonding family and uses a thermosetting resin. During lamination the resin chemically cures into a permanent crosslinked structure. The advantages:
For RF products operating below millimeter-wave frequencies, RO4450 strikes a strong balance between electrical performance and manufacturability.
It comes down to your application’s electrical requirements and production budget.
Typical applications include:
Typical applications include:
RO3003 laminates cannot be pressed together directly — PTFE doesn’t chemically bond during multilayer lamination, so a compatible bonding film is essential. And while RO3003 Bond and RO4450 both act as bonding materials, they’re designed for different material systems. If you need the lowest possible insertion loss in a demanding millimeter-wave design, RO3003 Bond justifies its tougher processing. If you want simpler fabrication, better yield and lower cost while keeping strong RF performance, RO4450 is the pragmatic pick. Deciding this early in the design process pays off in reliability, yield and long-term electrical performance.
Common questions about RO3003 bonding and lamination — for project-specific review, contact our team directly.
No. RO3003 is a ceramic-filled PTFE laminate that does not chemically bond during lamination. A compatible bondply is required to achieve reliable multilayer adhesion.
No. RO3003 Bond is a thermoplastic PTFE bonding material designed for RO3000 laminates, while RO4450 is a thermosetting bonding material developed for RO4000 series and FR-4 hybrid multilayer PCBs.
RO3003 Bond provides significantly lower dielectric loss than RO4450, making it the preferred choice for microwave and millimeter-wave applications where signal integrity is critical.
RO4450 cures using standard FR-4 lamination processes at approximately 177°C. This allows manufacturers to use conventional multilayer PCB equipment without the tighter process controls required for PTFE bonding.
Generally, no. RO4450 is optimized for RO4000 series materials and FR-4 hybrid constructions. For all-PTFE multilayer structures using RO3003, Rogers recommends compatible PTFE bondply materials such as RO3001 Bondply to ensure proper electrical and mechanical performance.
