Four property groups decide what a Taconic laminate can deliver, and five industries show where those properties are worth paying for.
Taconic has been a fixture in high-frequency laminate supply for decades, and the reason is not marketing: these materials hold their electrical behaviour under conditions where cheaper substrates begin to drift. Boards built on them carry the signal in base stations, radar front ends, imaging equipment and vehicle sensors. This article works through the properties that do the heavy lifting and then maps them onto the applications where they earn their keep; for context on how the brand sits against the alternatives, our guide to high-frequency laminate selection covers the wider field.
Four groups of properties decide what a laminate can do in a circuit: how it behaves electrically, how it handles heat, how it survives handling, and how it ages in the environment. Each one maps onto a specific failure mode when it falls short.
Dielectric constant (Dk) and dissipation factor (Df) set the ceiling on signal quality. A low Dk shortens propagation delay, so edges arrive sooner and the design keeps more timing margin. A low Df means less of the signal is converted into heat inside the dielectric, which preserves amplitude and edge shape over distance. These two numbers are the first thing to compare when screening candidates, and they are why the properties of microwave and RF board materials dominate the conversation at high frequency.
High-frequency hardware tends to run warm, and a laminate has to cope with two separate thermal jobs. Thermal conductivity lets heat escape from the copper and the components into the structure, which lowers the operating temperature of the whole assembly. Temperature resistance is the other half: the material has to keep its dimensions and its dielectric values at elevated temperature rather than creeping, warping or degrading.
Mechanical behaviour decides how a material performs on the shop floor and in the field. Strength and toughness keep the panel stable through drilling, routing and assembly, and reduce damage from clamping, handling and thermal cycling. Durability covers the slower threats — moisture, process chemicals and contamination — that shorten service life in ways a functional test at the end of the line will never catch.
Environmental requirements have moved from a footnote to a procurement condition. Halogen-free formulations reduce the pollution load at end of life and satisfy standards that buyers increasingly write into specifications. Recyclability considerations in the product design do the same job at the other end of the lifecycle, keeping the material from becoming landfill.
| Dimension | Parameter that matters | What it buys the design |
|---|---|---|
| Dielectric | Low, stable Dk | Shorter propagation delay and predictable impedance |
| Dielectric | Low Df | Less attenuation and less heat generated in the dielectric |
| Thermal | Thermal conductivity | Heat spreads into the structure; lower operating temperature |
| Thermal | Temperature resistance | Dimensions and Dk stay put at elevated temperature |
| Mechanical | Strength and toughness | Survives drilling, routing, clamping and assembly |
| Mechanical | Durability | Resists moisture and process chemicals over service life |
| Environmental | Halogen-free formulation | Meets environmental specifications at end of life |
| Environmental | Recyclability | Lower disposal impact across the product lifecycle |

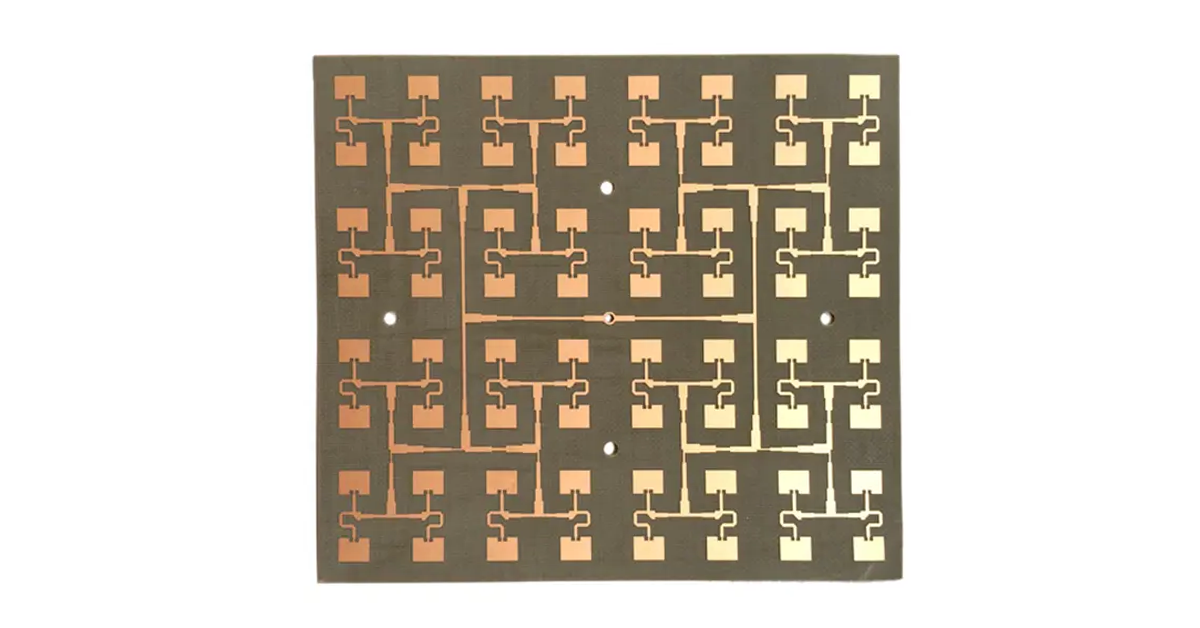

Wireless infrastructure is the largest single user of these laminates, and the reasons are mechanical as much as electrical: antennas, feed networks and radio units sit outdoors, in temperature swings, and still have to hold their impedance.
This list overlaps heavily with the general field of high-frequency circuit board applications, where the same material properties keep reappearing in different hardware.
Defence electronics buy reliability rather than price. Radar front ends built on materials such as Taconic RF-30 have to hold their electrical values through vibration, temperature swings and long periods in storage, and secure links have to keep noise low enough that encrypted traffic stays readable.
Medical electronics are judged on fidelity. A blurred return or a delayed sample is a clinical problem, not a performance metric, so signal quality has to hold from the transducer to the processor.
Automotive is the fastest-growing application area, because a modern vehicle is a sensor platform. The boards sit under the hood and behind bumpers, so they face temperature extremes and vibration at the same time as electrical demands.
Consumer devices push in the opposite direction from base stations: the same performance squeezed into far less space, with weight and power as hard constraints.
Property data is only useful once it is matched to a design. A low-loss grade is the right answer for a millimeter-wave link and the wrong answer for a cost-sensitive board that will never exceed 3 GHz, and the difference between two grades in the same family is often smaller than the difference a process change would make. Our parameter notes cover the individual materials: the TLX series for designs that need Dk tuned grade by grade, and the TLY-3 grade for builds where thermal headroom dominates. Bring us the frequency range, the stack-up and the environmental conditions, and we will tell you which one the numbers actually support.
Frequently Asked Questions
Stability more than peak numbers. Dk and Df stay close to their nominal values across frequency, temperature and humidity, which is what keeps impedance and loss predictable over the life of a product.
Dissipation factor, if loss is the binding constraint. Dk decides delay and impedance, but the energy actually lost in the dielectric is set by Df, so it usually decides whether a link budget closes.
Yes. PTFE-based laminates are softer, expand differently from copper, and need adjusted drilling, lamination and via preparation. The material is not the hard part; the process is.
Because it is written into procurement specifications. Halogen-free formulations reduce the pollution load at end of life, and a design that ignores the requirement can simply be rejected at the sourcing stage.
Often yes, within a family. Grades in the same series share a platform and differ mainly in Dk and thermal range, so a manufacturer with a wide product range may standardise on two grades rather than ten.
Send us your frequency plan, stack-up and environmental requirements and we will shortlist the grades that fit.
