Six technical dimensions separating HDI from traditional PCBs — laser vs. mechanical drilling, density, line precision, finishes, materials and reliability standards — with a clear selection guide and supplier checklist.
As electronics shrink and speed up, HDI (High Density Interconnect) boards with blind and buried vias have shifted from premium option to baseline requirement. This comparison puts HDI against traditional through-hole PCBs across six technical dimensions, then turns the differences into a selection guide — the via architecture itself is examined in our blind and buried via design analysis.
Where traditional boards rely on mechanical through-holes, HDI construction is defined by four numbers: fine lines and spacing at 100 µm or below (versus 150–200 µm), microvias of 150 µm diameter or less (versus the 200 µm mechanical drilling limit), at least two blind or buried via layers, and dielectrics of 60 µm or thinner (versus typically over 100 µm). Facilities running both HDI and RF production can combine the two into hybrid builds for 5G and other demanding applications.
Mechanical drilling bottoms out at 0.2 mm holes with ±25 µm precision; laser drilling reaches 0.05–0.1 mm at ±5 µm — four times the precision, and the reason microvia density is simply unavailable on traditional lines.
Through-holes consume over 30% of board area on traditional designs; blind, buried and stacked vias lift routing density by 300%, with any-layer HDI as the advanced tier for the densest builds.
Traditional etching holds 3/3 mil (75/75 µm) line/space; HDI runs 2/2 mil (50/50 µm) routinely and reaches 1/1 mil (25/25 µm) with mSAP processes — the tolerance discipline mirrors ±0.02 mm line-width control in microwave production.

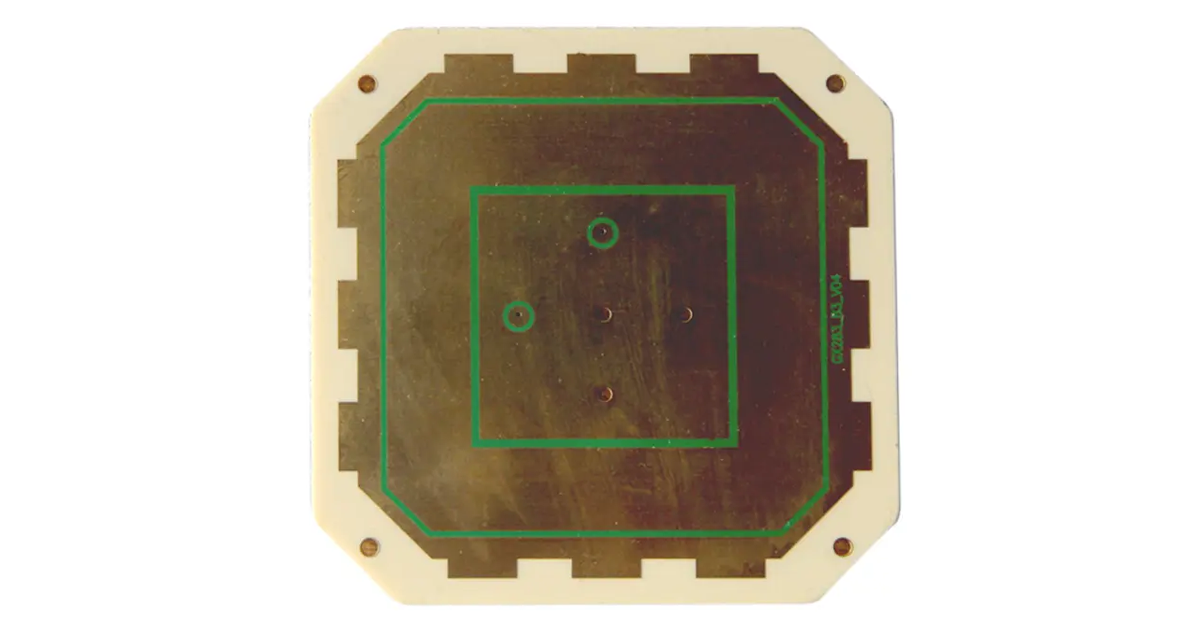

HDI/RF hybrid lines favor ENEPIG for high-frequency signals and immersion silver as the cost-effective alternative, with solder mask registration held to ±25 µm versus ±50 µm on traditional boards.
The material gap is electrical: FR-4 with Dk of 4.2–4.8 and CTE of 13–16 ppm/°C on the traditional side, low-loss laminates at Dk 2.2–3.8 and CTE 8–12 ppm/°C on the HDI side — the landscape is surveyed in our high-frequency material overview.
HDI qualification runs harder tests: thermal cycling of –55°C to 125°C for 1,000 cycles (versus 500), CAF resistance of 1,000 hours at 85°C/85% RH, and impedance control of ±5% (±3% for RF) — the standards framework is detailed in our reliability testing standards guide.
The choice sorts cleanly by frequency and density:
True HDI capability shows in three numbers: laser drilling consistency of ±15 µm, plating uniformity within 5 µm variation, and layer alignment under 25 µm offset. Evaluate suppliers on TGV (through-glass via) capability, microvia fill methods (resin versus plating), signal-integrity simulation support, and mass-production yield — above 92% is the working benchmark. Supporting capabilities worth checking: hybrid CO₂+UV laser drilling, AI vision alignment, unique-ID full traceability and Class 1000 cleanrooms.
Three vectors are reshaping the field: line widths migrating toward 10 µm, operating frequencies pushing past 77 GHz millimeter-wave, and heterogeneous integration converging PCB and packaging substrate. Supplier investment follows the same direction — semiconductor-grade HDI lines, ultra-low-loss materials at Df ≤0.002, 2.5D packaging substrates and 112 Gbps signal-integrity labs — with imaging precision documented in our lithography equipment comparison.
Reduce it to three rules: traditional PCBs remain best for low-frequency, large-form-factor designs where the cost gap dominates; HDI is essential for high-frequency compact devices; and hybrid approaches win for complex systems that need both density and RF performance. A supplier running both under one quality system removes the hand-off risk between the two worlds.
Frequently Asked Questions
Four defining numbers: lines/spaces at ≤100 µm, microvias ≤150 µm, two or more blind/buried via layers, and dielectrics ≤60 µm — versus 150–200 µm lines and 200 µm mechanical-drilling limits on traditional boards.
Laser reaches 0.05–0.1 mm holes at ±5 µm precision versus 0.2 mm at ±25 µm for mechanical drilling — four times the accuracy, enabling microvia densities traditional processes cannot form.
For power supplies, industrial controls under 1 GHz, LED drivers and appliance boards — low-frequency, large-form-factor designs where HDI precision adds no value and traditional builds save 40% or more.
Laser drilling consistency of ±15 µm, plating uniformity within 5 µm, layer alignment under 25 µm, microvia fill capability, and mass-production yield above 92%.
