Considerations in the Production Process of Microwave PCBs

Design rules for materials, layout and impedance matching, manufacturing control points for etching and drilling, plus the electrical and environmental tests that validate every microwave PCB.

Table of Contents

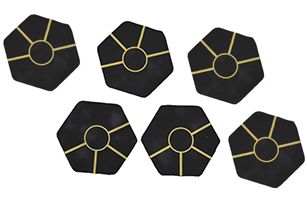

Overview of Microwave PCBs

Microwave PCBs are designed for the transmission and processing of microwave-frequency signals (typically 1 GHz to 300 GHz). They are widely used in wireless communications, radar, satellite communications, medical devices, RFID, and other high-frequency equipment. The nature of microwave signals demands special attention across design and manufacturing to ensure performance and reliability.

Design Considerations

Design decisions made before fabrication determine the ceiling of achievable performance. Three areas dominate:

Material Selection

Materials directly affect signal transmission performance and overall quality. Low-Dk materials such as PTFE, RO4350B, and RO5880 offer low loss suited to high-frequency work; high-Dk ceramic substrates serve specific applications needing tighter signal control. Selection factors:

  • Dielectric constant (Er): lower values generally improve signal speed.
  • Dissipation factor (Df): lower values reduce signal attenuation.
  • Thermal stability: performance must hold under high-temperature conditions.

Layout Design

Layout is critical for signal integrity and transmission efficiency: minimize signal path length to reduce delay and reflections; design the ground plane as continuously as possible to cut inductance and impedance; and keep high-frequency signal lines appropriately separated from low-frequency lines to minimize crosstalk.

Impedance Matching

Unmatched impedance causes signal reflection and loss. Design specific-impedance microstrip or stripline — commonly 50 Ω or 75 Ω depending on the application — and use electromagnetic simulation software to verify the design before release to fabrication, following the practices in impedance-controlled manufacturing.

Manufacturing Process Considerations

Three production areas demand the strictest control:

Control of Process Parameters

Etching: etchant concentration and temperature must be held within range to ensure uniform etch depth and prevent line damage. Photolithography: exposure time and intensity must be precisely controlled to keep patterns clear and defect-free.

Precision Processing

Drilling quality: hole diameter and positioning must be precise to avoid shorts or opens. Line width and spacing: high-precision equipment and processes keep geometry within design requirements.

Surface Treatment

Immersion gold provides good solderability, particularly suitable for high-frequency applications; HASL suits general applications but may underperform immersion gold for microwave signals. Balance performance against cost when selecting — see our gold-surface treatment comparison for the detailed options.

Testing and Validation

Electrical performance testing. Impedance testing verifies design impedance meets industry standards; return loss testing checks signal reflection; insertion loss testing evaluates transmission efficiency.

Environmental adaptability testing. Temperature and humidity testing confirms stability in hot, humid conditions; vibration and shock testing assesses performance under mechanical stress — the full equipment picture is in our testing and environmental simulation overview.

Conclusion

Microwave PCB production involves multiple stages, each requiring strict control. In design, sound material selection, circuit layout, and impedance matching set the performance foundation. In manufacturing, strict process parameters and precision processing maintain quality. Testing and validation confirm real-world reliability. As microwave technology advances and demand grows, attention to these details is what separates competitive products from the rest.

Frequently Asked Questions

Common questions about microwave PCB production.

What frequency range defines a microwave PCB?

Microwave PCBs are generally defined as handling signals from 1 GHz to 300 GHz, covering everything from wireless communication links to radar and satellite systems.

Which materials are typical for microwave PCB design?

Low-Dk, low-Df laminates such as PTFE, RO4350B, and RO5880 for general high-frequency work, plus high-Dk ceramic substrates where tighter signal control is needed.

Why does impedance matching matter more at microwave frequencies?

At microwave frequencies even small impedance discontinuities reflect significant energy, causing standing waves, loss, and distortion — precise matching is non-negotiable.

What tests validate a microwave PCB before shipment?

Electrical tests cover impedance, return loss, and insertion loss; environmental tests cover temperature/humidity stability and vibration/shock endurance.
