Hybrid PCBs are used in scenarios where a combination of different materials is necessary to meet the varying performance, cost, and manufacturing requirements of the design. Key situations where hybrid PCBs are typically employed include:

  1. High-Frequency Circuits (RF and Microwave): Materials like Rogers are used for their superior high-frequency characteristics (low dielectric constant, low loss), while FR4 is used in less critical sections to reduce costs.
  2. Power and Heat Management: For circuits with power components generating significant heat, thermally conductive materials like ceramics or metal-backed substrates may be used in conjunction with standard materials for better heat dissipation.
  3. Cost Efficiency: By using high-performance materials only in specific areas (e.g., signal-critical zones), and cheaper materials like FR4 elsewhere, hybrid PCBs help balance cost and performance.
  4. Signal Integrity and Controlled Impedance: For high-speed digital or RF signals, controlled impedance is crucial. Hybrid PCBs allow for the selection of specific materials that can maintain stable impedance while using cost-effective materials for less demanding parts of the circuit.
  5. Mechanical Properties: When different parts of the circuit require varying levels of flexibility or mechanical strength, different materials with distinct mechanical properties (e.g., flexible and rigid sections) are used.

Hybrid PCB Design and Manufacturing Process (Simplified)

Designing and manufacturing a hybrid PCB involves several key steps:

1. Requirement Definition

  • Determine the specific needs of the circuit, including signal frequency, thermal management, power distribution, and mechanical requirements.
  • Define which sections of the PCB need high-performance materials and where cost-effective materials can be used.

2. Material Selection

  • Choose appropriate materials based on the design requirements:
    • Rogers/PTFE for high-frequency and RF sections.
    • FR4 for low-speed or digital logic areas.
    • Ceramics/metal-backed materials for power dissipation or thermal management.
  • Ensure the compatibility of these materials in terms of thermal expansion, dielectric properties, and mechanical strength.

3. Layer Stack-up Design

  • Design the layer stack-up, accounting for the different materials and their properties.
  • Ensure proper alignment of signal layers, power planes, and ground planes for signal integrity.
  • Plan for the controlled impedance and signal routing to accommodate high-frequency signals.

4. Component Placement

  • Place components based on performance requirements:
    • Critical high-speed or RF components should be placed on layers made of high-performance materials.
    • Power components should be placed near thermally conductive materials for efficient heat dissipation.

5. Routing

  • Route high-frequency and high-speed signals on layers with high-performance materials.
  • Use appropriate vias and transitions between different materials, ensuring minimal signal distortion or impedance mismatches.

6. Design Rule Check (DRC)

  • Perform a thorough DRC to ensure all electrical and mechanical design rules are met, including checking the transitions between different materials.
  • Validate that signal integrity and thermal management requirements are met, especially across material boundaries.

7. Manufacturing Process

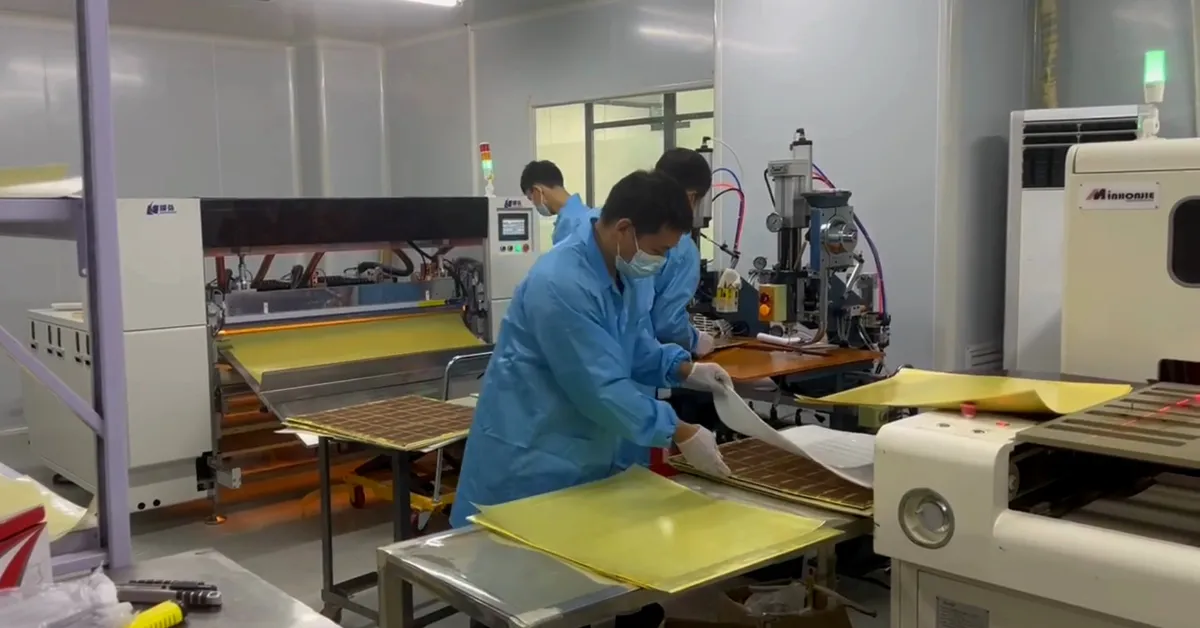

  • Material Lamination: Different materials are laminated together, with each layer being precisely aligned. The manufacturing process must account for differences in thermal expansion between materials.
  • Drilling and Plating: Through-hole and via structures are drilled and plated. Special attention is required for via transitions between different material sections.
  • Etching and Layer Formation: The conductive copper layers are etched to create the required circuitry.
  • Inspection and Testing: After manufacturing, the board undergoes inspection and electrical testing to ensure signal integrity and mechanical durability, particularly at material interfaces.

By following these steps, hybrid PCBs can be designed and manufactured to optimize performance for specific applications, while balancing cost and material properties.
