Standard PCB Layout Guideline
PCB (Printed Circuit Board) layout is a crucial step in electronic design and manufacturing. A well-designed PCB layout ensures that the device performs as intended, maintains signal integrity, and is manufacturable and reliable. This guide provides a comprehensive look at best practices, techniques, and key considerations for a high-quality PCB layout, covering everything from component placement to routing, thermal management, and signal integrity.
1. Understanding the Basics of PCB Layout
PCB layout involves translating a schematic into a physical board design. This includes placing components, routing traces to connect them, and ensuring that the board meets electrical and mechanical constraints. A successful PCB layout balances performance, cost, and manufacturability.
1.1 PCB Layers
PCBs can range from single-layer to multi-layer designs. The number of layers is dictated by the complexity of the design.
- Single-layer: Used for simple designs with minimal components.
- Double-layer: Allows for more complex routing and higher component density.
- Multi-layer: Typically used in high-density, high-speed, or RF applications, where additional layers are used for power, ground, and signal routing.
1.2 PCB Stack-up
The stack-up refers to the arrangement of copper and dielectric layers in a PCB. It is critical in high-speed designs as it affects signal integrity and electromagnetic interference (EMI) performance.
- Example stack-up (4-layer):
- Layer 1: Signal
- Layer 2: Ground
- Layer 3: Power
- Layer 4: Signal
2. Component Placement
Proper component placement is one of the most important aspects of PCB design. It affects not only the performance but also the ease of routing, manufacturability, and thermal management.
2.1 General Placement Guidelines
- Logical grouping: Place related components (e.g., decoupling capacitors and ICs) close together to minimize trace lengths.
- Power components: Position power components like regulators near the input power source and away from sensitive components.
- Heat-generating components: Place components that generate significant heat (e.g., power transistors, regulators) away from heat-sensitive components like ICs.
- Symmetry: If possible, arrange components symmetrically for better balance, especially in RF circuits.
- Accessibility: Ensure that components like connectors, test points, and switches are easily accessible for testing and debugging.
2.2 Critical Components
- Microcontrollers and ICs: Place microcontrollers and ICs centrally to shorten signal paths to other components, such as sensors, memories, or communication interfaces.
- Decoupling capacitors: Place decoupling capacitors as close as possible to the power pins of ICs to minimize noise and provide stable power.
- High-speed components: Place components that handle high-speed signals (e.g., clocks, oscillators) close to the ICs to reduce noise and signal degradation.
2.3 Thermal Management in Component Placement
Components that generate heat, such as power transistors or voltage regulators, should be placed near the edge of the board or in areas where air can flow freely to dissipate heat. Use thermal vias to transfer heat to internal layers or the other side of the PCB.
3. PCB Routing Guidelines
Routing is the process of creating electrical connections between components using copper traces on the PCB. The quality of the routing affects signal integrity, power delivery, and overall performance.
3.1 Signal Routing
- Keep traces short and direct: Minimize trace lengths to reduce resistance, capacitance, and signal degradation.
- Signal routing priority: Critical signals (e.g., clocks, high-speed data lines) should be routed first, followed by power and ground traces, and finally low-speed signal traces.
- Differential pair routing: For high-speed interfaces like USB, HDMI, and Ethernet, differential pairs must be routed together with matched lengths and controlled impedance.
- Impedance-controlled routing: In high-frequency designs, maintain consistent impedance along the signal traces by controlling the width, spacing, and PCB stack-up.
3.2 Trace Width and Spacing
- Trace width: The width of the trace is determined by the current it carries. Wider traces are required for high-current traces such as power and ground.
- Trace spacing: Ensure that the spacing between traces meets the design rules of the manufacturer and minimizes the risk of short circuits.
- High-speed signals: High-speed signals should be routed with controlled impedance, with careful attention to spacing to avoid crosstalk and signal degradation.
3.3 Grounding and Power Distribution
- Ground planes: Use a solid ground plane to provide a low-impedance return path for signals and reduce noise.
- Power planes: Use a dedicated power plane to ensure stable power delivery across the board. This is especially important in designs with high current requirements.
- Stitching vias: Use multiple vias to connect ground planes on different layers to reduce the impedance of the return path.
4. Power and Ground Routing
Proper power and ground distribution are essential to ensuring stable operation of the PCB, especially in designs that draw significant power or have high-speed circuits.
4.1 Power Plane Design
- Use power planes: Use solid copper planes for power distribution to reduce resistance and ensure even power delivery across the board.
- Multiple power planes: For boards with multiple voltage levels, consider using separate power planes or regions for each voltage level (e.g., 1.8V, 3.3V, 5V).
4.2 Grounding Techniques
- Ground planes: A continuous ground plane is essential for minimizing noise and providing a stable reference for all signals.
- Grounding components: Ensure that all components are properly grounded, especially those that are sensitive to noise, such as analog ICs and RF circuits.
5. Via Usage in PCB Design
Vias are essential in multi-layer PCBs for connecting traces on different layers. However, excessive or poorly placed vias can introduce signal integrity issues, especially in high-frequency designs.
5.1 Types of Vias
- Through-hole vias: These vias pass through all layers of the PCB and are the most commonly used type.
- Blind vias: Connect outer layers to one or more inner layers without passing through the entire board.
- Buried vias: Connect inner layers without reaching the outer surfaces of the PCB.
5.2 Via Placement and Guidelines
- Minimize via use on critical signals: Vias can introduce parasitic inductance and capacitance, which can affect signal integrity. Minimize the use of vias on high-speed and critical signal traces.
- Thermal vias: For heat dissipation, place multiple vias under heat-generating components to transfer heat to internal layers or to a heat sink on the opposite side of the PCB.
6. Design for Signal Integrity
Signal integrity is critical in high-speed and high-frequency designs. Poor signal integrity can result in reflections, crosstalk, and other issues that degrade performance.
6.1 Controlled Impedance
In high-speed designs, maintaining consistent impedance along signal traces is essential to prevent signal reflections and maintain signal quality. The impedance depends on trace width, spacing, and the dielectric material.
Example: In a design with a DDR4 memory interface, the signal traces need to be impedance-controlled at 50 ohms to ensure reliable data transmission.
6.2 Crosstalk Reduction
Crosstalk occurs when signals in adjacent traces interfere with each other, causing noise and performance issues. To minimize crosstalk:
- Increase spacing: Ensure adequate spacing between high-speed traces.
- Use ground planes: A solid ground plane beneath the signal layers reduces crosstalk by providing better isolation.
6.3 Termination Techniques
To reduce signal reflections in high-speed designs, use termination resistors at the ends of transmission lines. This is especially important for clock signals and high-speed data buses.
7. Thermal Management in PCB Layout
Effective thermal management is critical to maintaining the reliability and performance of a PCB, especially in high-power designs. Excessive heat can lead to component failure and reduced product lifespan.
7.1 Heat Dissipation Techniques
- Heat sinks: Attach heat sinks to high-power components to increase surface area and dissipate heat more efficiently.
- Thermal vias: Use vias to transfer heat from the top layer to internal or bottom layers.
- Copper pours: Use large areas of copper to spread heat away from high-power components.
7.2 Component Placement for Thermal Management
- Place heat-generating components like power transistors and voltage regulators near the edge of the board or in areas where airflow is available.
- Avoid placing heat-sensitive components like ICs and sensors near heat-generating components.
8. Design for Manufacturability (DFM)
Design for manufacturability (DFM) ensures that the PCB design is optimized for efficient and cost-effective production. By considering DFM during the layout process, designers can avoid costly manufacturing issues and reduce production time.
8.1 Component Sourcing
Ensure that all components used in the design are readily available from suppliers. Avoid using obsolete or difficult-to-source components that can delay production.
8.2 Design Rules Check (DRC)
Running a design rules check ensures that the PCB layout meets the manufacturer’s fabrication capabilities. This includes minimum trace width, minimum spacing, and hole sizes.

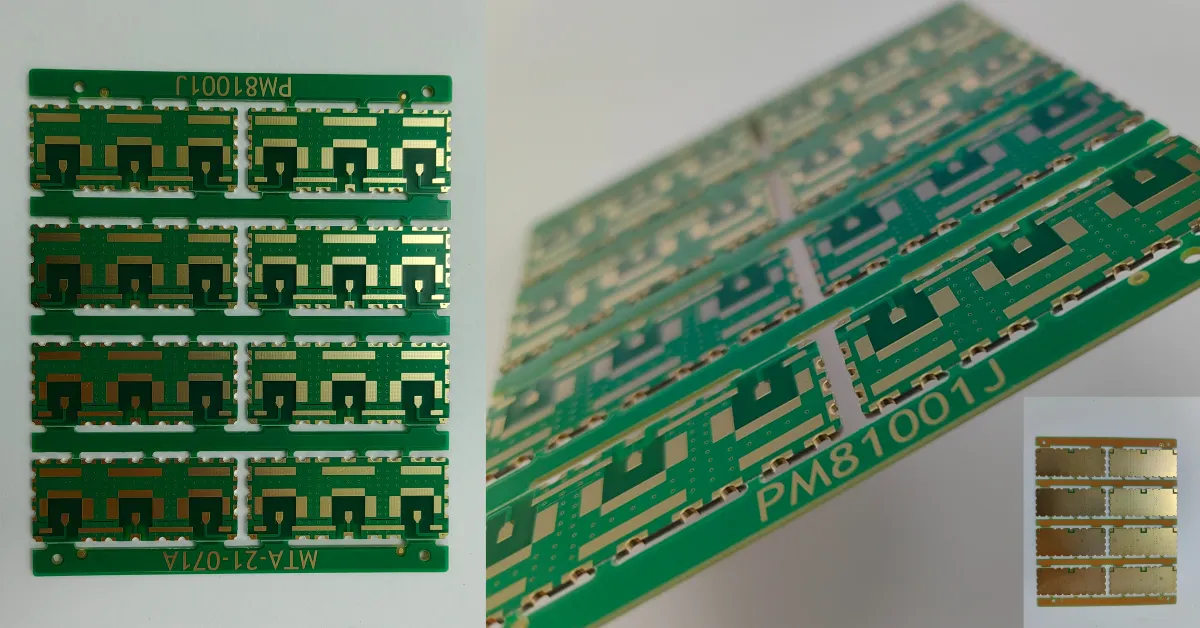

8.3 Panelization
Panelization refers to arranging multiple copies of a PCB design on a single panel to improve manufacturing efficiency. By optimizing panel usage, manufacturers can reduce waste and improve production speed
