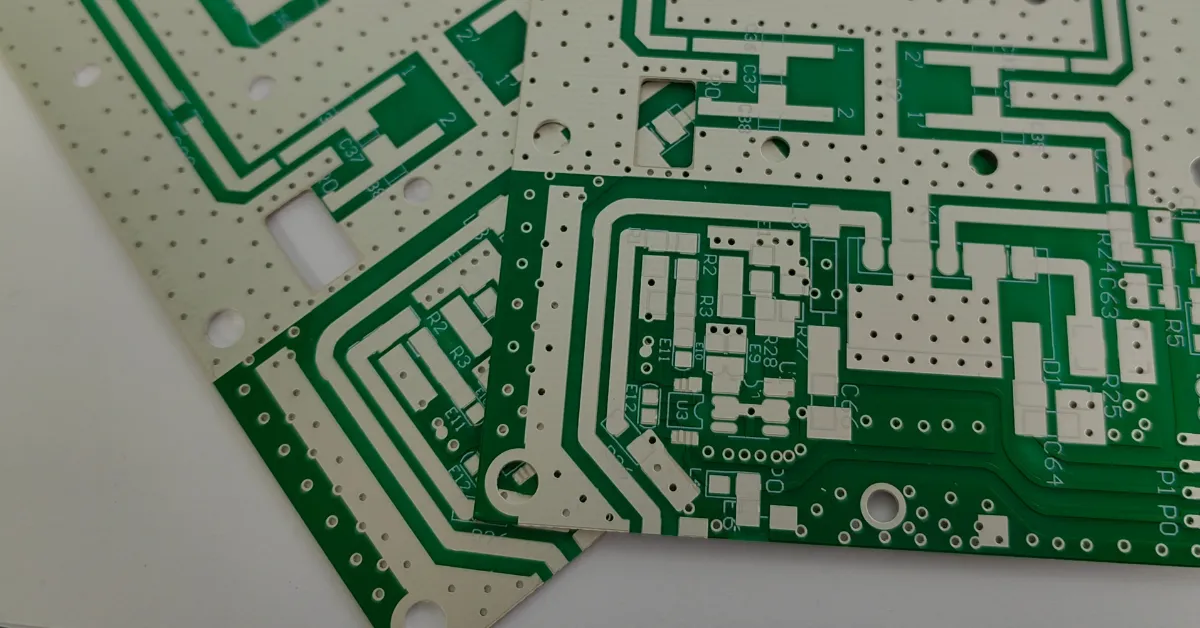

RF PCB Design Guidelines and Considerations

Designing PCBs for radio frequency (RF) applications presents unique challenges compared to standard PCB design. RF signals, typically defined as signals above 100 MHz, are sensitive to noise, impedance mismatches, and electromagnetic interference (EMI), making design intricacies crucial for optimal performance. In this guide, we will explore comprehensive RF PCB design guidelines, from component placement and trace routing to materials, grounding, and shielding, while ensuring high performance, manufacturability, and signal integrity.

1. Understanding RF PCB Design Fundamentals

RF PCBs are used in wireless communication devices, radar systems, microwave devices, and RF amplifiers. Due to the high frequencies involved, these circuits require careful attention to impedance control, grounding, and noise reduction.

1.1 Key RF PCB Terminology

• RF Signals: Signals above 100 MHz, used in wireless communication, radar, and other high-frequency applications.
• Transmission Lines: PCB traces that carry RF signals. They must maintain a constant impedance to ensure signal integrity.
• Impedance: A combination of resistance and reactance that affects the flow of alternating current (AC) in the circuit.
• Dielectric Constant (Dk): The relative permittivity of the PCB material, which affects signal speed and impedance.
• Loss Tangent (Df): The measure of signal loss as it passes through the PCB material. Lower values indicate lower signal loss.

2. PCB Material Selection for RF Designs

The choice of material for an RF PCB is critical as it influences signal speed, loss, and impedance. The dielectric constant (Dk) and loss tangent (Df) are key properties that determine how well the material will perform in RF applications.

2.1 Common RF PCB Materials

• FR-4: The most widely used PCB material, with a dielectric constant of 4.5. While cost-effective, FR-4 is generally not ideal for high-frequency RF designs due to its high Df.
• Rogers Materials: Rogers laminates, such as Rogers 4350B (Dk = 3.48, Df = 0.0037), are commonly used in RF designs due to their low dielectric constant and low loss.
• Teflon (PTFE): Teflon-based PCBs (e.g., Dk = 2.2, Df = 0.001) offer excellent high-frequency performance and minimal signal loss, ideal for microwave and mmWave designs.
• Isola Materials: Isola laminates provide stable dielectric properties at high frequencies, making them suitable for RF PCBs.

2.2 Material Selection Considerations

• Dielectric Constant (Dk): Lower Dk values allow for faster signal propagation and better impedance control, crucial in RF designs.
• Loss Tangent (Df): The loss tangent should be as low as possible to minimize signal attenuation, especially at high frequencies.
• Thermal Stability: RF designs often generate significant heat. Materials with good thermal conductivity, such as PTFE, help dissipate heat.

3. Component Placement in RF PCBs

Component placement in RF designs plays a major role in ensuring signal integrity, reducing noise, and minimizing unwanted interference. Correct placement also simplifies routing and reduces the risk of signal degradation.

3.1 General Placement Guidelines

• Short Signal Paths: Keep high-frequency signal paths as short as possible to minimize loss and reduce parasitic effects.
• Symmetry: Maintain symmetry in the placement of components to avoid unbalanced signal paths and improve performance in differential circuits.
• Power Supply Decoupling: Place decoupling capacitors as close as possible to the power pins of ICs to filter noise from the power supply.
• Isolate Sensitive Components: Place sensitive RF components (e.g., low-noise amplifiers) away from noisy components like power regulators or digital circuits.

3.2 Placement of RF-Specific Components

• Antennas: Antennas should be placed at the edge of the board with sufficient clearance to avoid interference from other components. Ensure there is a continuous ground plane underneath the antenna.
• Filters: Filters (e.g., band-pass, low-pass) should be placed close to their associated components (e.g., amplifiers) to minimize trace lengths and signal loss.
• Oscillators: Oscillators, used for clock generation in RF circuits, should be isolated from noisy components to maintain clean signal generation.

4. Trace Routing in RF PCB Design

RF trace routing is critical to maintaining signal integrity. Impedance control, trace width, spacing, and routing techniques are essential to ensure that the RF signal propagates with minimal degradation.

4.1 Controlled Impedance Traces

Impedance control is crucial for RF designs, where impedance mismatches can cause reflections, signal loss, and distortion. The characteristic impedance of a trace depends on the trace width, dielectric thickness, and PCB material.

• Microstrip Lines: These are traces on the outer layer of the PCB, with a ground plane below. The typical impedance is 50 ohms for RF designs.
• Stripline: A trace buried between two ground planes, providing better shielding from noise. Stripline is used when additional signal integrity is needed.

**Formula for microstrip impedance:**Z0=87Dk+1.41log⁡(5.98h0.8W+t)Z_0 = \frac{87}{\sqrt{Dk + 1.41}} \log \left(\frac{5.98h}{0.8W + t}\right)Z0=Dk+1.4187log(0.8W+t5.98h) Where:

• Z0Z_0Z0 = Impedance
• DkDkDk = Dielectric constant
• hhh = Height from the trace to the ground plane
• WWW = Width of the trace
• ttt = Thickness of the trace

4.2 Minimizing Signal Loss

• Minimize Via Usage: Avoid excessive use of vias in RF signal paths, as they introduce parasitic capacitance and inductance. If necessary, use blind or buried vias to reduce signal degradation.
• Avoid Right Angles: Right-angle bends in traces can cause impedance discontinuities, leading to signal reflections. Use curved or 45-degree angles instead.

4.3 Grounding and Shielding

Grounding and shielding are crucial in RF designs to prevent EMI and ensure clean signal transmission.

• Ground Planes: A solid ground plane under the RF traces provides a low-impedance return path, minimizing noise and crosstalk.
• Shielding: Sensitive RF sections, such as amplifiers or oscillators, should be shielded using metal enclosures or grounded copper pours to prevent interference.

5. Power Integrity and Grounding in RF PCBs

RF circuits are highly sensitive to power supply noise. Ensuring stable and clean power distribution is essential for maintaining the performance of RF components, such as amplifiers, mixers, and oscillators.

5.1 Power Distribution Techniques

• Power Planes: Use solid power planes to distribute power uniformly across the PCB, reducing voltage drops and improving power integrity.
• Decoupling Capacitors: Place decoupling capacitors (typically 0.01 µF and 0.1 µF) as close to the power pins of RF components as possible. This filters high-frequency noise from the power supply.

5.2 Grounding Best Practices

• Dedicated Ground Planes: Use dedicated ground planes for RF signals to provide a low-impedance return path and reduce EMI.
• Stitching Vias: For multi-layer PCBs, use stitching vias to connect ground planes between layers, minimizing ground loop noise and improving RF performance.

5.3 Power Isolation

• Power and Ground Isolation: Isolate the power and ground planes of RF and digital sections to prevent digital noise from coupling into the RF section.
• Use of Ferrite Beads: Ferrite beads can be used to filter out high-frequency noise on power lines before reaching sensitive RF components.

6. Design for Signal Integrity

Signal integrity is the quality of an electrical signal as it travels through the PCB. RF signals are particularly vulnerable to loss, distortion, and interference, which makes ensuring signal integrity a priority.

6.1 Minimizing Crosstalk

Crosstalk occurs when signals in adjacent traces interfere with each other, causing noise and signal degradation. To reduce crosstalk:

• Increase Trace Spacing: Maintain adequate spacing between RF signal traces and other traces to minimize coupling.
• Use Ground Traces: Place ground traces between high-speed signal traces to isolate them from one another and reduce crosstalk.

6.2 Reflection Control

Signal reflections occur when impedance mismatches cause the signal to reflect back towards the source, distorting the signal.

• Match Impedance: Ensure that the impedance of all transmission lines is matched with the source and load to minimize reflections.
• Termination Resistors: Use termination resistors at the ends of high-speed traces to dampen reflections.

6.3 EMI and Noise Reduction

• Minimize Loop Areas: Keep the loop area between signal and return paths as small as possible to reduce EMI.
• Use Guard Traces: Place guard traces (grounded traces) around sensitive RF signals to shield them from interference.

7. Thermal Management in RF PCB Design

Thermal management is crucial in RF designs, especially in high-power applications. Excessive heat can lead to component failure, performance degradation, and reduced signal integrity.

7.1 Heat Dissipation Techniques

Heat dissipation is essential for maintaining the reliability and performance of RF PCBs, especially in high-power designs. RF circuits generate significant heat, and improper thermal management can lead to excessive temperatures, causing signal degradation and even component failure. Implementing proper heat dissipation techniques ensures that components remain within their operational temperature range.

Thermal Vias

Thermal vias are drilled holes with conductive plating that connect the top and bottom layers (or inner layers) of the PCB, allowing heat to transfer between layers. These vias are often placed under heat-generating components, like power amplifiers, to disperse heat to a heat sink or a copper pour on the opposite side of the board.

• Example: A high-power RF amplifier generates significant heat. Thermal vias placed directly beneath the amplifier allow heat to be conducted to inner layers or the back of the PCB, where a heat sink can be mounted to dissipate the heat.

Copper Pours and Planes

Large copper areas can be used to conduct heat away from hot spots on the PCB. These areas serve as thermal pads, allowing heat to spread and reducing hot spots. Copper planes used for ground or power distribution can also act as heat spreaders.

• Example: In an RF PCB with multiple power-hungry components, a copper pour connected to the ground plane can dissipate heat by spreading it across a large area, preventing local temperature rises.

Heat Sinks

Heat sinks are external components attached to the PCB to dissipate heat more effectively. Heat sinks increase the surface area available for heat dissipation, allowing for more efficient cooling through convection and radiation.

• Example: A heat sink attached to a power amplifier can lower the operating temperature by providing additional surface area for heat dissipation. This is particularly useful in RF power designs where components operate at high currents.

Thermal Pads

Thermal pads are used in conjunction with heat sinks to improve the thermal connection between the component and the heat sink. They help fill any air gaps that could otherwise reduce the heat transfer efficiency.

• Example: A thermal pad is placed between the surface-mount RF transistor and the heat sink to ensure proper heat transfer, reducing the likelihood of overheating.

7.2 Component Placement for Thermal Management

The placement of components plays a crucial role in thermal management. Components that generate heat should be placed in such a way that allows for efficient heat dissipation, while keeping heat-sensitive components away from hot spots.

Separation of Heat-Generating Components

Place high-power RF components (e.g., power amplifiers, voltage regulators) away from heat-sensitive devices such as microcontrollers, oscillators, and RF filters. This separation helps prevent heat from affecting the performance of sensitive circuits.

• Example: A high-power RF amplifier is placed at the edge of the board near the heat sink, while the sensitive RF mixer and oscillator are located farther away to avoid thermal interference.

Airflow and Ventilation

Position heat-generating components in areas of the PCB where there is natural airflow or where airflow can be optimized, such as near vents in an enclosure. Ensure that there is sufficient clearance around these components to allow heat to dissipate.

• Example: In an RF transmitter, placing the power amplifier near an airflow path allows natural convection to cool the device, preventing thermal buildup.

Component Orientation

The orientation of components can also affect heat dissipation. Vertically mounted components generally allow for better airflow than horizontally mounted ones.

• Example: Surface-mount components like transistors or power MOSFETs in an RF circuit should be oriented to maximize exposure to airflow, aiding in heat removal.

8. Shielding and EMI Considerations

RF circuits are highly susceptible to electromagnetic interference (EMI) from both internal and external sources. EMI can distort RF signals, degrade signal integrity, and lead to compliance issues with electromagnetic compatibility (EMC) standards. Proper shielding and EMI mitigation techniques are crucial for ensuring the optimal performance of RF PCBs.

8.1 Shielding Techniques

Shielding involves placing metal enclosures or grounded metal layers around sensitive circuits to block EMI. This can be achieved using grounded metal boxes or PCB-level shielding with metal covers soldered to the board.

• Metal Shields: Metal shields, often referred to as Faraday cages, are placed over sensitive RF sections of the PCB to block EMI from external sources. They are connected to the PCB ground to provide a low-impedance path for unwanted signals.
  • Example: A metal shield is placed over the RF transmitter section of a PCB to prevent interference from nearby power electronics.
• Grounded Copper Planes: Grounded copper planes placed on PCB layers adjacent to signal traces provide additional EMI protection. Ground planes reduce noise coupling by acting as a return path for RF signals.
  • Example: A continuous ground plane under the RF signal traces minimizes electromagnetic interference from nearby high-speed digital circuits.

8.2 Proper Grounding for EMI Control

Grounding is one of the most critical aspects of EMI control in RF PCBs. A proper grounding strategy ensures that noise is directed away from sensitive circuits, reducing the likelihood of signal distortion.

• Dedicated Ground Planes: Use a dedicated ground plane for the RF section to provide a low-impedance path for high-frequency currents. This helps reduce the impact of ground loops and noise coupling.
  • Example: A separate ground plane for RF components prevents digital noise from entering the RF signal paths in a communication system.
• Ground Stitching Vias: Use multiple ground vias (also known as stitching vias) to connect the ground plane to the top and bottom layers of the PCB. This helps maintain a consistent ground potential and minimizes noise.
  • Example: Ground stitching vias placed around the perimeter of an RF amplifier provide a low-inductance return path, improving signal integrity and reducing EMI.

8.3 Crosstalk and Noise Isolation

Crosstalk occurs when signals from one trace couple into an adjacent trace, causing interference. This is especially problematic in high-frequency RF designs where small amounts of coupling can significantly affect signal quality.

• Increase Trace Spacing: Increasing the spacing between RF signal traces and other traces reduces capacitive and inductive coupling, minimizing crosstalk.
  • Example: A 2.4 GHz Wi-Fi PCB increases the spacing between RF signal traces and nearby power traces to reduce interference.
• Use Ground Traces or Guard Traces: Placing grounded guard traces between RF signal traces and high-speed digital traces helps isolate the signals and reduces the risk of interference.
  • Example: A guard trace is placed between the RF signal and clock signals in an RF receiver circuit to reduce noise coupling.

9. Design for Manufacturability (DFM) in RF PCBs

Design for Manufacturability (DFM) ensures that the RF PCB can be easily and reliably manufactured without introducing unnecessary complexity or cost. Following DFM principles during the design phase reduces the likelihood of errors during production and increases yield.

9.1 Material Availability

The availability of high-frequency materials such as Rogers or Teflon-based substrates should be considered during the design phase. Not all manufacturers stock these materials, so it’s essential to ensure that the chosen material is readily available and can be processed by the selected fabricator.

• Example: Before finalizing the design of a high-frequency RF circuit using Rogers 5880 material, confirm with the manufacturer that they can handle the specific material and provide acceptable lead times.

9.2 Component Availability

Ensure that all RF components used in the design, such as amplifiers, filters, and oscillators, are available and in production. Avoid using obsolete or hard-to-source components, as this could delay manufacturing or increase costs.

• Example: Selecting a widely available RF amplifier IC reduces the risk of production delays due to sourcing issues, ensuring the product can be manufactured on schedule.

9.3 Design Rule Check (DRC)

Perform a thorough Design Rule Check (DRC) to ensure that the layout complies with the fabricator’s capabilities. This includes checking minimum trace widths, via sizes, and spacing between components and traces.

• Example: A DRC is run on the RF PCB to ensure that all traces meet the required impedance control tolerances and that all vias are within the manufacturer’s drilling capabilities.

9.4 Panelization and Production Efficiency

Panelization involves placing multiple copies of the same PCB design on a single panel for manufacturing. This improves production efficiency and reduces material waste. Consider how the design will be panelized to optimize yield and minimize costs.

• Example: An RF communication module PCB is panelized with ten copies per panel, reducing manufacturing costs by optimizing the use of material and reducing setup times.

10. Testing and Validation of RF PCBs

After the RF PCB has been fabricated, it must undergo rigorous testing to ensure that it meets performance specifications. RF circuits are particularly sensitive to variations in manufacturing, so proper testing is critical to identifying potential issues.

10.1 S-Parameter Testing

S-parameters (scattering parameters) are used to measure how RF signals interact with the circuit. These parameters are critical in evaluating the performance of RF components such as filters, amplifiers, and antennas.

• Example: S11 and S21 are measured on an RF amplifier PCB to ensure that input reflection (S11) is minimal and that the signal is being transmitted efficiently through the circuit (S21).

10.2 Impedance Testing

Impedance testing ensures that all controlled impedance traces maintain the correct impedance throughout the RF PCB. Impedance mismatches can lead to reflections, signal loss, and degraded performance, especially in high-frequency applications. By testing the impedance of traces, designers can verify that the PCB has been fabricated to specification and will perform correctly under operational conditions.

Impedance Measurement Tools

• Time Domain Reflectometer (TDR): A TDR is one of the most commonly used tools for measuring impedance in high-frequency PCBs. It sends a signal through a trace and measures the reflections, providing insight into any impedance mismatches along the path.
  • Example: A TDR is used on an RF PCB to measure the impedance of microstrip traces designed for 50 ohms. The results reveal any impedance discontinuities, which could affect signal integrity.
• Vector Network Analyzer (VNA): VNAs are also used to measure impedance, but they are more commonly employed to analyze S-parameters in RF circuits. A VNA can measure how the impedance of a trace or component affects signal transmission and reflection over a wide frequency range.

Correcting Impedance Issues

If impedance mismatches are detected during testing, adjustments may be necessary:

• Trace width adjustments: Modify the width of the trace or the height of the dielectric material to bring the impedance back to the desired value.
• Material selection: Use a different substrate material with a lower or higher dielectric constant (Dk) to achieve the correct impedance.

11. Antenna Design and Integration

For RF applications, the antenna is one of the most critical components in ensuring effective communication. Proper design, placement, and integration of the antenna with the RF PCB are essential for optimal signal transmission and reception.

11.1 Types of Antennas for RF PCBs

• Patch Antenna: A planar antenna that is easy to integrate directly onto the PCB. Patch antennas are widely used in applications such as GPS, Wi-Fi, and cellular communications.
  • Example: A GPS module designed for 1.575 GHz uses a patch antenna printed on the PCB, requiring careful tuning to achieve optimal performance.
• Dipole Antenna: A simple antenna consisting of two conductive elements, often used in lower-frequency applications. Dipole antennas may be implemented off-PCB or as part of the PCB design.
• Monopole Antenna: A single-element antenna typically placed near the edge of the PCB, where it can radiate efficiently.
  • Example: A monopole antenna is used for a Bluetooth device operating at 2.4 GHz, requiring proper grounding and clearances for optimal signal transmission.

11.2 Antenna Placement and Clearance

• Clearance from Ground Plane: To avoid detuning the antenna, maintain adequate clearance between the antenna and the ground plane. In many designs, the ground plane is restricted beneath the antenna to minimize interference.
  • Example: In a Wi-Fi PCB, the patch antenna is placed at the edge of the board with a restricted ground plane beneath it to improve radiation efficiency.
• Positioning on the PCB: The antenna should be placed at the periphery of the PCB to minimize interference from other components. Components generating noise, such as oscillators or power circuits, should be kept away from the antenna to avoid signal degradation.

11.3 Antenna Matching and Tuning

Antenna performance is often optimized through impedance matching, which ensures that the antenna can efficiently transmit or receive RF signals. Impedance mismatches between the antenna and the transmission line lead to reflections, reducing signal strength.

• Matching Networks: Use matching networks consisting of capacitors, inductors, or both to tune the antenna to the desired frequency and optimize impedance matching.
  • Example: A matching network is added to a PCB with a 2.4 GHz patch antenna to ensure that the impedance at the antenna matches the 50-ohm transmission line for maximum signal efficiency.
• Tuning Considerations: Antennas must often be tuned to account for the specific environment in which the device will operate. Tuning is accomplished by adjusting the length, width, or shape of the antenna elements, or by adjusting the matching network.
  • Example: A 5G PCB design with an integrated millimeter-wave antenna is tuned using a network analyzer to ensure optimal performance at 28 GHz.

12. RF Filters and Matching Networks

RF filters and matching networks are essential components in RF PCBs, used to select desired frequencies, reject unwanted signals, and ensure impedance matching between different stages of the RF circuit.

12.1 Types of RF Filters

• Low-Pass Filters: These allow signals below a certain cutoff frequency to pass while attenuating higher-frequency signals. Low-pass filters are commonly used to remove high-frequency noise from power supplies or RF signal paths.
  • Example: A low-pass filter is added to the output of a power amplifier to suppress harmonic distortion and ensure that only the fundamental frequency is transmitted.
• Band-Pass Filters: These filters allow only a specific range of frequencies to pass while rejecting signals outside this range. Band-pass filters are used to isolate specific communication channels or frequencies.
  • Example: A band-pass filter is integrated into a 2.4 GHz Bluetooth PCB to ensure that only the desired communication frequency passes through, reducing interference from other signals.

12.2 Impedance Matching Networks

Matching networks are used to match the impedance between different parts of the RF circuit, such as between the antenna and the transmission line, or between the amplifier and the antenna. Matching ensures maximum power transfer and minimizes signal reflections.

• L-C Matching Networks: These consist of inductors (L) and capacitors (C) configured to achieve the desired impedance match. They are commonly used in RF circuits for tuning purposes.
  • Example: An L-C matching network is used between an RF power amplifier and the antenna to ensure maximum power is transmitted without signal loss.
• Baluns: A balun (balanced to unbalanced transformer) is used to convert balanced signals to unbalanced ones or vice versa. Baluns are critical in designs where differential signals are used and need to interface with single-ended circuits.
  • Example: A balun is used in a 433 MHz RF communication system to convert the differential signal from the antenna into a single-ended signal for processing by the receiver.

12.3 Filter Design Considerations

• Q Factor: The quality factor (Q) of a filter determines its selectivity. Higher Q values indicate narrower bandwidth and sharper roll-off, while lower Q values provide wider bandwidth.
  • Example: A narrow-band band-pass filter with a high Q factor is designed for a 1.575 GHz GPS receiver to ensure minimal interference from nearby frequencies.
• Insertion Loss: Filters inevitably introduce some signal loss, known as insertion loss. Minimizing insertion loss is critical in RF designs to preserve signal strength.
  • Example: A low-insertion-loss filter is used in a microwave RF system operating at 10 GHz to ensure that the signal remains strong after passing through the filter.

13. Testing and Validation of RF PCBs

Testing and validating an RF PCB is essential to ensure that it meets performance specifications and operates reliably in its intended environment. RF circuits are particularly sensitive to variations in manufacturing and environmental conditions, so thorough testing is crucial.

13.1 S-Parameter Measurements

S-parameters (scattering parameters) describe how RF signals are transmitted and reflected at the ports of a network. S-parameter measurements are fundamental in evaluating the performance of RF circuits, such as amplifiers, filters, and antennas.

• S11 (Reflection Coefficient): Measures the amount of signal reflected back to the source, indicating impedance matching at the input.
  • Example: An S11 measurement is performed on a 2.4 GHz antenna to ensure minimal reflection, indicating that the antenna is properly matched to the transmission line.
• S21 (Insertion Loss): Measures how much of the signal is transmitted through the network, indicating how well the RF circuit is passing the signal.
  • Example: An S21 measurement is performed on an RF amplifier to evaluate the gain and signal transmission characteristics across the operating frequency range.

13.2 Power Output and Gain Testing

Power output and gain testing verify that the RF circuit is delivering the correct amount of power to the load (e.g., antenna) and that amplifiers are providing the expected signal amplification.

• Power Amplifier Gain: Measure the gain of the power amplifier to ensure that it meets design specifications and provides the required signal boost.
  • Example: A power amplifier in a 5G communication system is tested to ensure that it provides the correct gain at frequencies of 28 GHz.
• Output Power: Measure the output power of the RF circuit to confirm that it meets regulatory limits and design goals.
  • Example: The output power of a Wi-Fi transmitter PCB is measured to ensure compliance with FCC regulations for 2.4 GHz operation.

13.3 Thermal Testing (Continued)

Thermal testing ensures that the PCB can handle varying thermal loads, particularly for high-power RF components such as power amplifiers, voltage regulators, and RF switches. Heat can significantly affect the performance and lifespan of these components, and improper thermal management can lead to failure. Thus, thermal testing is critical for validating the design.

Temperature Cycling

Temperature cycling involves exposing the PCB to a series of high and low temperature extremes to simulate the real-world conditions the PCB might experience during its lifetime. This helps identify any potential reliability issues due to thermal stress.

• Example: An RF power amplifier PCB is subjected to a temperature cycling test, where it is alternated between -40°C and 85°C to ensure it can withstand outdoor environmental conditions in communication towers.

Thermal Shock

Thermal shock testing rapidly transitions the PCB between extreme hot and cold temperatures to evaluate how the materials and components react to sudden temperature changes. This is particularly important for applications in aerospace and automotive industries where rapid temperature fluctuations can occur.

• Example: A satellite communication PCB undergoes thermal shock testing by being rapidly transitioned from -60°C to +100°C to ensure that the materials do not crack or warp under extreme conditions.

Power Dissipation Measurement

Measuring power dissipation helps ensure that the PCB design can effectively dissipate heat generated by high-power components without causing overheating. This can be done by operating the circuit under full load and using thermal sensors or cameras to monitor temperature changes.

• Example: In a high-power RF transmitter, the total power dissipation is measured, and the temperature rise is recorded to ensure that the heat sinks and thermal vias are adequately dissipating heat across the board.

Long-Term Thermal Soak

This test involves operating the RF PCB under full load in a controlled environment for an extended period to observe its thermal behavior and stability over time. The goal is to identify any long-term thermal fatigue or component degradation.

• Example: A military radar system PCB is placed in a thermal chamber and operated continuously at 75°C for 1,000 hours to verify that the thermal management design can support long-term operation without failure.

Thermal Profiling

Thermal profiling involves measuring the temperature at various points on the PCB using thermocouples or infrared thermal cameras to create a thermal map of the board. This helps designers identify hot spots or areas where heat is not being adequately dissipated.

• Example: A thermal profile of an RF amplifier PCB is created to identify potential overheating in certain areas. The thermal map reveals that the vias under the amplifier need to be increased to improve heat dissipation.

Junction Temperature Monitoring

The junction temperature of semiconductors is a critical factor in determining the reliability and performance of components like RF transistors or power amplifiers. Monitoring the junction temperature ensures that the components are operating within their safe temperature range.

• Example: In a high-frequency RF transmitter, the junction temperature of the output stage transistors is monitored during thermal testing to ensure it does not exceed the manufacturer’s specified limits, which could lead to failure.

14. Environmental Testing

RF PCBs often need to operate in challenging environments, which means they must be tested for various environmental factors beyond temperature. Environmental testing ensures that the PCB can maintain performance in harsh conditions, such as humidity, dust, and vibration.

14.1 Humidity Testing

Humidity can affect the electrical properties of the PCB material, potentially leading to changes in signal impedance, increased leakage currents, or corrosion of exposed copper. Humidity testing evaluates the board’s performance under conditions of high moisture.

• Example: An RF communication PCB designed for outdoor applications is placed in a humidity chamber set at 90% humidity and 40°C for several hours. The impedance of critical signal paths is measured before and after the test to check for degradation.

14.2 Vibration Testing

Vibration testing simulates the mechanical stresses that the PCB might experience during transportation, installation, or operation. This is especially important for RF PCBs used in aerospace, automotive, and industrial applications, where mechanical shocks and vibrations can cause solder joints to fail or components to loosen.

• Example: An RF PCB for a vehicle communication system is subjected to a vibration test using a shaker table, simulating the vibrations experienced during driving. After testing, the PCB is inspected for solder joint integrity and component movement.

14.3 Dust and Contaminant Exposure

RF PCBs in outdoor or industrial environments may be exposed to dust, dirt, or other contaminants that can affect performance. Testing under these conditions helps ensure that the PCB can operate reliably in dirty environments.

• Example: A weatherproof RF module is tested by exposing it to a dust chamber, simulating desert-like conditions, to verify that its conformal coating and sealing techniques adequately protect the sensitive RF components from contamination.

15. Compliance and Regulatory Testing

In addition to functionality and environmental testing, RF PCBs must often pass regulatory testing to ensure they meet legal requirements for electromagnetic compatibility (EMC), radiation limits, and safety standards. These tests ensure that the PCB complies with national and international regulations.

15.1 EMC Testing

Electromagnetic compatibility (EMC) testing ensures that the PCB does not emit excessive electromagnetic interference (EMI) and is immune to interference from other devices. EMC testing is required by regulatory bodies like the FCC (Federal Communications Commission) in the U.S. or CE in Europe.

• Example: An RF PCB for a wireless communication device is placed in an anechoic chamber for EMC testing to ensure that it does not emit radio interference beyond acceptable levels and that it is immune to external interference sources.

15.2 Radiated Emissions Testing

Radiated emissions testing measures the amount of electromagnetic radiation emitted by the PCB. RF designs, in particular, must meet strict radiated emissions standards to prevent interference with other communication systems.

• Example: A 5G RF module undergoes radiated emissions testing in a certified lab, where measurements are taken across a wide frequency spectrum to ensure that the module complies with international regulations for radiation levels.

15.3 Safety Certifications

For some RF applications, particularly those involving consumer electronics or medical devices, safety certifications are required to ensure that the PCB is safe to use and does not pose a risk of electrical shock, fire, or radiation exposure.

• Example: An RF PCB designed for use in a medical imaging system is tested for electrical safety, including dielectric breakdown and leakage current, to ensure that the device meets the strict safety standards required for medical applications.

16. Conclusion

Designing RF PCBs requires careful attention to material selection, component placement, trace routing, thermal management, and testing to ensure optimal performance and reliability. By following the guidelines outlined above, engineers can create RF designs that minimize signal loss, prevent EMI, and operate efficiently across a wide range of environmental conditions.

From the selection of low-loss materials like Rogers laminates to the implementation of proper grounding and shielding techniques, every aspect of RF PCB design impacts the final product’s performance. Thermal management, including the use of thermal vias and heat sinks, ensures that high-power RF components stay within their operational temperature range, while extensive testing—including impedance, thermal, environmental, and compliance testing—validates the design.

By adhering to these design principles and considerations, RF PCBs can meet the stringent requirements of modern communication, radar, and microwave systems, providing reliable and efficient performance in even the most demanding applications.
