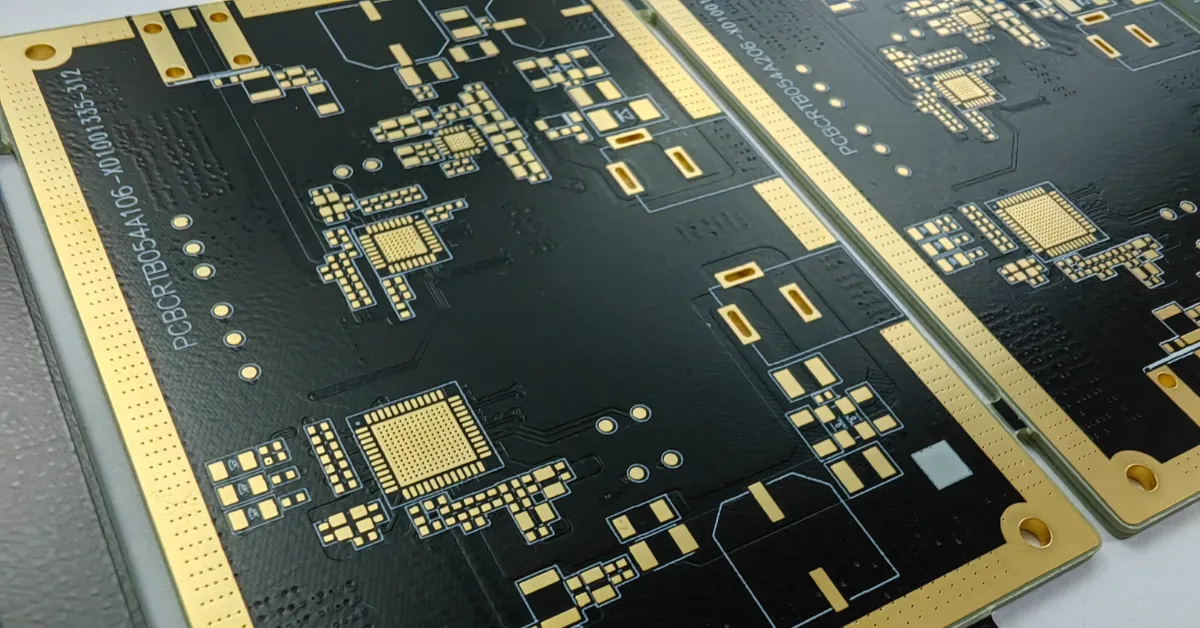

Ensuring precision and quality in the manufacturing of high-frequency PCBs (HF PCBs) is critical for maintaining signal integrity at GHz frequencies. The following processes and techniques are implemented to achieve high precision:
1. Material Selection and Verification
- Use of high-performance substrates like Rogers, Taconic, and Arlon materials that offer stable dielectric constants (Dk) and low loss tangents (Df). Materials are thoroughly tested for dimensional stability, thickness uniformity, and electrical properties before production to ensure they meet design requirements.
- Incoming material inspection is performed to check for moisture absorption, surface roughness, and impurities, which can degrade signal performance.
2. Precise Impedance Control
- Maintaining the specified impedance (e.g., 50-ohm) is critical for HF PCB performance. Factors like trace width, copper thickness, and dielectric thickness are tightly controlled. Impedance modeling and simulation tools (such as Ansys HFSS, Keysight ADS) are used to predict and optimize impedance during design.
- After production, impedance testing using Time Domain Reflectometry (TDR) or Vector Network Analyzers (VNA) ensures the board meets the required impedance tolerance.
3. Advanced Etching Processes
- Laser Direct Imaging (LDI) and chemical etching techniques are used to achieve precise control over trace dimensions. The high frequencies of HF PCBs require narrower and more accurately defined traces to minimize signal loss and crosstalk.
- Automated Optical Inspection (AOI) checks for defects in the copper traces, ensuring consistency with the design specifications.
4. Surface Roughness Control
- Copper surface roughness plays a major role in signal loss at high frequencies. HF PCB manufacturers use low-profile copper foils with minimal roughness to reduce skin effect losses, which are more pronounced at GHz frequencies.
- Measuring and controlling the roughness of the copper surface during the production process is essential for minimizing insertion loss and maintaining signal integrity.
5. Precise Layer Alignment (Registration)
- For multilayer PCBs, the alignment of internal layers must be highly accurate to prevent signal cross-talk and ensure the correct routing of signals. X-ray inspection systems are used during lamination to check for proper registration of each layer.
- Misalignment can cause shifts in transmission lines and affect the performance of antennas, which are critical in high-frequency circuits.
6. Drilling Accuracy and Via Control
- Microvias, blind vias, and buried vias are commonly used in HF PCBs to maintain signal paths. Laser drilling ensures precise hole diameters and via placement, which is crucial for maintaining low inductance and high signal integrity in high-frequency designs.
- Plating thickness inside vias is tightly controlled to ensure consistent electrical conductivity.
7. Thermal Management
- Effective thermal management is critical to prevent material expansion or warping, which can affect the physical dimensions of the board and the consistency of high-frequency signal transmission. Materials with a low coefficient of thermal expansion (CTE), such as Rogers RO4350B, are selected to minimize thermal issues.
- Thermal cycling tests are performed to ensure that the board maintains its integrity under varying temperature conditions, especially in industries like automotive and military.
8. Surface Finish for Signal Integrity
- ENIG (Electroless Nickel Immersion Gold) and ENEPIG are commonly used surface finishes for HF PCBs. These finishes provide smooth surfaces with low electrical resistance, critical for ensuring consistent signal transmission.
- Surface finish uniformity is checked to avoid variations that could impact signal transmission, especially in high-frequency circuits.
9. Final Testing and Inspection
- Functional testing is done under simulated operating conditions, checking for signal integrity, return loss, insertion loss, and signal attenuation using VNAs.
- Environmental stress tests, including thermal cycling and humidity testing, are performed to ensure the PCB can handle real-world operating conditions without degradation in performance.
By implementing these processes, HF PCB manufacturers ensure high precision in material selection, trace design, surface roughness, and thermal management, leading to reliable high-performance boards for critical RF, microwave, and millimeter-wave applications.
