At HF PCB PRO, quality is the cornerstone of our operations. We are dedicated to delivering high-frequency PCBs that meet and exceed the expectations of our customers across diverse industries. Our commitment to quality is reflected in every aspect of our manufacturing process, from initial design to final delivery.
HF PCB  PRO  have different standard management systems correlated to the relevant different industries, like Automotive IATF16949, Aeronautics AS9100, Medical ISO13485, Communication TL9000, and Health OHSAS18001. Our factory has acquired ISO 9001, and ISO14001. 5S management system and Lean and Six Sigma quality system are adopted.Inspection of products is strictly conducted in compliance with internationally recognized workmanship standards(IPC-600G class 2 and IPC-6012B class 2 standard). Also can completely meet IPC class 3 according to customer product requirements.

HF PCB  PRO have obtained certification including clients from the US and Canada and IPC requirements are very familiar to all of them. We have different standard management systems correlated to the relevant different industries, like Automotive IATF16949, Aeronautics AS9100, Medical ISO13485, Communication TL9000, and Health OHSAS18001. Our factory has acquired ISO 9001, and ISO14001.

5S management system and Lean and Six Sigma quality system are adopted.

Inspection of products is strictly conducted in compliance with internationally recognized workmanship standards(IPC-600G class 2 and IPC-6012B class 2 standard). Also can completely meet IPC class 3 according to customer product requirements.

PCB Reliability Testing and Inspections

  1. DFM Check Comprehensive design review to ensure manufacturability and reliability.

  2. 100% Electrical and AOI Inspection . Electrical testing for connectivity and shorts. Automated Optical Inspection for surface defects.

  3. Visual Inspection Detects surface defects, warping, and twisting. Ensures dimensional compliance.

  4. Dimensional Inspection Verifies hole sizes, PCB profiles, and alignment.±0.05mm tolerance AOI dimensional check if required.

  5. Microsection Inspection Cross-sectional analysis for copper thickness, PTH integrity, and layer bonding.

  6. Solderability Test Evaluates solder finish at 245 ± 5℃ for 3-5 seconds.

  7. Thermal Test Tests thermal resilience at 288 ± 5℃ for 10 seconds to detect delamination.

  8. Adhesion and Peel Tests Tape test for coating adhesion. Peel strength test for conductor bonding.

  9. Impedance Testing Verifies controlled impedance for signal integrity.

  10. IPC Compliance Inspections adhere to IPC-A-600 Class 2 and Class 3 standards.

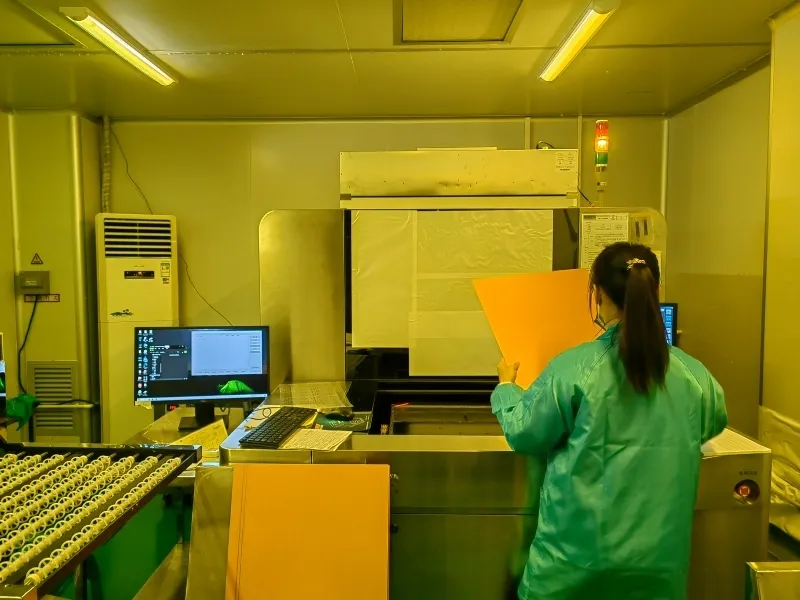

HF PCB PRO 800×600px 54 HF PCB Pro
HF PCB PRO 800×600px 58 HF PCB Pro

PCB Assembly Reliability Testing

  1. DFM Check Ensures manufacturability and design accuracy.

  2. 100% AOI Detects soldering and component placement defects.

  3. Component Inspection. Verifies correctness and orientation of all components.

  4. Visual Inspection Identifies surface and soldering defects.

  5. X-Ray for BGA Confirms solder joint integrity in hidden connections.

  6. ICT (In-Circuit Test) Checks circuit integrity and component functionality.

  7. FCT (Functional Test) Simulates real-world conditions to verify assembly performance.

  8. IPC Compliance Inspected to IPC-A-610 Class 2 and Class 3 standards.

  9. Original Components Guarantee Ensures all ICs are new and authentic.

Quality Objectives

  • Maintain a defect rate of less than 0.1% for all delivered PCBs.
  • Ensure on-time delivery for 98% of customer orders.
  • Achieve 100% compliance with customer specifications and industry standards.

Our Commitment to Excellence

At HF PCB PRO, quality is not just a policy but a commitment that drives every decision we make. Through rigorous quality assurance and a relentless focus on customer satisfaction, we aim to be a trusted partner in  PCB manufacturing, delivering excellence in every project.
