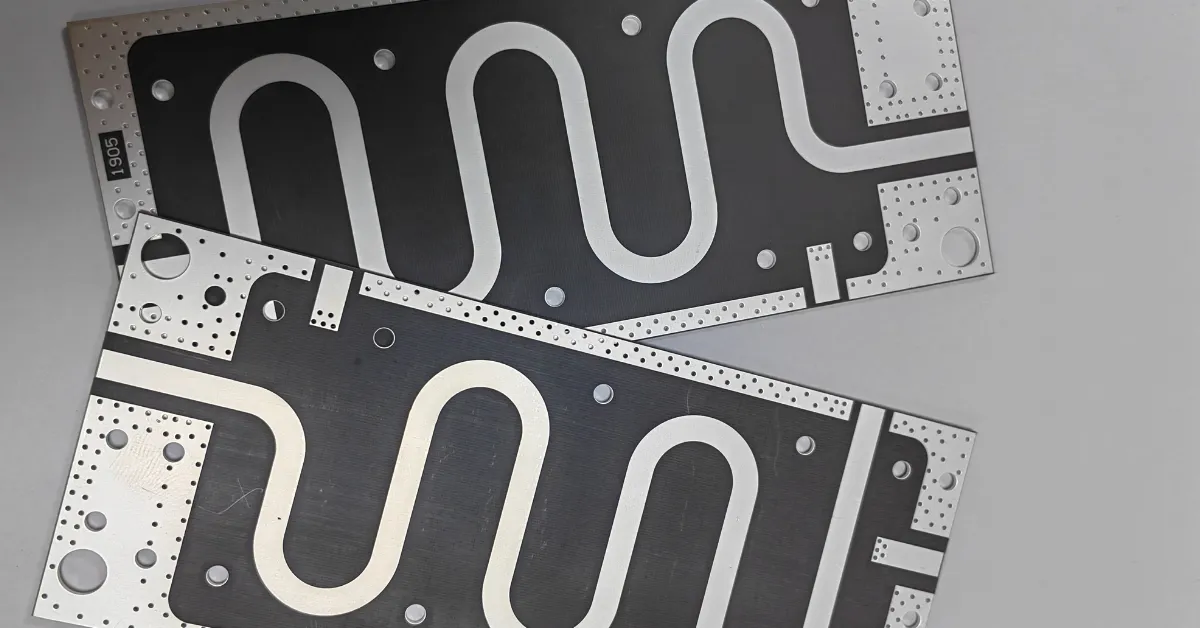

High-Frequency (HF) Printed Circuit Boards (PCBs) are critical components in industries requiring efficient signal transmission, such as telecommunications, aerospace, automotive radar, satellite systems, and RF (Radio Frequency) applications. For these applications, regular PCB materials (like FR-4) often fall short because they introduce significant signal loss and interference. Instead, specialized HF PCB materials are used to ensure low loss, controlled impedance, and stable electrical properties over a broad frequency range.
Here’s a detailed look at the types of HF PCB materials, their manufacturers, and some specific product models that are widely used in RF, microwave, and millimeter-wave applications.
Key Properties of HF PCB Materials
HF PCB materials must have the following characteristics:
- Low Dielectric Constant (Dk): This ensures minimal signal distortion and allows for faster signal propagation.
- Low Dissipation Factor (Df): A lower Df means reduced signal loss, critical for maintaining signal integrity at high frequencies.
- Stable Electrical Performance: The material should maintain consistent properties over a wide range of temperatures and frequencies.
- Thermal Stability: HF PCB materials need to handle the heat generated by high-speed and high-power devices.
- Low Moisture Absorption: Moisture can significantly affect the dielectric properties, making low absorption materials essential in RF environments.
Popular HF PCB Materials and Manufacturers
The table below provides an overview of the most commonly used HF PCB materials, their manufacturers, and their primary characteristics:
| Material | Manufacturer | Dielectric Constant (Dk) | Dissipation Factor (Df) | Tg (°C) | Applications | Features |
|---|---|---|---|---|---|---|
| RO4350B | Rogers Corporation | 3.48 | 0.0037 | 280 | RF circuits, microwave communication | Low loss, easy processing, low-cost alternative to PTFE |
| RO3003 | Rogers Corporation | 3.00 | 0.0013 | 200 | Microwave, satellite, aerospace | PTFE-based, ceramic-filled, excellent thermal stability |
| TLY-5 | Taconic | 2.20 | 0.0009 | 327 | Antennas, satellite communication | Ultra-low loss, good thermal properties |
| RF-35 | Taconic | 3.50 | 0.0018 | 300 | RF circuits, military communication | Good cost-performance balance, low loss |
| Astra® MT77 | Isola Group | 3.00 | 0.0017 | 200 | Automotive radar, aerospace, RF applications | Thermoset material, stable across wide temperatures |
| AD255C | Arlon | 2.55 | 0.0015 | 260 | RF circuits, military systems | Low Dk and Df, thermally stable, easy to process |
| I-Tera® MT40 | Isola Group | 3.38 | 0.0028 | 200 | 5G, high-speed digital applications | Low loss, good for high-speed digital and RF designs |
| RXP-4 | Panasonic | 3.48 | 0.0022 | 260 | 5G, RF front-end modules | Low loss, ideal for high-frequency designs |
| Megtron 6 | Panasonic | 3.40 | 0.002 | 175 | High-speed routers, data servers | Excellent high-speed signal transmission |
Detailed Description of HF PCB Materials
- Rogers Corporation Rogers is a pioneer in high-frequency PCB materials, especially for RF and microwave applications. Their RO4000 and RO3000 series materials are known for their low Dk, low Df, and ease of processing, making them suitable for a variety of high-performance designs.
- RO4350B: Widely used in cellular base stations, automotive radar, and microwave circuits, this laminate offers a low Dk and very low Df, making it a cost-effective alternative to PTFE-based materials.
- RO3003: Known for its excellent electrical stability, this material is used in high-frequency designs like satellite communications and radar systems.
- Taconic Taconic offers a variety of PTFE-based laminates with ceramic fillers to improve performance. Their laminates are highly favored for microwave and RF circuits because of their excellent electrical and thermal characteristics.
- TLY-5: A material with a very low Dk, ideal for satellite antennas and military communication systems that require minimal signal loss over long distances.
- RF-35: This material provides a good balance between performance and cost, making it suitable for RF circuits where high electrical performance is required without compromising the budget.
- Isola Group Isola focuses on producing high-quality PCB materials for high-speed digital and RF applications. Their materials, such as the Astra® MT77 and I-Tera® MT40, are recognized for their thermal stability and excellent signal transmission properties.
- Astra® MT77: Designed for automotive radar and aerospace applications, this material offers low loss and stable performance across a broad temperature range, making it suitable for harsh environments.
- I-Tera® MT40: Used in 5G infrastructure and high-speed routers, this laminate provides low loss and excellent high-frequency characteristics, ideal for both digital and RF designs.
- Arlon Arlon’s materials are known for their low dielectric loss and thermal stability. The AD255C laminate is widely used in RF circuits, military systems, and wireless infrastructure, where reliability is key.
- AD255C: This material combines low Dk and Df with good thermal properties, making it ideal for military radar systems and advanced communication networks.
- Panasonic Panasonic’s Megtron 6 and RXP-4 laminates are used in 5G networks, high-speed routers, and data centers, where the need for high-speed signal transmission is critical.
- RXP-4: With its low Dk and Df, RXP-4 is tailored for RF front-end modules and other high-frequency designs where high performance and low signal loss are necessary.
- Megtron 6: Known for excellent signal integrity, Megtron 6 is widely used in high-speed routers and servers where bandwidth and speed are key.
Selection Criteria for HF PCB Materials
When choosing an HF PCB material, engineers must consider various factors to match the material’s properties with the application’s needs:
- Frequency Range: Higher frequency applications (above 10 GHz) often require materials like PTFE or ceramic-filled laminates due to their low Dk and Df.
- Thermal Management: For applications with high power dissipation, such as power amplifiers or radar systems, materials with high thermal conductivity and stability, like Astra® MT77, are crucial.
- Manufacturability: Some materials, such as PTFE-based laminates, require more advanced manufacturing techniques, increasing cost and complexity. In contrast, materials like RO4350B offer easier processing while still delivering high performance.
- Cost Considerations: While high-performance materials like PTFE offer superior properties, they can be expensive. Alternatives like hydrocarbon ceramic laminates offer a good balance between cost and performance, especially in 5G and RFID applications.
Conclusion
Choosing the right HF PCB material is critical to the success of high-frequency applications in telecommunications, aerospace, automotive radar, and more. Each material has its specific advantages, from low dielectric loss to thermal stability, and understanding these properties helps ensure optimal performance in real-world environments. Manufacturers like Rogers, Taconic, Isola, Arlon, and Panasonic continue to develop innovative solutions that meet the growing demand for high-performance PCB materials in advanced technologies like 5G, automotive radar, and satellite communication.
By considering the dielectric constant, dissipation factor, and thermal stability of these materials, engineers can design PCBs that offer better signal integrity, lower power loss, and improved overall performance.
